Solar Energy

Centralized 1+X Modular Inverter3MW Centralized Inverter350kW String InverterSubstation(800/1140V)DC Combiner Box (24 in 1)

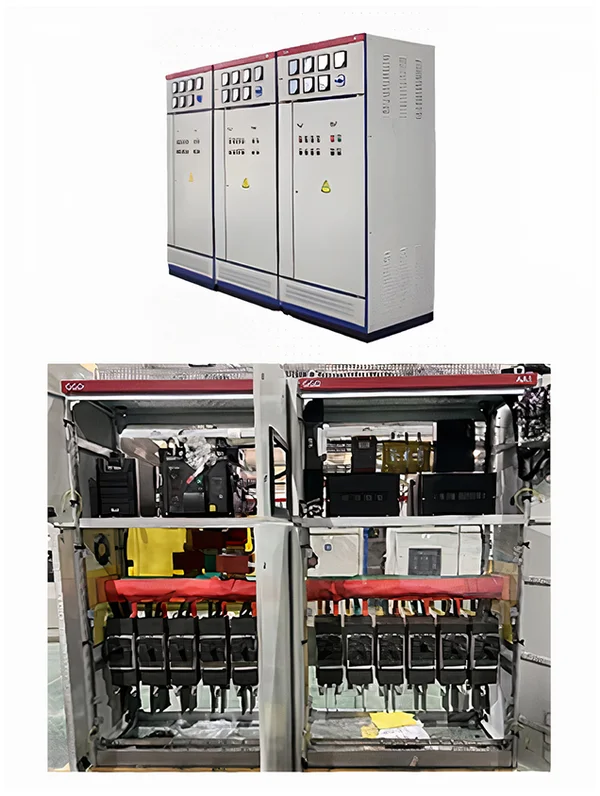

Substation(800/1140V)

Pain Points in the Application Scenario

As the grid connection scale of photovoltaic arrays increases, the breaking capacity of 800V molded case systems reaches a bottleneck. The 800V AC system has protection blind spots in IT grounding fault protection.

Value of the Solution

The ultra-high breaking capacity design significantly enhances transformer system safety. It safely isolates grounding faults in 800V transformer IT grounding systems.

QuiSure Solution

NDM3A-250 Series AC MCCB, Nader

NDM3A-250 AC MCCB

AC MCCB with rated current options: 32A, 40A, 50A, 63A, 80A, 100A, 125A, 140A, 160A, 180A, 200A, 225A, 250A. Rated voltage: AC550V, AC600V, AC690V, AC800V, AC1000V. 3 poles. Rated ultimate short-circuit breaking capacity: 12kA, 30kA, 35kA, 36.5kA, 42kA, 50kA. Certifications: CCC, CB, CE, TUV.

NDM3A-400 Series AC MCCB, Nader

NDM3A-400 Series AC MCCB, Nader

AC MCCB with rated currents of 225A, 250A, 315A, 350A, and 400A. Rated voltages: AC550V, AC600V, AC690V, AC800V, AC1000V. 3 poles. Rated ultimate short-circuit breaking capacities: 12kA, 30kA, 35kA, 42kA, 50kA. Certified by CCC, CB, CE, TUV.

NDW3-4000 Series AC ACB, Nader

NDW3-4000 AC ACB

AC ACB with rated current options: 800A, 1000A, 1250A, 1600A, 2000A, 2500A, 3200A, 3600A, 4000A. Rated operational voltage: AC220/230/240, AC380/400, AC415, AC440/480, AC660/690, AC800, AC1000, AC1140, AC1380, AC1500. Available in 3P, 4P. Rated limit short-circuit breaking capacity: 60kA, 75kA, 85kA, 100kA. Certifications: CCC, CB, CE, TUV.

VPH750-25 Series Type 1 AC SPD, VOZWEI

VPH750-25 Series Type 1 AC SPD, VOZWEI

VPH750-25 is a high-voltage Type 1 AC SPD designed for robust lightning protection. Supporting Uc up to 750V AC, it handles extreme surges with an Iimp of 25 kA (10/350 μs). Featuring a protection level of Up ≤ 3.5 kV, it is fully EN/IEC 61643-11 compliant. Ideal for heavy-duty industrial and renewable energy systems requiring maximum durability.

Related products

NDW3-4000 Series AC ACB, Nader

NDW3-4000 Series AC ACB, Nader

AC ACB with rated current options: 800A, 1000A, 1250A, 1600A, 2000A, 2500A, 3200A, 3600A, 4000A. Rated operational voltage: AC220/230/240, AC380/400, AC415, AC440/480, AC660/690, AC800, AC1000, AC1140, AC1380, AC1500. Available in 3P, 4P. Rated limit short-circuit breaking capacity: 60kA, 75kA, 85kA, 100kA. Certifications: CCC, CB, CE, TUV.
NDW3-2500 Series AC ACB, Nader

NDW3-2500 Series AC ACB, Nader

AC ACB with rated current options: 630A, 800A, 1000A, 1250A, 1600A, 2000A, 2500A. Rated operational voltage: AC220/230/240V to AC1500V. Available in 3P and 4P configurations. Rated limit short-circuit breaking capacity: 50kA to 85kA. Certified by CCC, CB, CE, TUV.
NDM5-400V Series AC MCCB, Nader

NDM5-400V Series AC MCCB, Nader

AC MCCB with rated currents of 250A, 320A, 400A and rated voltages of AC800V, AC1000V. Available in 3 poles. Rated ultimate short-circuit breaking capacities of 35kA and 50kA. Certified by CCC, CE, and TUV.
NDM3G-400V Series AC Disconnectors, Nader

NDM3G-400V Series AC Disconnectors, Nader

AC Disconnectors, 400A rated current, AC1140V rated voltage, 3 poles. Certified by CCC, CB, CE, TUV.
NDM3Z-250V Series DC MCCB, Nader

NDM3Z-250V Series DC MCCB, Nader

DC MCCB with rated currents of 125A, 140A, 160A, 180A, 200A, 225A, and 250A. Rated voltages: DC1000V, DC1500V. Available in 2P and 3P configurations. Rated ultimate short-circuit breaking capacity: 20kA. Certified by CCC, CB, CE, and TUV.
