Solar Energy

Centralized 1+X Modular Inverter 3MW Centralized Inverter 350kW String Inverter Substation(800/1140V)DC Combiner Box (24 in 1)

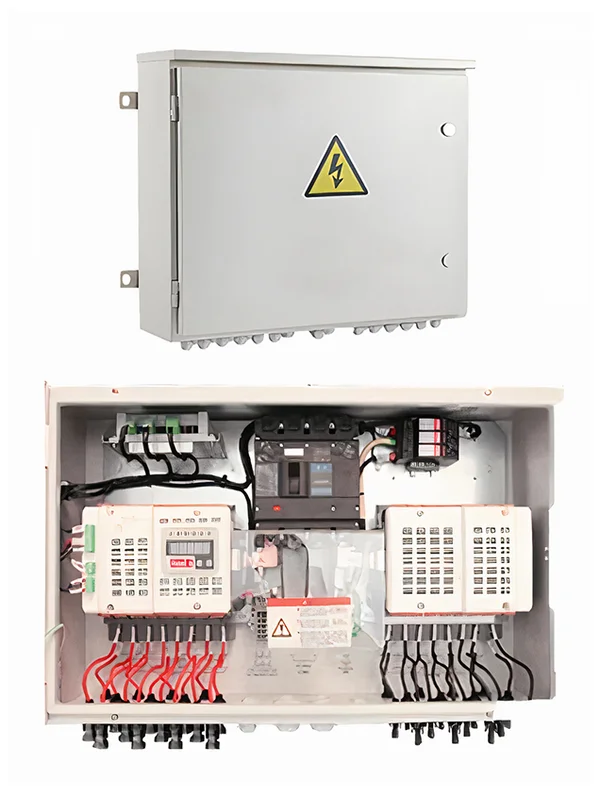

DC Combiner Box (24 in 1)

Pain Points in the Application Scenario

The 1500V DC circuit breaker with a 4P configuration is excessively wide. The circuit breaker is unsafe for single-pole interruption in the event of DC grounding faults.

Value of the Solution

The product saves 40% of the combiner box’s horizontal space, significantly reducing the sheet metal costs of the enclosure. It eliminates the safety risks of single-pole disconnection under grounding fault conditions, improving the continuous fault-free operation capability of power stations.

QuiSure Solution

NDM3Z-630V Series DC MCCB, Nader

NDM3Z-630V Series DC MCCB, Nader

DC MCCB with rated currents of 400A, 450A, 500A, and 630A, and a rated voltage of DC1500V. Available in 2 poles. Rated ultimate short-circuit breaking capacities of 15kA and 20kA. Certified with CCC, CB, CE, and TUV.

NDG3VH-315 Series DC Disconnectors, Nader

NDG3VH-315 Series DC Disconnectors, Nader

DC Disconnectors with rated operational current Ie 315A. Rated operational voltage Ue: DC1000/1500V. Available in 2P and 4P configurations. Certified by CCC, CE, and TUV.

VPD1000-40 (T1+T2) Series Type 1+2 PV SPD, VOZWEI

VPD1000-40 (T1+T2) Series Type 1+2 PV SPD, VOZWEI

The VPD1000-40 is a high-voltage Type 1+2 PV SPD providing dual-layered lightning and surge defense. Featuring a Uc of 1300V DC, it handles an Iimp of 6.25 kA (10/350 μs) and an Imax of 40 kA (8/20 μs). With Up ≤ 4.0 kV, it is fully EN/IEC 61643-11 compliant. Optimized for high-voltage solar strings.

Related products

NDW3-4000 Series AC ACB, Nader

NDW3-4000 Series AC ACB, Nader

AC ACB with rated current options: 800A, 1000A, 1250A, 1600A, 2000A, 2500A, 3200A, 3600A, 4000A. Rated operational voltage: AC220/230/240, AC380/400, AC415, AC440/480, AC660/690, AC800, AC1000, AC1140, AC1380, AC1500. Available in 3P, 4P. Rated limit short-circuit breaking capacity: 60kA, 75kA, 85kA, 100kA. Certifications: CCC, CB, CE, TUV.

NDW3-2500 Series AC ACB, Nader

NDW3-2500 Series AC ACB, Nader

AC ACB with rated current options: 630A, 800A, 1000A, 1250A, 1600A, 2000A, 2500A. Rated operational voltage: AC220/230/240V to AC1500V. Available in 3P and 4P configurations. Rated limit short-circuit breaking capacity: 50kA to 85kA. Certified by CCC, CB, CE, TUV.

NDM5-400V Series AC MCCB, Nader

NDM5-400V Series AC MCCB, Nader

AC MCCB with rated currents of 250A, 320A, 400A and rated voltages of AC800V, AC1000V. Available in 3 poles. Rated ultimate short-circuit breaking capacities of 35kA and 50kA. Certified by CCC, CE, and TUV.

NDM3G-400V Series AC Disconnectors, Nader

NDM3G-400V Series AC Disconnectors, Nader

AC Disconnectors, 400A rated current, AC1140V rated voltage, 3 poles. Certified by CCC, CB, CE, TUV.

NDM3Z-250V Series DC MCCB, Nader

NDM3Z-250V Series DC MCCB, Nader

DC MCCB with rated currents of 125A, 140A, 160A, 180A, 200A, 225A, and 250A. Rated voltages: DC1000V, DC1500V. Available in 2P and 3P configurations. Rated ultimate short-circuit breaking capacity: 20kA. Certified by CCC, CB, CE, and TUV.
