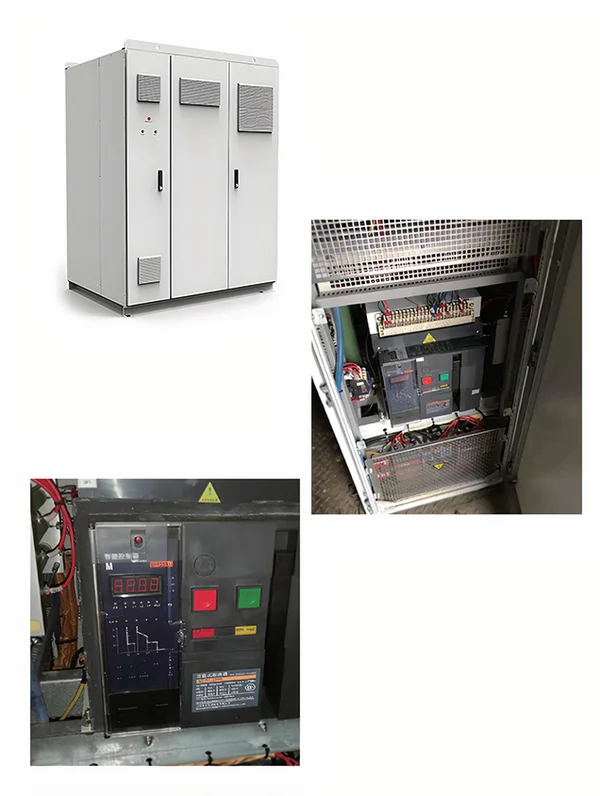

Wind Power Doubly-Fed System

Pain Points in the Application Scenario

The grid contactor is the main control device for 75–80% of the power output control of wind turbine units, which requires high capacity and strong overload resistance. Conventional rear wiring takes up excessive space, resulting in low space efficiency.

Value of the Solution

The NDW3-40S circuit breaker is used together with the NDC1-2100 to achieve grid-side protection and grid-connection control. The NDW3-40HU circuit breaker is used together with the NDC1-2100HU to enhance voltage capability and reduce system costs. VPH750-25/3P and VPH888-12.5/3P+1P(T1+T2) SPD surge protectors realizes professional surge and lightning protection, effectively mitigating the impact of grid transients and lightning surges on core devices, and reinforcing the system's overall safety and reliable operation.

QuiSure Solution

NDW3-4000 Series AC ACB, Nader

NDW3-4000 AC ACB

AC ACB with rated current options: 800A, 1000A, 1250A, 1600A, 2000A, 2500A, 3200A, 3600A, 4000A. Rated operational voltage: AC220/230/240, AC380/400, AC415, AC440/480, AC660/690, AC800, AC1000, AC1140, AC1380, AC1500. Available in 3P, 4P. Rated limit short-circuit breaking capacity: 60kA, 75kA, 85kA, 100kA. Certifications: CCC, CB, CE, TUV.

NDW1A-2000 Series AC ACB, Nader

NDW1A-2000 Series AC ACB, Nader

AC ACB with rated current options: 400A, 630A, 800A, 1000A, 1250A, 1600A, 2000A. Rated operational voltage: AC220V/230V/240V, AC380V/400V/415V, AC660V/690V. Available in 3P and 4P configurations. Rated limit short-circuit breaking capacity: 65kA, 80kA. Certifications include CCC, CB, CE, TUV.

VPM1000-50 Series AC SPD, VOZWEI

VPM1000 AC SPD

The VPM1000-50 Series is a Type 1+2 SPD for high-voltage PV systems, supporting Uc up to AC1000V with 12.5kA Iimp and 50kA Imax. It delivers reliable surge protection for inverters and AC units. With optimized Up and a robust 3+1 design, it ensures stable operation, longer equipment life, and improved safety.

VPH750-25 Series Type 1 AC SPD, VOZWEI

VPH750-25 Series Type 1 AC SPD, VOZWEI

VPH750-25 is a high-voltage Type 1 AC SPD designed for robust lightning protection. Supporting Uc up to 750V AC, it handles extreme surges with an Iimp of 25 kA (10/350 μs). Featuring a protection level of Up ≤ 3.5 kV, it is fully EN/IEC 61643-11 compliant. Ideal for heavy-duty industrial and renewable energy systems requiring maximum durability.

VPH888-12.5 (T1+T2) Series Type 1+2 AC SPD, VOZWEI

VPH888 AC SPD

The VPH888-12.5 is a high-voltage Type 1+2 AC SPD designed for comprehensive lightning and surge protection. With a Uc of 880V AC, it handles an Iimp of 12.5 kA (10/350 μs) and an Imax of 80 kA (8/20 μs). Featuring Up ≤ 3.4 kV, it is fully EN/IEC 61643-11 compliant. Ideal for demanding PV AC systems and high-voltage industrial infrastructure.

Related products

NDW3-4000 Series AC ACB, Nader

NDW3-4000 Series AC ACB, Nader

AC ACB with rated current options: 800A, 1000A, 1250A, 1600A, 2000A, 2500A, 3200A, 3600A, 4000A. Rated operational voltage: AC220/230/240, AC380/400, AC415, AC440/480, AC660/690, AC800, AC1000, AC1140, AC1380, AC1500. Available in 3P, 4P. Rated limit short-circuit breaking capacity: 60kA, 75kA, 85kA, 100kA. Certifications: CCC, CB, CE, TUV.

NDW3-2500 Series AC ACB, Nader

NDW3-2500 Series AC ACB, Nader

AC ACB with rated current options: 630A, 800A, 1000A, 1250A, 1600A, 2000A, 2500A. Rated operational voltage: AC220/230/240V to AC1500V. Available in 3P and 4P configurations. Rated limit short-circuit breaking capacity: 50kA to 85kA. Certified by CCC, CB, CE, TUV.

NDC5K-1450R AC Contactor, Nader

NDC5K-1450R AC Contactor, Nader

NDC5K-1450R is mainly used in photovoltaic and wind power systems for remote circuit switching, and can also be applied in industrial control for remote switching, frequent starting of AC motors, and controlling motor reversing or reverse braking.

PE1000 Series SPD, PTG

PE1000 Series SPD, PTG

Used in the wind energy ,operating voltage is DC1000V, nominal discharge current is 15kA, and the lightning impulse current Iimp(10/350)us is 15kA.

PE30 Series SPD, PTG

PE30 Series SPD, PTG

Used in the wind energy ,operating voltage is DC30V, nominal discharge current is 1kA.
