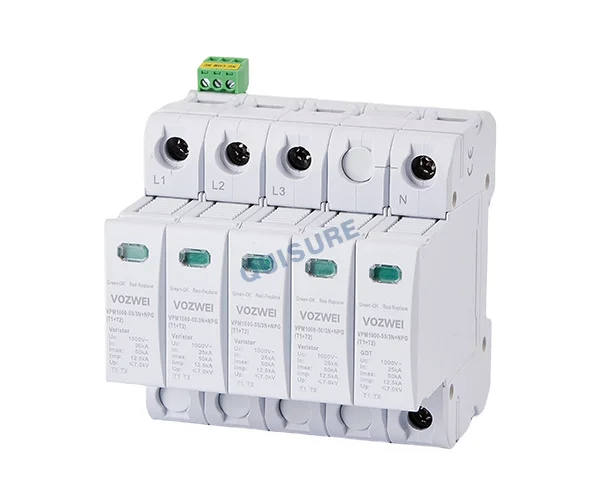

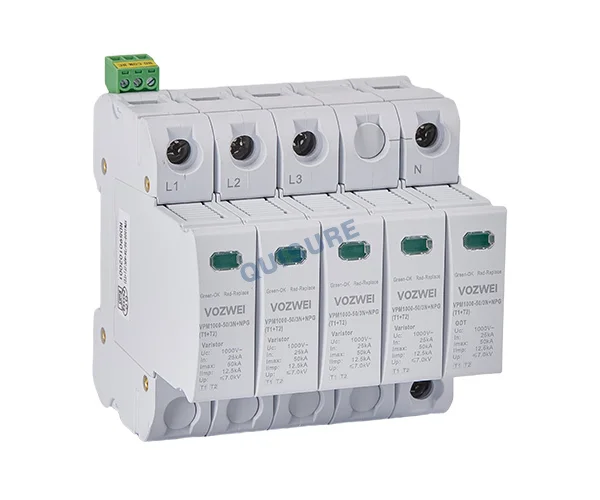

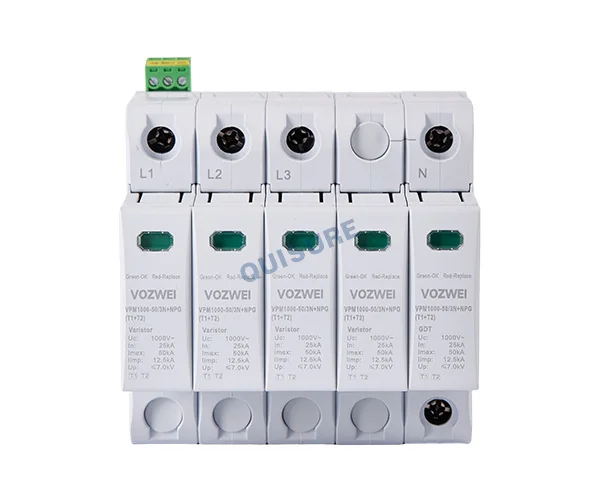

VPM1000-50 Series AC SPD, VOZWEI

SPD according to EN/IEC 61643-11: Type 1+2

Max. continuous operating voltage Uc: L-N: AC1000V; N-PE: AC255V

Impulse current Iimp (10/350μs): 12.5kA

Nominal discharge current In (8/20μs) : 25kA

Max. discharge current Imax (8/20μs): 50kA

Voltage protection level Up: L-N≤5.0kV; N-PE≤2.0kV; L-PE≤7.0kV

Technical parameters:

SPD according to EN/IEC 61643-11	Type1+2
Protection mode	3+1 mode
Nominal operating voltage Un	AC800V 50/60Hz
Max. continuous operating voltage Uc	L-N: 1000VAC; N-PE: 255VAC
Impulse current Iimp (10/350μs)	12.5kA
Nominal discharge current In (8/20μs)	25kA
Max. discharge current Imax (8/20μs)	50kA
Voltage protection level Up	L-N≤5.0kV; N-PE≤2.0kV; L-PE≤7.0kV
Leakage current	≤20μA
Response time	L-N≤25ns; N-PE≤100ns
Max. backup fuse	80A gL/gG
Cross-sectional area	6~35mm2
Stripping length terminals	12.5mm
Tightening torque	3N·m
Normal/Fault Indication	Green/Red
Remote signaling mode	RSC: Remote Signal contact, NC-COM-NO contact
Performances of remote signal contact	AC: 250V/0.5A; DC: 250V/0.1A, 125V/0.2A, 75V/0.5A
Remote cross-sectional area	Max. 1.5 mm2
Installation method	35mm DIN rail
Housing material	PA66 UL94-V0
Protection class	IP20
Operation temperature	-40℃~+70℃
Relative humidity	≤95%(25°C)
Operating altitude	≤3000m
Outline dimensions (without terminal)	92mm × 90mm × 85.4mm (tolerance ± 1mm)
Module pluggable	Pluggable
Internal protective devices	Low-temperature tripping device
