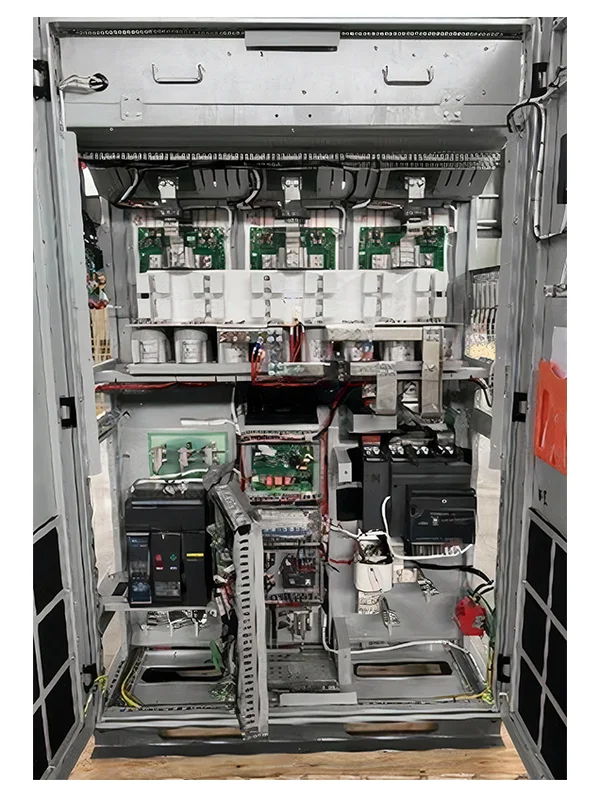

Centralized 1+X Modular Inverter

Pain Points in the Application Scenario

The conventional circuit breaker solution cannot be installed in the 1+X cabinet due to size constraints. Conventional rear wiring occupies too much space, resulting in low space utilization efficiency.

Value of the Solution

For customized ultra-narrow cabinet applications, the product ensures reliable performance despite significantly reduced size, enabling efficient AC/DC protection for new-generation inverters. The circuit breaker features a front-wiring design, with copper busbars that require no bending for direct connection, reducing installation space and wiring costs.

QuiSure Solution

NDM5GZ-1600 Series DC Disconnectors, Nader

NDM5GZ-1600 Series DC Disconnectors, Nader

DC Disconnectors available with rated currents of 800A, 1000A, 1250A, 1500A, and 1600A. Rated voltages include DC750, DC1000, and DC1500. Configurations offered in 2P, 3P, and 4P. Certified by CCC, CE, TUV, and CB.

NDW2-1600 Series AC ACB, Nader

NDW2-1600 Series AC ACB, Nader

AC ACB with rated current options: 200A, 400A, 630A, 800A, 1000A, 1250A, 1600A. Rated operational voltage: AC220V/230V/240V, AC380V/400V/415V, AC440V, AC660V/690V. Available in 3P and 4P configurations. Rated limit short-circuit breaking capacity: 42kA, 65kA. Certified by CCC, CB, CE, TUV.

VD2-350A Series Fuse, VICFUSE

VD2-350A Series Fuse, VICFUSE

Used in the solar energy and energy storage, voltage rating: 750V-4200V,current rating:6A-1600A,and interrupt rating: 30kA-152kA.

VPH888-12.5 (T1+T2) Series Type 1+2 AC SPD, VOZWEI

VPH888 AC SPD

The VPH888-12.5 is a high-voltage Type 1+2 AC SPD designed for comprehensive lightning and surge protection. With a Uc of 880V AC, it handles an Iimp of 12.5 kA (10/350 μs) and an Imax of 80 kA (8/20 μs). Featuring Up ≤ 3.4 kV, it is fully EN/IEC 61643-11 compliant. Ideal for demanding PV AC systems and high-voltage industrial infrastructure.
