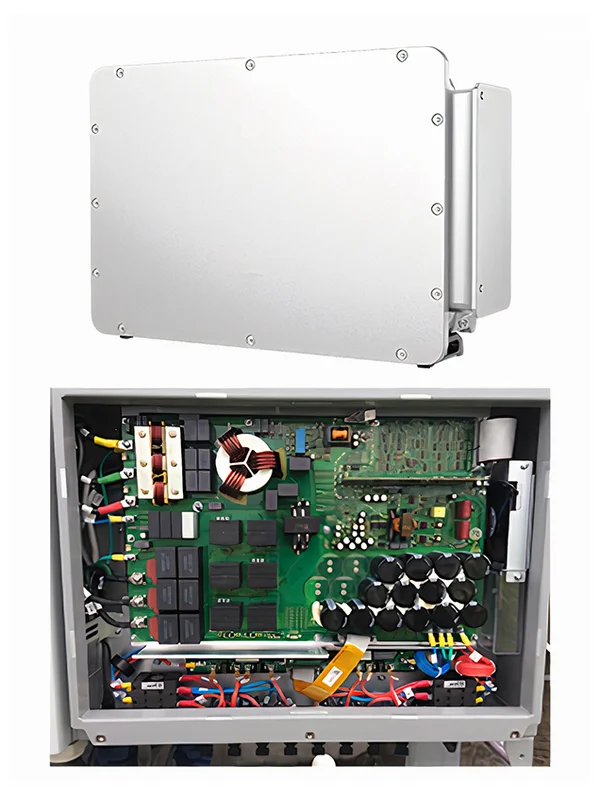

350kW String Inverter

Pain Points in the Application Scenario

The breaking capacity of the conventional DC disconnector switch is insufficient for the multi-parallel technology of 210 modules. DC arc faults affect system safety.

Value of the Solution

The independent original design solves the switch current capacity bottleneck of 210 large-module multi-parallel systems. The product design features a significant breaking capacity buffer, capable of adapting to harsh environments with minimal derating.

QuiSure Solution

NDG3V-50H Series F DC Disconnectors, Nader

NDG3V-50H Series F DC Disconnectors, Nader

DC Disconnectors designed for photovoltaic applications with rated operational current Ie: DC10~63A. Rated operational voltage include DC800~1500V. Available in configurations of 4 poles, 6 poles, and 8 poles. Suitable for high-voltage DC systems, ensuring safe and efficient disconnection.

VPM1000-40 Series Type 2 AC SPD, VOZWEI

VPM1000-40 Series Type 2 AC SPD, VOZWEI

The VPM1000-40 is an ultra-high voltage Type 2 AC SPD designed for specialized power systems. With a Uc of 1000V AC, it handles a nominal discharge current (In) of 20 kA and Imax of 40 kA (8/20 μs). Featuring Up ≤ 4.5 kV, it is fully EN/IEC 61643-11 compliant. Perfect for high-voltage industrial and PV AC-side applications.

Related products

NDW3-4000 Series AC ACB, Nader

NDW3-4000 Series AC ACB, Nader

AC ACB with rated current options: 800A, 1000A, 1250A, 1600A, 2000A, 2500A, 3200A, 3600A, 4000A. Rated operational voltage: AC220/230/240, AC380/400, AC415, AC440/480, AC660/690, AC800, AC1000, AC1140, AC1380, AC1500. Available in 3P, 4P. Rated limit short-circuit breaking capacity: 60kA, 75kA, 85kA, 100kA. Certifications: CCC, CB, CE, TUV.

NDW3-2500 Series AC ACB, Nader

NDW3-2500 Series AC ACB, Nader

AC ACB with rated current options: 630A, 800A, 1000A, 1250A, 1600A, 2000A, 2500A. Rated operational voltage: AC220/230/240V to AC1500V. Available in 3P and 4P configurations. Rated limit short-circuit breaking capacity: 50kA to 85kA. Certified by CCC, CB, CE, TUV.

NDM5-400V Series AC MCCB, Nader

NDM5-400V Series AC MCCB, Nader

AC MCCB with rated currents of 250A, 320A, 400A and rated voltages of AC800V, AC1000V. Available in 3 poles. Rated ultimate short-circuit breaking capacities of 35kA and 50kA. Certified by CCC, CE, and TUV.

NDM3G-400V Series AC Disconnectors, Nader

NDM3G-400V Series AC Disconnectors, Nader

AC Disconnectors, 400A rated current, AC1140V rated voltage, 3 poles. Certified by CCC, CB, CE, TUV.

NDM3Z-250V Series DC MCCB, Nader

NDM3Z-250V Series DC MCCB, Nader

DC MCCB with rated currents of 125A, 140A, 160A, 180A, 200A, 225A, and 250A. Rated voltages: DC1000V, DC1500V. Available in 2P and 3P configurations. Rated ultimate short-circuit breaking capacity: 20kA. Certified by CCC, CB, CE, and TUV.
