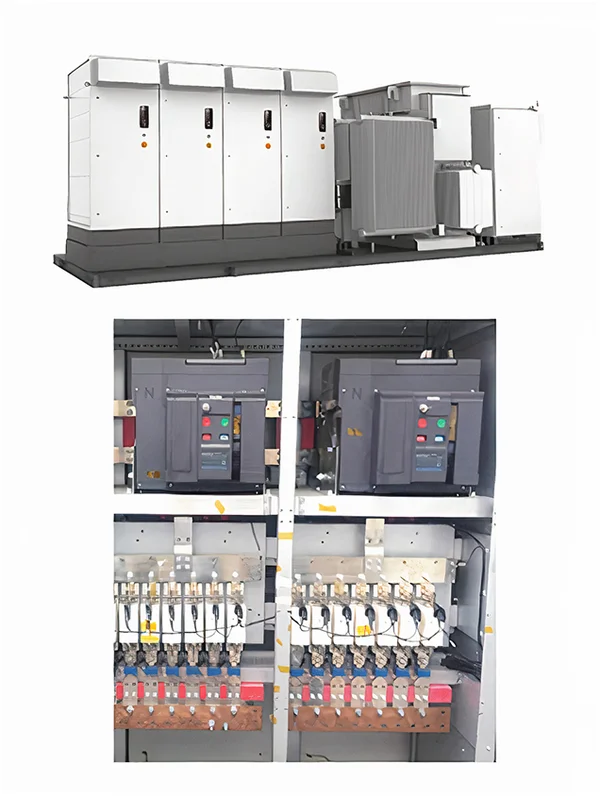

3MW Centralized Inverter

Pain Points in the Application Scenario

Arc ejection from the DC-side circuit breaker induces a secondary short circuit in the DC system. Since the service life of the AC circuit breaker is insufficient, an AC contactor has to be added, which increases the system cost.

Value of the Solution

DC safety critical load current enables remote operation of the DC-side breaker, with an emergency tripping time as fast as 200 ms. The AC circuit breaker also serves as a grid-connection control switch, simplifying the design of grid-connection components and reducing system costs.

QuiSure Solution

NDW2GZ-2000 Series DC Disconnectors, Nader

NDW2GZ-2000 Disconnectors

DC Disconnectors available with rated currents of 800A, 1000A, 1250A, 1600A, and 2000A. Operational voltages include DC750V, DC1000V, and DC1500V. Options for 3P and 4P configurations. Short-circuit breaking capacities are 35kA, 52.5kA, and 80kA. Certified by CCC, CB, CE, and TUV.

NDW1A-1600 Series AC ACB, Nader

NDW1A-1600 Series AC ACB, Nader

ACB with rated current options: 200A, 400A, 630A, 800A, 1000A, 1250A, 1600A. Rated operational voltage: AC220V/230V/240V, AC380V/400V/415V, AC440V, AC660V/690V. Available in 3P and 4P configurations. Rated limit short-circuit breaking capacity: 42kA, 65kA. Certified by CCC, CB, CE, TUV.

VD2-350A Series Fuse, VICFUSE

VD2-350A Series Fuse, VICFUSE

Used in the solar energy and energy storage, voltage rating: 750V-4200V,current rating:6A-1600A,and interrupt rating: 30kA-152kA.

VPH750-25 Series Type 1 AC SPD, VOZWEI

VPH750-25 Series Type 1 AC SPD, VOZWEI

VPH750-25 is a high-voltage Type 1 AC SPD designed for robust lightning protection. Supporting Uc up to 750V AC, it handles extreme surges with an Iimp of 25 kA (10/350 μs). Featuring a protection level of Up ≤ 3.5 kV, it is fully EN/IEC 61643-11 compliant. Ideal for heavy-duty industrial and renewable energy systems requiring maximum durability.

Related products

NDW3-4000 Series AC ACB, Nader

NDW3-4000 Series AC ACB, Nader

AC ACB with rated current options: 800A, 1000A, 1250A, 1600A, 2000A, 2500A, 3200A, 3600A, 4000A. Rated operational voltage: AC220/230/240, AC380/400, AC415, AC440/480, AC660/690, AC800, AC1000, AC1140, AC1380, AC1500. Available in 3P, 4P. Rated limit short-circuit breaking capacity: 60kA, 75kA, 85kA, 100kA. Certifications: CCC, CB, CE, TUV.

NDW3-2500 Series AC ACB, Nader

NDW3-2500 Series AC ACB, Nader

AC ACB with rated current options: 630A, 800A, 1000A, 1250A, 1600A, 2000A, 2500A. Rated operational voltage: AC220/230/240V to AC1500V. Available in 3P and 4P configurations. Rated limit short-circuit breaking capacity: 50kA to 85kA. Certified by CCC, CB, CE, TUV.

NDM5-400V Series AC MCCB, Nader

NDM5-400V Series AC MCCB, Nader

AC MCCB with rated currents of 250A, 320A, 400A and rated voltages of AC800V, AC1000V. Available in 3 poles. Rated ultimate short-circuit breaking capacities of 35kA and 50kA. Certified by CCC, CE, and TUV.

NDM3G-400V Series AC Disconnectors, Nader

NDM3G-400V Series AC Disconnectors, Nader

AC Disconnectors, 400A rated current, AC1140V rated voltage, 3 poles. Certified by CCC, CB, CE, TUV.

NDM3Z-250V Series DC MCCB, Nader

NDM3Z-250V Series DC MCCB, Nader

DC MCCB with rated currents of 125A, 140A, 160A, 180A, 200A, 225A, and 250A. Rated voltages: DC1000V, DC1500V. Available in 2P and 3P configurations. Rated ultimate short-circuit breaking capacity: 20kA. Certified by CCC, CB, CE, and TUV.
