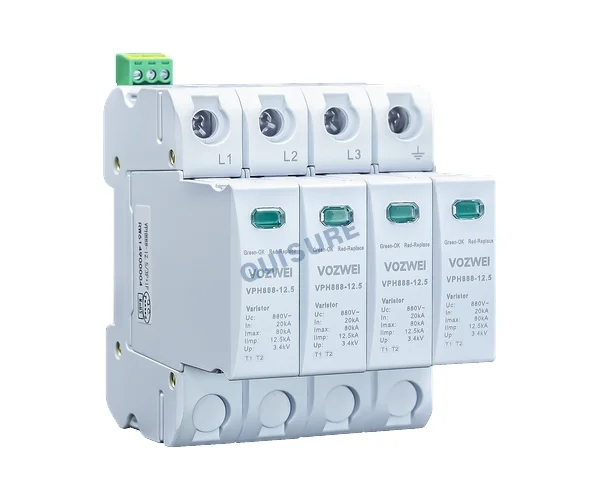

VPH888-12.5 (T1+T2) Series Type 1+2 AC SPD, VOZWEI - Image 1

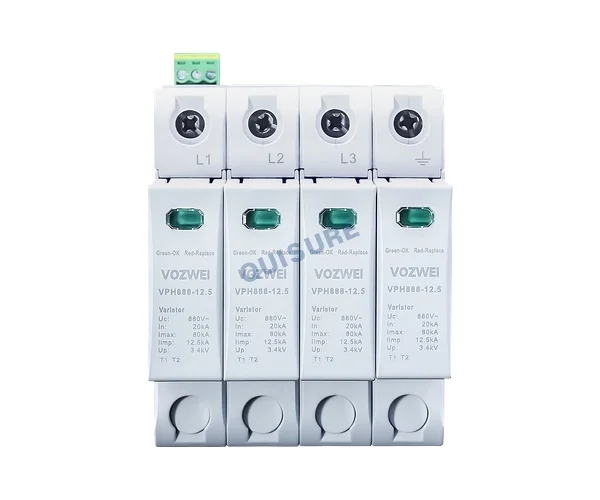

VPH888-12.5 (T1+T2) Series Type 1+2 AC SPD, VOZWEI - Image 2

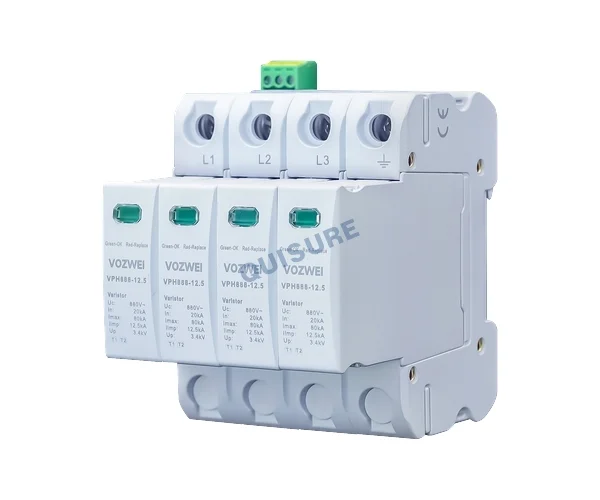

VPH888-12.5 (T1+T2) Series Type 1+2 AC SPD, VOZWEI - Image 3

VPH888-12.5 (T1+T2) Series Type 1+2 AC SPD, VOZWEI - Image 4

VPH888-12.5 (T1+T2) Series Type 1+2 AC SPD, VOZWEI - Thumbnail 1

VPH888-12.5 (T1+T2) Series Type 1+2 AC SPD, VOZWEI - Thumbnail 2

VPH888-12.5 (T1+T2) Series Type 1+2 AC SPD, VOZWEI

SPD according to EN/IEC 61643-11: Type 1 + 2

Max. continuous operating voltage Uc: AC 880 V 50/60 Hz

Impulse current Iimp (10/350 μs): 12.5 kA

Nominal discharge current In (8/20 μs) : 20 kA

Max. discharge current Imax (8/20 μs): 80 kA

Voltage protection level Up: ≤ 3.4 kV

Solar Energy

Product Description

Application:

The VPH888 series are combined Type 1 + Type 2 surge protective devices (SPDs). Their integrated design provides coordinated two-stage protection within a single unit: high-energy impulse current (Iimp) discharge for primary protection at the LPZ0-1 boundary, followed by fine protection with low residual voltage. This makes them ideal, space-saving solutions for main power inlets and distribution boards in commercial, industrial, and critical infrastructure applications requiring maximum reliability against lightning and surge threats.

Featured:

* Nominal discharge current In(8/20 us): 20 kA

* Max. discharge current Imax (8/20 us): 80 kA

* Max. continuous operating voltage Uc: AC 880 V

* Selectable circuit protection modes: 3P + 1P

*Utilizes advanced spark gap & MOV hybrid technology with reliable follow-current interruption

capability

* Integrated thermal disconnect protection with remote alarm contact (NPG)

* Modular plug-and-play design (VPM series) / Robust integrated construction (VPH series)

Technical parameters:

Model	VPH888-12.5/3P+1P(T1+T2)
SPD according to EN/IEC 61643-11	Type 1+2
Network	IT-TN
Protection mode	3+1 mode
Nominal operating voltage Un	AC 690 V 50/60 Hz
Max. continuous operating voltage Uc	AC 880 V 50/60 Hz
Impulse current Iimp (10/350 μs)	12.5 kA
Nominal discharge current In (8/20 μs)	20 kA
Max. discharge current Imax (8/20 μs)	80 kA
Voltage protection level Up	≤ 3.4 kV
Leakage current	≤ 20 μA
Response time	≤ 25 ns
Max. backup fuse	250 A gL/gG
Cross-sectional area	6 ~ 35 mm2
Stripping length terminals	12.5 mm
Tightening torque	3 N·m
Normal/Fault Indication	Green/Red
Remote signaling mode	RSC: Remote Signal contact, NC-COM-NO contact
Performances of remote signal contact	AC: 250 V/0.5 A; DC: 250 V/0.1 A, 125 V/0.2 A, 75 V/0.5 A
Remote cross-sectional area	Max. 1.5 mm2
Installation method	35 mm DIN rail
Housing material	PBT UL94-V0
Protection class	IP20
Operation temperature	-40 ℃ ~ +80 ℃
Relative humidity	≤ 95% (25 ℃)
Operating altitude	≤ 3000 m

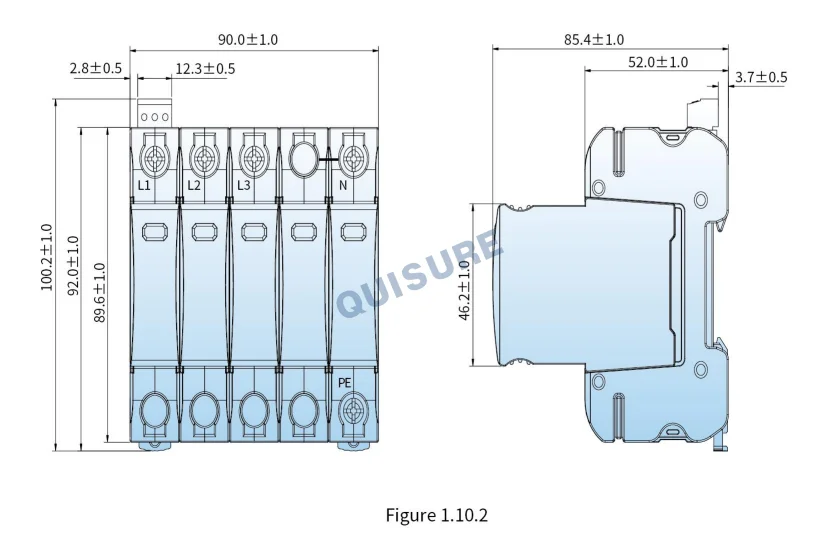

Outline dimensions (without terminal)	90.0 mm × 72.0 mm × 77 mm (tolerance ± 1 mm)
Module pluggable	Pluggable
Internal protective devices	Built-in thermal tripping device
Short-circuit withstand capability	25 kArms
