VPH385-30 Series Type 1 AC SPD, VOZWEI

SPD according to EN/IEC 61643-11: Type 1

Max. continuous operating voltage Uc: AC 385 V 50/60 Hz

Impulse current Iimp (10/350 μs): 30 kA

Nominal discharge current In (8/20 μs) : 30 kA

Voltage protection level Up: ≤ 1.9 kV

Product Description

Application:

This product is a high-capacity, low-voltage surge protective device (SPD) designed for Type 1 (Class B) installation at the main power inlet of low-voltage distribution systems, located at the boundary between LPZ0 and LPZ1 zones. It protects sensitive electrical equipment against damage from direct lightning strikes and induced transient overvoltages.

Featured:

* Impulse current Iimp (10/350 μs): 30 kA

* Normal discharge current In (8/20 us): 30 kA

* Max. continuous operating voltage Uc: AC 385 V

* Selectable circuit protection modes: 2P / 3P / 4P / 3N+NPE

* Utilizes high-performance graphite or gas discharge tube (GDT) technology with superior follow-current interruption capability .

Nomenclature:

VP □ □–□/□□

1 2 3 4 5

SN	Name	Specification, type code
1	Design code	VP
2	Product Series	H
3	Max. continuous operating voltage Uc	385: AC 385 V
4	Impulse current Iimp (10/350 μs)	30: 30 kA
5	Protection mode	2P: 2P; 3P: 3P; 4P:4P; 3N+NPE: 3N+NPE

Example: VPH385-30/4P → Uc: AC 385 V; Iimp (10/350 μs): 30 kA; Protection mode: 4P.

Technical parameters:

Model	VPH385-30/4P
SPD according to EN/IEC 61643-11	Type 1
Protection mode	L-PE & N-PE
Nominal operating voltage Un	AC 230/400 V 50/60 Hz
Max. continuous operating voltage Uc	AC 385 V 50/60 Hz
Impulse current Iimp (10/350 μs)	30 kA
Voltage protection level Up	≤ 1.9 kV
Response time	≤ 100 ns
Cross-sectional area	6 ~ 35 mm2
Stripping length terminals	12.5 mm
Tightening torque	3 N·m
Normal/Fault Indication	Green/Red
Remote signaling mode	RSC: Remote Signal contact, NC-COM contact.
Performances of remote signal contact	Max open circuit voltage: 300 V; Maximum load current: 100 mA; Node equivalent resistance: 50 Ω.
Remote cross-sectional area	Max. 1.5 mm2
Installation method	35 mm DIN rail
Housing material	UL94-V0
Protection class	IP20
Operating temperature	-40 ℃ ~ +80 ℃
Relative humidity	≤ 95% (25 ℃)
Operating altitude	≤ 3000 m
Outline dimensions (without terminal)	90 mm × 144 mm × 66 mm (tolerance ± 1 mm)
Internal protection device	The lightning protection unit has a built-in thermal trip device
External protection device	The incoming cables must be connected in series to the C circuit breaker with the rated current not exceeding 63 A.

Selection guide:

Model	Un	Uc	Up	In	Iimp	Protection mode	Operating Principle	Size

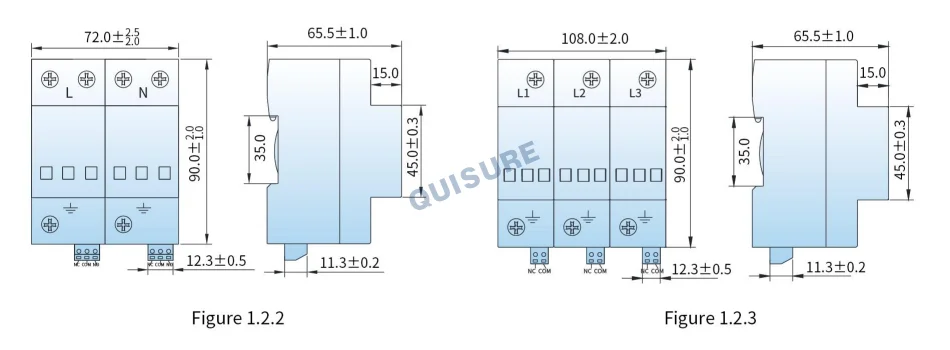

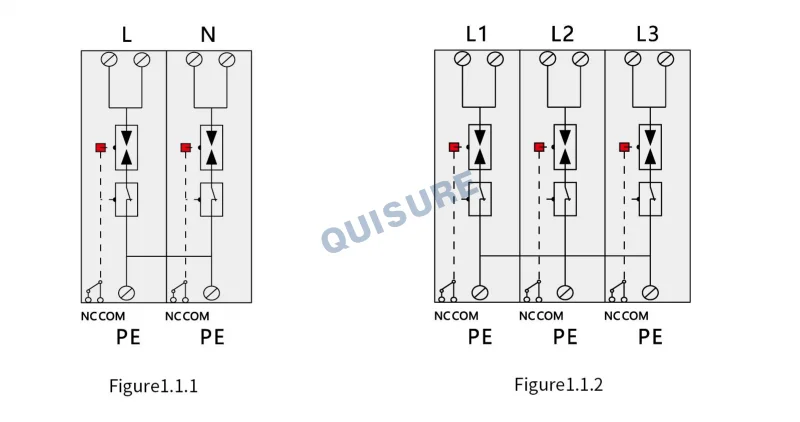

VPH385-30/2P	AC 230 V	AC 385 V	1.9 kV	30 kA	30 kA	L-PE & N-PE	Figure 1.1.1	Figure 1.2.2
VPH385-30/3P	AC 230 V	AC 385 V	1.9 kV	30 kA	30 kA	L-PE	Figure 1.1.2	Figure 1.2.3

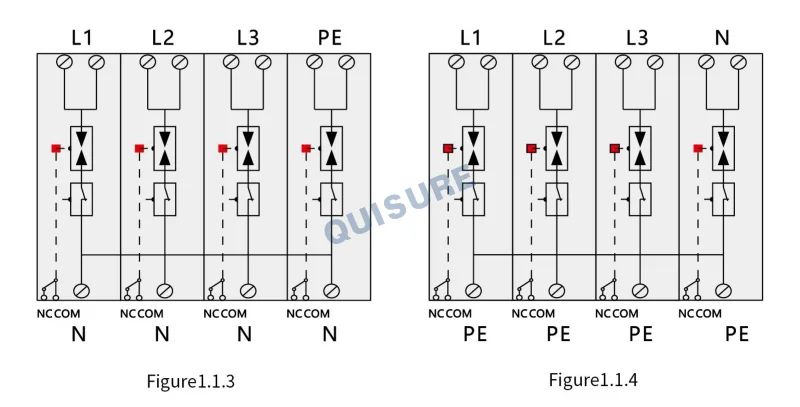

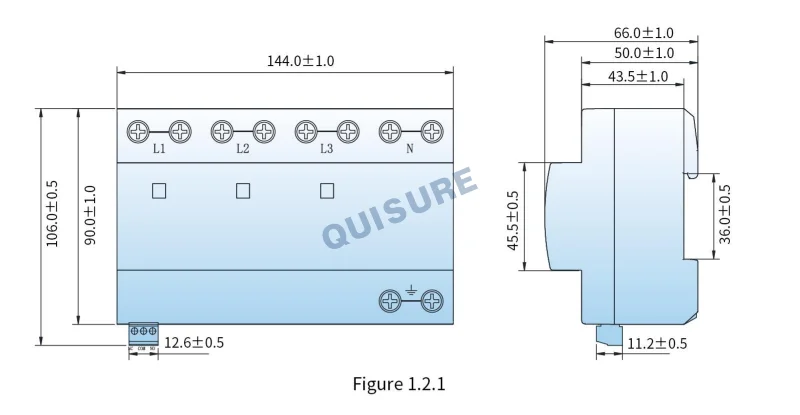

VPH385-30/4P	AC 230 V	AC 385 V	1.9 kV	30 kA	30 kA	L-PE & N-PE	Figure 1.1.4	Figure 1.2.1

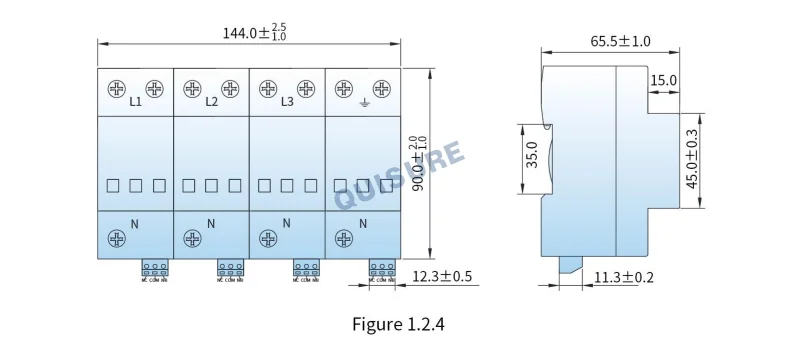

VPH385-30/3N+NPE	AC 230 V	AC 385 V	1.9 kV	30 kA	30 kA	L-N & N-PE	Figure 1.1.3	Figure 1.2.4
