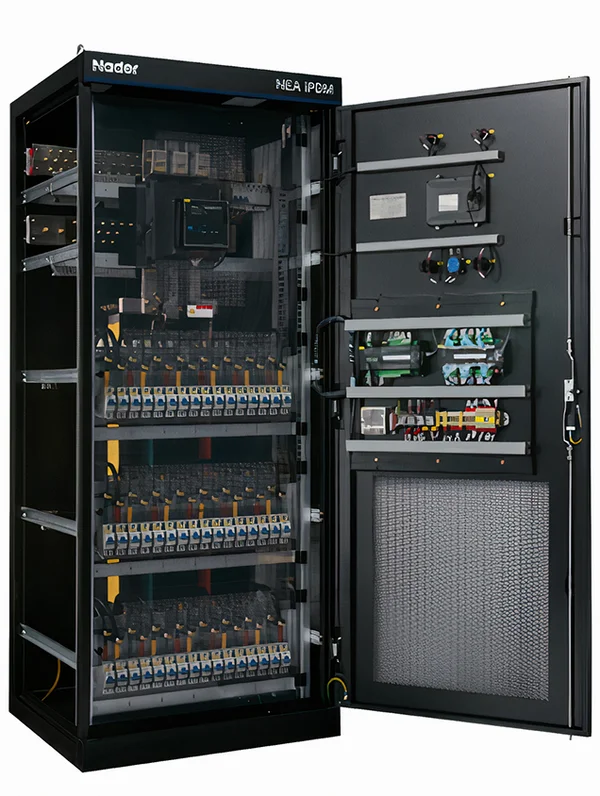

Data Center UPS/Battery Power Cabinet

Pain Points in the Application Scenario

High-power UPS with high density, significant heat generation, and a high PUE (Power Usage Effectiveness) index. The minimum width of a single UPS unit is 600mm, with limited space available.

Value of the Solution

Smaller size and high breaking capacity product with low temperature rise. Max operation current up to 1440A for 3P and 4P.

QuiSure Solution

NDM3Z-800 Series DC MCCB, Nader

NDM3Z-800 Series DC MCCB, Nader

DC MCCB with rated currents of 630A, 700A, 800A, 1250A, 1440A (parallel) and rated voltages of DC500V, DC630V, DC690V, DC750V, DC1000V. Available in 2P, 3P, 4P configurations. Rated ultimate short-circuit breaking capacities of 8kA, 20kA, 30kA, 35kA, 40kA. Certified by CCC, CB, CE, TUV.

NDM5Z-1600 Series DC MCCB, Nader

NDM5Z-1600 Series DC MCCB, Nader

DC MCCB available with rated currents of 800A, 1000A, 1250A, 1500A, and 1600A. Rated voltages include DC500V, DC600V, DC750V, DC1000V, and DC1200V. Configurations include 2P, 3P, and 4P. Certified by CCC, CE, and TUV.

VPH750-25 Series Type 1 AC SPD, VOZWEI

VPH750-25 Series Type 1 AC SPD, VOZWEI

VPH750-25 is a high-voltage Type 1 AC SPD designed for robust lightning protection. Supporting Uc up to 750V AC, it handles extreme surges with an Iimp of 25 kA (10/350 μs). Featuring a protection level of Up ≤ 3.5 kV, it is fully EN/IEC 61643-11 compliant. Ideal for heavy-duty industrial and renewable energy systems requiring maximum durability.

Related products

MB8Z-125 intelligent MCB 1P+N, DC60/80V, 63-125A, Icu:10kA for Telecom, QuiSure

MB8Z-125 intelligent MCB 1P+N, DC60/80V, 63-125A, Icu:10kA for Telecom, QuiSure

Rated current 63–125A and DC60V/80V for telecom applications. CCC/CB/CE certified. Supports RS485 for data queries and parameter settings, provides four remote power functions (remote control, telemetry, signaling, and adjustment), and collects data such as energy, power, voltage, current, and temperature.
MB8Z-63 intelligent MCB 1P+N, DC60/80V, 6-63A, Icu:10kA for Telecom, QuiSure

MB8Z-63 intelligent MCB 1P+N, DC60/80V, 6-63A, Icu:10kA for Telecom, QuiSure

Rated current 6–63A and DC60V/80V for telecom applications. CCC/CB/CE certified. Supports RS485 for data queries and parameter settings, provides four remote power functions (remote control, telemetry, signaling, and adjustment), and collects data such as energy, power, voltage, current, and temperature.
NDB2-63 Series AC/DC MCB, Nader

NDB2-63 Series AC/DC MCB, Nader

AC/DC MCBs available with rated currents from 1A to 63A. Rated voltages include AC230/240/277/400/415/480V and DC60/80/125V. Options for 1P, 2P, 3P, and 4P poles. Breaking capacity is 10kA. Certified by CCC, CE, TUV, UL1077, and CB.
NDB2T-63(UL489) Series AC/DC MCB, Nader

NDB2T-63(UL489) Series AC/DC MCB, Nader

AC/DC MCBs available with rated currents from 1A to 63A. Suitable for AC120/240/277/480V, and DC60/125V applications. Options include 1P, 2P and 3P poles. High breaking capacity of 10kA. Certified by UL489. Ideal for reliable circuit protection in various electrical systems.
NDB1L-32 Series RCCB, Nader

NDB1L-32 Series RCCB, Nader

RCCB with rated current options: 6A, 10A, 16A, 20A, 25A, 32A. Rated voltage: AC230/240V. Configuration: 1P+N. Breaking capacity: 4.5kA, 6kA. Certified by CCC, CB, CE, TUV, UL1053.
