Telecom & Data Center

5G Telecom Data Center UPS/Battery Power Cabinet Data Center LV Panel

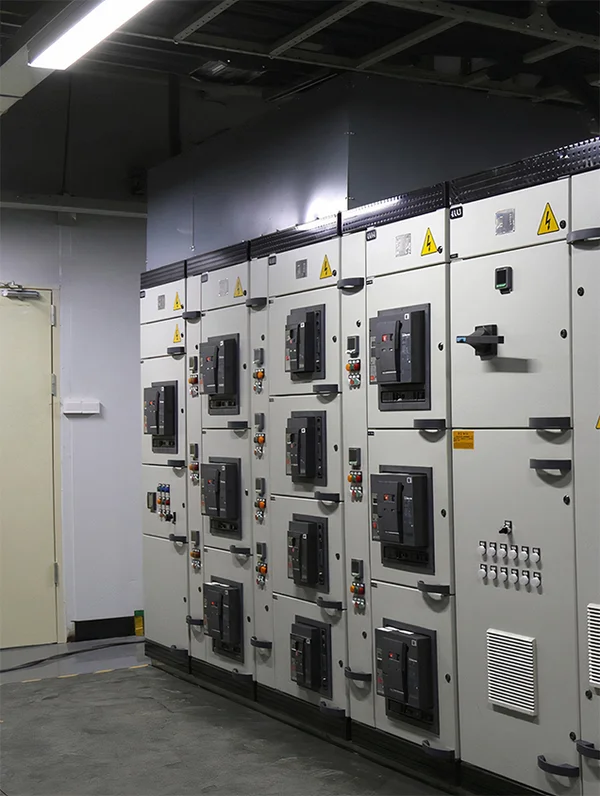

Data Center LV Panel

Pain Points in the Application Scenario

Traditional intelligent monitoring independence, information silos; incomplete monitoring data, unable to monitor in real time. Traditional maintenance and inspection methods are inefficient; unable to provide early warnings or diagnose the operational status of system devices in advance; unable to quickly locate fault points.

Value of the Solution

Automatically evaluate equipment health status, provide maintenance recommendations, and enhance operational efficiency. The overall energy consumption and operational costs of the data center power distribution system are significantly reduced, and the probability of data center downtime is greatly decreased.

QuiSure Solution

NDW3-4000 Series AC ACB, Nader

NDW3-4000 AC ACB

AC ACB with rated current options: 800A, 1000A, 1250A, 1600A, 2000A, 2500A, 3200A, 3600A, 4000A. Rated operational voltage: AC220/230/240, AC380/400, AC415, AC440/480, AC660/690, AC800, AC1000, AC1140, AC1380, AC1500. Available in 3P, 4P. Rated limit short-circuit breaking capacity: 60kA, 75kA, 85kA, 100kA. Certifications: CCC, CB, CE, TUV.

NDM3E-400 Series Electronic MCCB, Nader

NDM3E-400 Series Electronic MCCB, Nader

MCCB with a rated current of 400A and rated voltage options of AC 380/400/415V, and AC 660/690V. Available in 3P and 4P configurations. Offers rated ultimate short-circuit breaking capacities of 20kA, 70kA, and 100kA. Certified by CCC, CB, CE, and TUV.

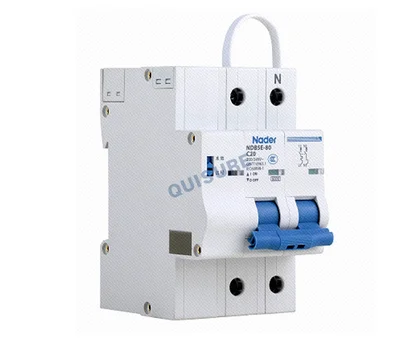

NDB5E-80 Series AC IoT Miniature
Circuit Breaker, Nader

NDB5E-80 Series AC IoT Miniature Circuit Breaker, Nader

The NDB5E-80 series IoT circuit breaker is a smart-type circuit breaker featuring automatic switching, overvoltage and undervoltage protection, leakage protection, energy metering, temperature monitoring, overload delay protection, timer control, power limiting, and three-phase unbalance protection.

VPH888-12.5 (T1+T2) Series Type 1+2 AC SPD, VOZWEI

VPH888 AC SPD

The VPH888-12.5 is a high-voltage Type 1+2 AC SPD designed for comprehensive lightning and surge protection. With a Uc of 880V AC, it handles an Iimp of 12.5 kA (10/350 μs) and an Imax of 80 kA (8/20 μs). Featuring Up ≤ 3.4 kV, it is fully EN/IEC 61643-11 compliant. Ideal for demanding PV AC systems and high-voltage industrial infrastructure.

Related products

MB8Z-125 intelligent MCB 1P+N, DC60/80V, 63-125A, Icu:10kA for Telecom, QuiSure

MB8Z-125 intelligent MCB 1P+N, DC60/80V, 63-125A, Icu:10kA for Telecom, QuiSure

Rated current 63–125A and DC60V/80V for telecom applications. CCC/CB/CE certified. Supports RS485 for data queries and parameter settings, provides four remote power functions (remote control, telemetry, signaling, and adjustment), and collects data such as energy, power, voltage, current, and temperature.

MB8Z-63 intelligent MCB 1P+N, DC60/80V, 6-63A, Icu:10kA for Telecom, QuiSure

MB8Z-63 intelligent MCB 1P+N, DC60/80V, 6-63A, Icu:10kA for Telecom, QuiSure

Rated current 6–63A and DC60V/80V for telecom applications. CCC/CB/CE certified. Supports RS485 for data queries and parameter settings, provides four remote power functions (remote control, telemetry, signaling, and adjustment), and collects data such as energy, power, voltage, current, and temperature.

NDB2-63 Series AC/DC MCB, Nader

NDB2-63 Series AC/DC MCB, Nader

AC/DC MCBs available with rated currents from 1A to 63A. Rated voltages include AC230/240/277/400/415/480V and DC60/80/125V. Options for 1P, 2P, 3P, and 4P poles. Breaking capacity is 10kA. Certified by CCC, CE, TUV, UL1077, and CB.

NDB2T-63(UL489) Series AC/DC MCB, Nader

NDB2T-63(UL489) Series AC/DC MCB, Nader

AC/DC MCBs available with rated currents from 1A to 63A. Suitable for AC120/240/277/480V, and DC60/125V applications. Options include 1P, 2P and 3P poles. High breaking capacity of 10kA. Certified by UL489. Ideal for reliable circuit protection in various electrical systems.

NDB1L-32 Series RCCB, Nader

NDB1L-32 Series RCCB, Nader

RCCB with rated current options: 6A, 10A, 16A, 20A, 25A, 32A. Rated voltage: AC230/240V. Configuration: 1P+N. Breaking capacity: 4.5kA, 6kA. Certified by CCC, CB, CE, TUV, UL1053.
