NDB1L-32 Series RCCB, Nader

Rated current In (A): 6A, 10A, 16A, 20A, 25A, 32A

Rated voltage Ue (V): AC230/240V

Poles: 1P+N

Breaking capacity (Icu): 4.5kA, 6kA

Certifications: CCC, CB, CE, TUV, UL1053

Documents:

Nader-NDB1L-32-RCBO-Products-Specification-3011.pdf

Telecom & Data Center

Commercial Refrigeration

Product Description

Technical parameters:

Rated Voltage (Ue)	AC230/240
Rated Current (In)	6A, 10A, 16A, 20A, 25A, 32A
Tripping Characteristic	C：5In～10In
Tripping curve	C curve
Rated Breaking Capacity (Icn)	4.5kA, 6kA(UL1053)
Rated Ultimate Short-Circuit Breaking Capacity (Icu)	4.5kA, 6kA(UL1053)
Rated Service Short-Circuit Breaking Capacity (Ics)	4.5kA, 6kA(UL1053)
Number of Poles	1PN
Standards and Certificates	·CCC、CB、CE、TUV、UL1053 ·GB 16917.1、IEC 61009-1、GB16917.22、IEC61009-2-2、UL1053
Environmental Requirements	RoHS
Rated Insulation Voltage	AC440V
Rated Impulse Withstand Voltage	4kV
Rated Frequency	50/60Hz
Wiring	·Adopt tunnel type wiring Version ·Connection capability: 1mm² to 10 mm² ·Connection screw M4, Torque: 1.2N.m
Mechanical Life	10000 times
Electrical Life	6000 times
Working Condition	·Ambient temperature: －25℃~＋55℃ ·Storage temperature: －30℃~+70℃ ·Relative air humidity ≤95% ·Altitude ≤2000m ·Pollution degree: 2 ·Protection Degree: IP20

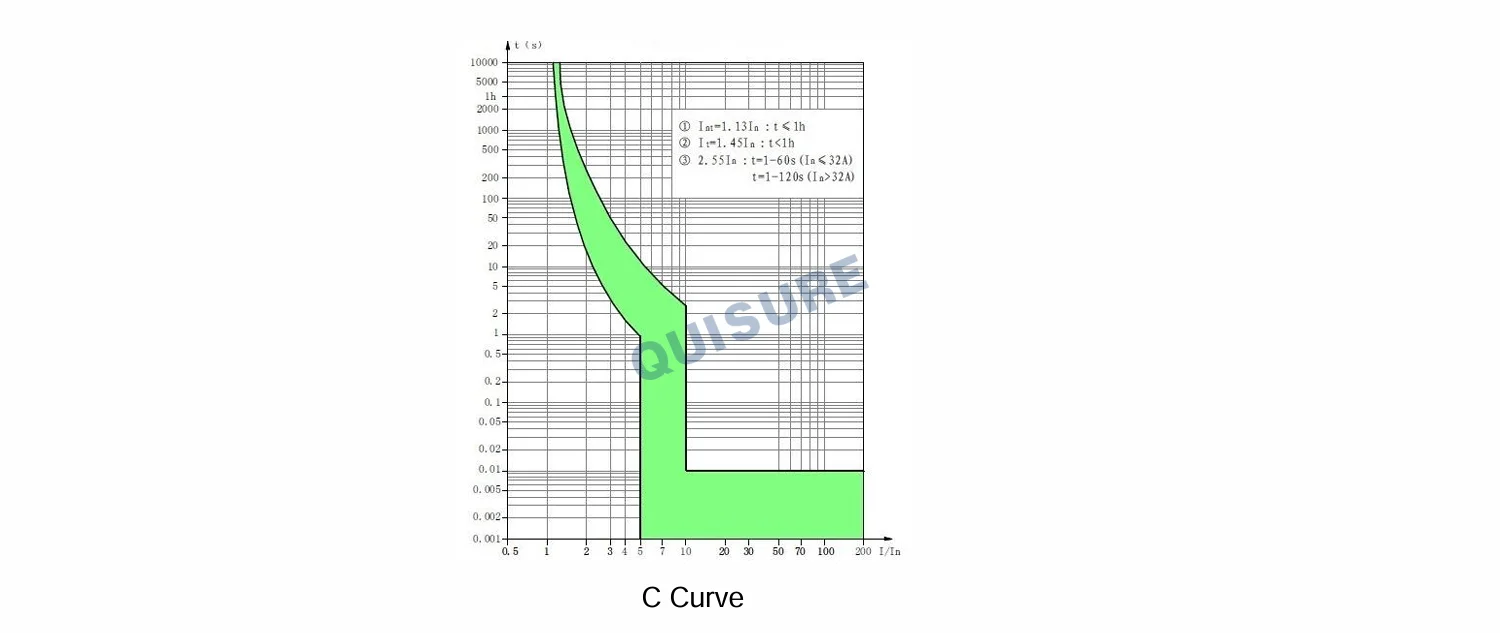

Tripping characteristic curve

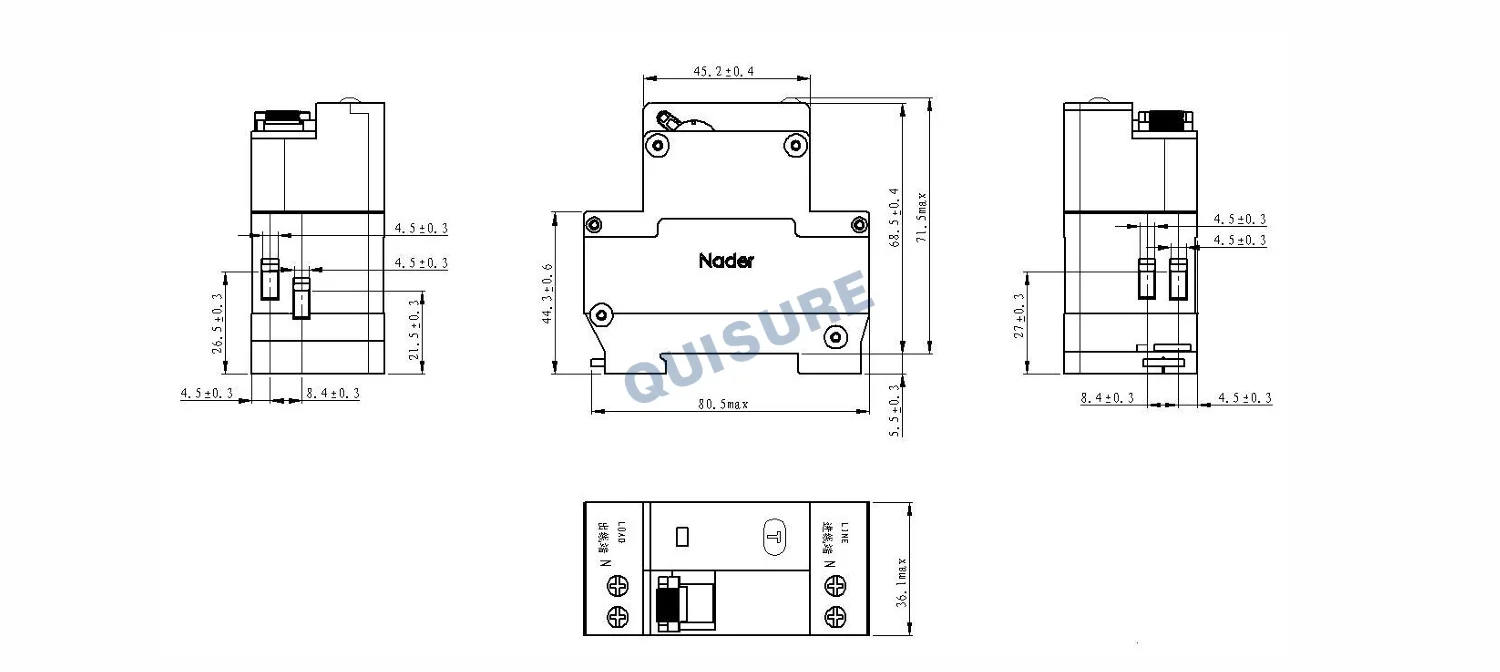

Outline and installation dimension

Packing and depositing:

·Maximum packing quantity

1N-pole: 6pieces in a box, 12 boxes in an overwrap carton.

·The products should be stored in the warehouse where there is ventilation. The relative humidity there should not exceed 80%, and the ambient temperature there is between-30℃ to +70℃. In addition, there should not be acidic, alkaline and corrosive gas in the air. The products should not be deposited more than 3 years in the above mentioned conditions since the producing date.
