NDB2LM-40 Series RCCB, Nader
Rated current In (A): 2A, 4A, 6A, 10A, 13A, 16A, 20A, 25A, 32A, 40A
Rated voltage Ue (V): AC230/240V
Poles: 1P+N
Breaking capacity (Icu): 10kA
Certifications: CCC, CE, TUV, CB
Related accessories
Technical parameters:
| Rated Voltage (Ue) | AC230/240 |
| Rated Current (In) | 2A, 4A, 6A, 10A, 13A, 16A, 20A, 25A, 32A, 40A |
| Tripping Characteristic | B: 3In～5In, C: 5In～10In |
| Tripping curve | B curve, C curve |
| Rated Breaking Capacity (Icn) | 10kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | / |
| Rated Service Short-Circuit Breaking Capacity (Ics) | / |
| Number of Poles | 1PN |
| Standards and Certificates | ·CCC, CE, TUV, CB ·GB/T 16917.1, IEC 61009-1 |
| Environmental Requirements | RoHS |
| Rated Insulation Voltage | 500V |
| Rated Impulse Withstand Voltage | 4kV |
| Rated Frequency | 50/60Hz |
| Wiring | ·Adopt tunnel type wiring Version ·Connection capability: 1mm² to 16 mm² ·Connection screw M5, Torque: 2.0N.m |
| Mechanical Life | 20000 times |
| Electrical Life | 10000 times |
| Working Condition | ·Ambient temperature: －25℃~＋60℃ ·Storage temperature: －25℃~+60℃ ·Relative air humidity ≤80% ·Altitude ≤2000m ·Pollution degree: 2 ·Protection Degree: IP20 ·Service place without significant vibration and impact |
| Isolation function | ·Practical breaking instructions ·View window within the green identification said contact in the off position |

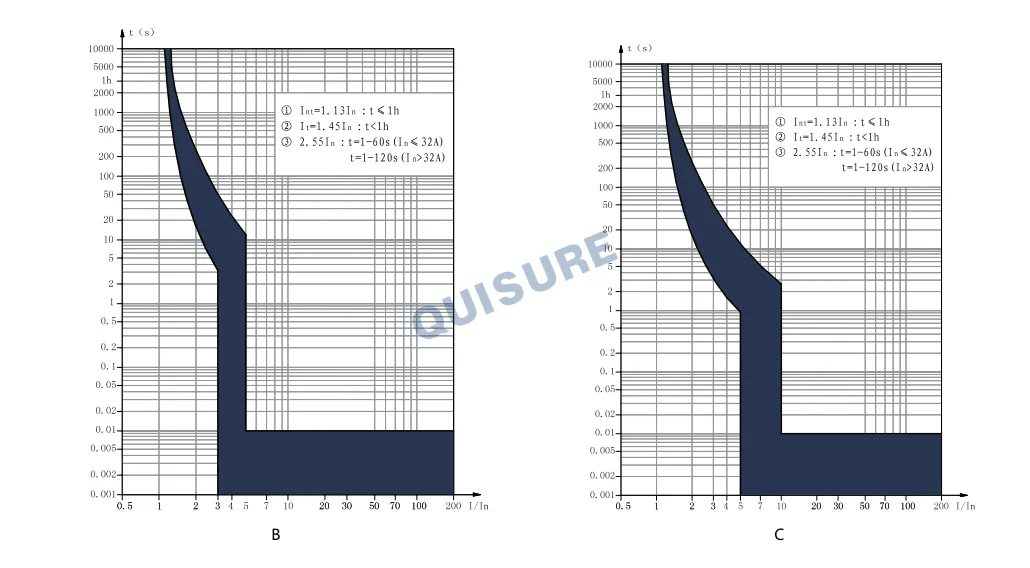

Tripping characteristic curve

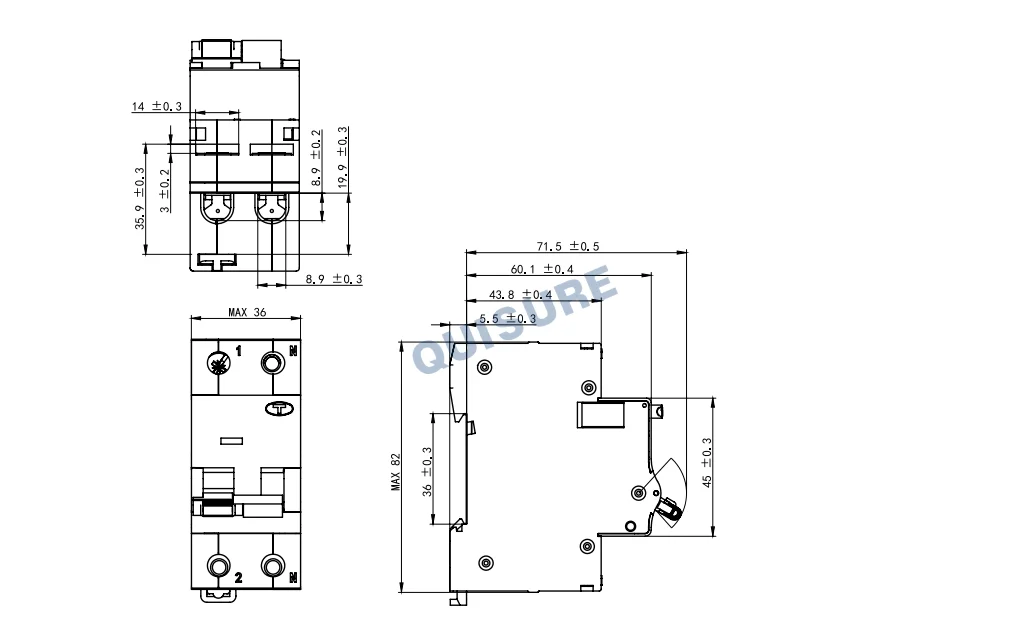

Outline and installation dimension
