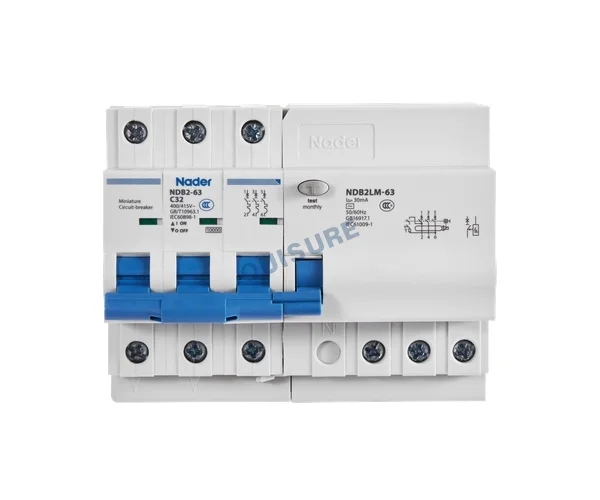

NDB2LM-63 Series RCCB, Nader

Rated current In (A): 1A, 2A, 3A, 4A, 5A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A

Rated voltage Ue (V): AC230/240/400/415V

Poles: 1PN, 2P, 3P, 3P+N, 4P

Breaking capacity (Icu): 10kA

Certifications: CCC, CE, TUV, CB

Documents:

Nader-NDB2LM-63-RCCB-Products-Specification.pdf

Energy Storage

Telecom & Data Center

OEM

Product Description

Technical parameters:

Rated Voltage (Ue)	AC230/240 (1PN, 2P) AC400/415 (3P, 3P+N, 4P)
Rated Current (In)	2A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A
Tripping Characteristic	B: 3In～5In, C: 5In～10In, D: 10In～14In
Tripping curve	B curve, C curve, D curve
Rated Breaking Capacity (Icn)	10kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)	/
Rated Service Short-Circuit Breaking Capacity (Ics)	/
Number of Poles	1PN, 2P, 3P, 3P+N, 4P
Standards and Certificates	·CCC, CB ·GB/T 16917.1, IEC 61009-1
Environmental Requirements	RoHS
Rated Insulation Voltage	AC500V
Rated Impulse Withstand Voltage	4kV
Rated Frequency	50/60Hz
Wiring	·Adopt tunnel type wiring Version ·Connection capability: 1mm² to 35 mm² ·Connection screw M5, Torque: 2.0N.m
Mechanical Life	20000 times
Electrical Life	10000 times
Working Condition	·Ambient temperature: －25℃~＋60℃ ·Storage temperature: －40℃~+80℃ ·Relative air humidity ≤80% ·Altitude ≤2000m ·Pollution degree: 2 ·Protection Degree: IP20 ·Service place without significant vibration and impact
Isolation function	·Practical breaking instructions ·View window within the green identification said contact in the off position

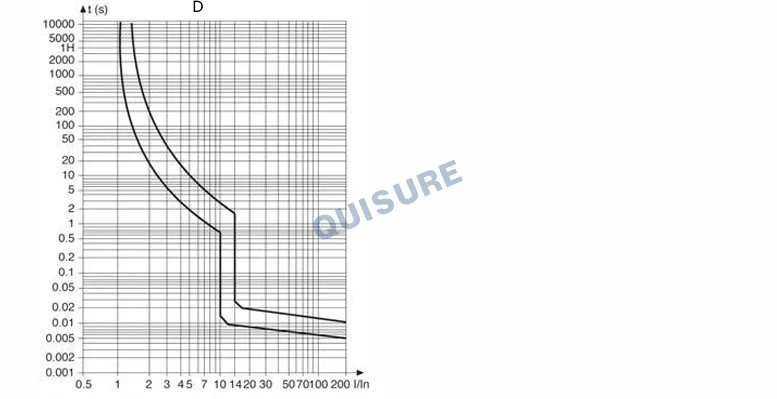

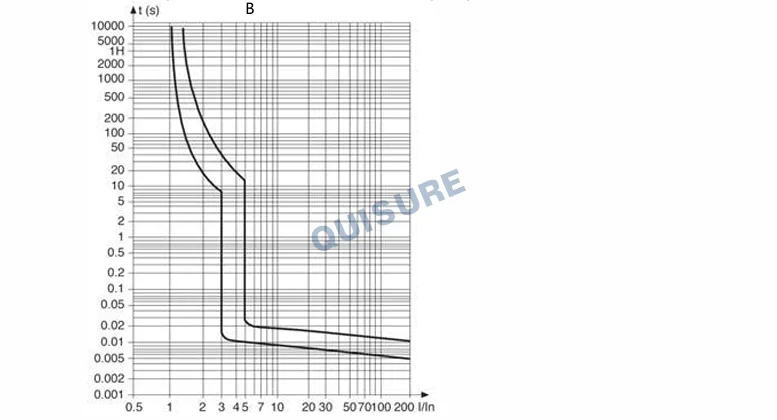

Tripping characteristic curve

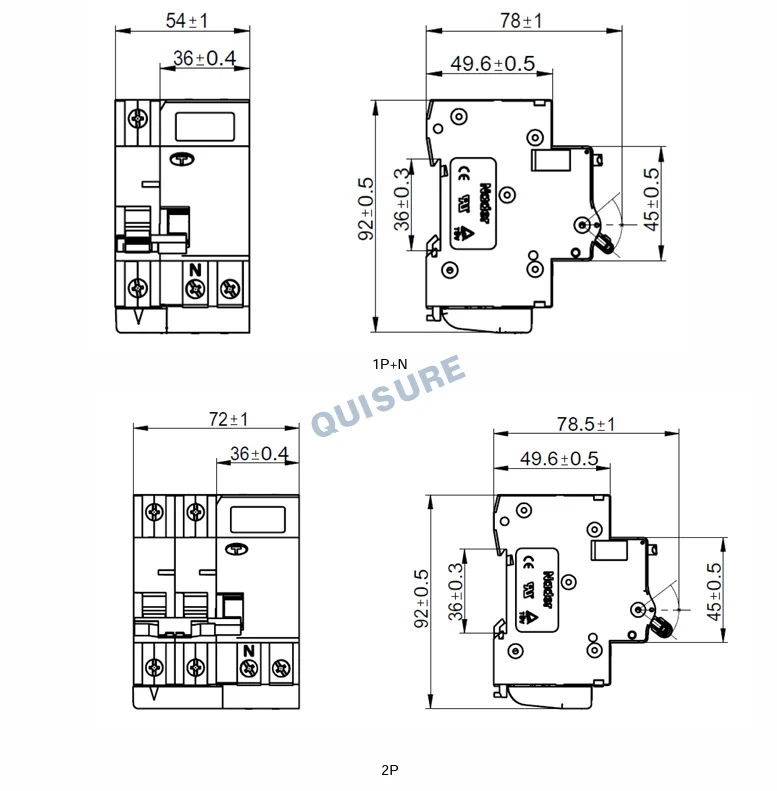

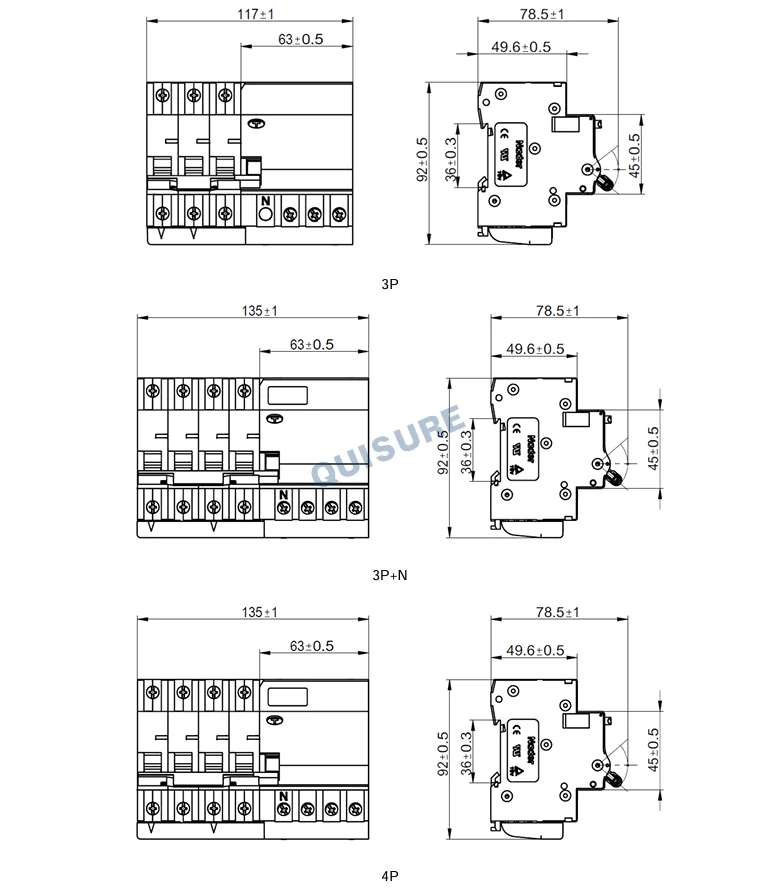

Outline and installation dimension

Packing and depositing:

·Quantity（1P product：12PCS/box，1PN/2P product：6PCS/box，3P product：4 PCS/box，3PN/4P product： 3PCS/box）

·Packing boxes of products should be stored in the air circulation and relative humidity is not more than 80% and the temperature is not higher than + 60 ℃，not less than - 25 ℃ in the air around without acid, alkali or other corrosive gases stored in the warehouse. In the above conditions, the storage period since the production date not more than three years.
