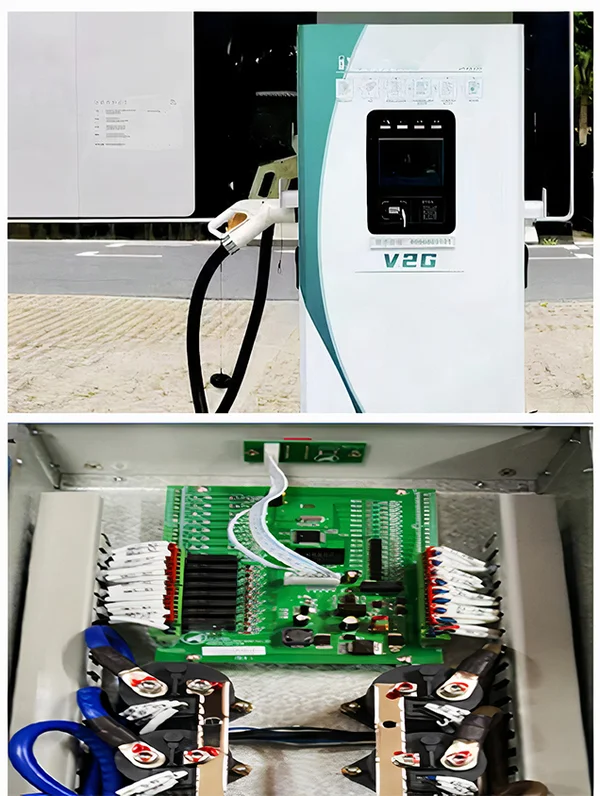

V2G DC Charge Station

Pain Points in the Application Scenario

The AC side is powered by 220V/380V AC, with an externally mounted residual current protection device that requires Type A protection to ensure personal safety. This device also needs reverse-wiring residual current protection. The V2G DC bidirectional charging system requires DC contactors to meet an electrical life of 1000 cycles at a maximum DC1000V and be non-polarized. The contactors are prone to contact burnout.

Value of the Solution

The RCBO product support line from both top and bottom, with Type A protection to solve the problem of ‌harmonic interference misoperation‌. DC contactor has the non-polarized function, match the DC1000V electrical life of 1000 cycles‌ requirement and the contact has strong ‌anti-burning capability to keep the station operation safety.

QuiSure Solution

NDB1LE-63 Type B RCBO, Nader

NDB1LE-63 Type B RCBO

NDB1LE-63 Type B RCCB provides protection for AC ≤1 kHz, pulsating DC, composite, and smooth DC residual currents, suitable for new energy, EV charging, smart buildings, and industrial control with VFD applications, offering short-circuit, overload, Type-B residual current, and isolation functions (not applicable to 1PN/3PN).

NDZ3W-300 Series DC Contactor, Nader

NDZ3W-300 Series DC Contactor, Nader

DC Contactor with 300A rated current and DC1000V rated insulation voltage. Coil control voltage ranges from DC12V to 24V. Certified by CCC, CB, CE, TUV, and UL.

VPD1000-40 (T1+T2) Series Type 1+2 PV SPD, VOZWEI

VPD1000-40 (T1+T2) Series Type 1+2 PV SPD, VOZWEI

VPD1000-40 is a high-voltage Type 1+2 PV SPD providing dual-layered lightning and surge defense. Featuring a Uc of 1300V DC, it handles an Iimp of 6.25 kA (10/350 μs) and an Imax of 40 kA (8/20 μs). With Up ≤ 4.0 kV, it is fully EN/IEC 61643-11 compliant. Optimized for high-voltage PV systems with protection against direct and indirect lightning.
