Energy Storage

QuiSure delivers engineered solutions for modern ESS, covering PCS conversion, high-voltage battery protection, DC/AC aggregation, and residential storage. Focused on safety, stability, grid compatibility, and reliability, our systems enable safe, efficient, and scalable energy storage.

Centralized Battery High-Voltage Box Solution Centralized Combiner Box Solution Centralized PCS Converter Solution String-Type 215 kW PCS Converter Solution C&I Energy-Storage Battery Cluster Solution C&I Energy-Storage PCS Converter Solution

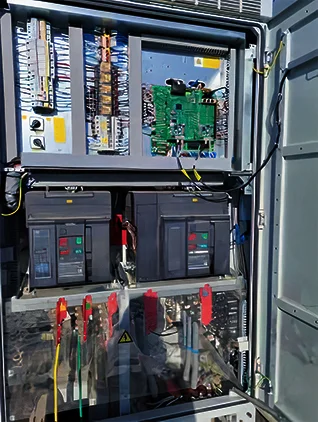

Centralized PCS Converter Solution

Pain Points in the Application Scenario

1.1Ie continuous overload capability on both AC and DC sides. AC-side high-voltage ride-through capability up to 1.3Ue for 0.5s. Current-carrying capability maintained at 5,000m altitude and 65°C ambient temperature. Grid-forming PCS supports AC-side 3Ie overload for 10s.

Value of the Solution

Exceptional short-time withstand capability up to 200kA/0.2s prevents downstream equipment damage from high-current surges, ensuring electrical-cabin safety. Reliable operation under high-altitude (5,000m) and high-temperature conditions. Superior overload capability ensures stable battery-cabin operation and prevents PCS overload–induced switching-device failures. Meets high-voltage ride-through requirements, preventing ESS converter testing and operational faults.

QuiSure Solution

NDW2GZ-2000 Series DC Disconnectors, Nader

NDW2GZ-2000 Disconnectors

DC Disconnectors available with rated currents of 800A, 1000A, 1250A, 1600A, and 2000A. Operational voltages include DC750V, DC1000V, and DC1500V. Options for 3P and 4P configurations. Short-circuit breaking capacities are 35kA, 52.5kA, and 80kA. Certified by CCC, CB, CE, and TUV.

NDW2GZ-4000 Series DC Disconnectors, Nader

NDW2GZ-4000 Series DC Disconnectors, Nader

DC Disconnectors available with rated currents of 1250A, 1600A, 2000A, 2500A, 3200A, and 4000A. Operational voltages include DC750V, DC1000V, and DC1500V. Options for 3P and 4P configurations. Short-circuit breaking capacities are 50kA, 52.5kA, and 100kA. Certified by CCC, CB, CE, and TUV.

NDW1A-2000 Series AC ACB, Nader

NDW1A-2000 Series AC ACB, Nader

AC ACB with rated current options: 400A, 630A, 800A, 1000A, 1250A, 1600A, 2000A. Rated operational voltage: AC220V/230V/240V, AC380V/400V/415V, AC660V/690V. Available in 3P and 4P configurations. Rated limit short-circuit breaking capacity: 65kA, 80kA. Certifications include CCC, CB, CE, TUV.

NDW1A-3200 Series AC ACB, Nader

NDW1A-3200 Series AC ACB, Nader

AC ACB with rated current options: 2000A, 2500A, 2900A, 3200A. Rated operational voltage: AC400V/415V, 690V. Available in 3P and 4P configurations. Rated limit short-circuit breaking capacity: 75kA, 100kA. Certified by CCC, CB, CE, TUV.

VPH888-12.5 (T1+T2) Series Type 1+2 AC SPD, VOZWEI

VPH888 AC SPD

The VPH888-12.5 is a high-voltage Type 1+2 AC SPD designed for comprehensive lightning and surge protection. With a Uc of 880V AC, it handles an Iimp of 12.5 kA (10/350 μs) and an Imax of 80 kA (8/20 μs). Featuring Up ≤ 3.4 kV, it is fully EN/IEC 61643-11 compliant. Ideal for demanding PV AC systems and high-voltage industrial infrastructure.

VPD1500-40 (T1+T2) Series Type 1+2 PV SPD, VOZWEI

VPD1500-40 (T1+T2) Series Type 1+2 PV SPD, VOZWEI

The VPD1500-40 is a specialized Type 1+2 PV SPD for high-voltage solar infrastructures. With a Uc of 1500V DC, it manages an Iimp of 6.25 kA (10/350 μs) and an Imax of 40 kA (8/20 μs). Featuring Up ≤ 5.0 kV, it is fully EN/IEC 61643-11 compliant. Designed to safeguard 1500V DC systems against both direct lightning impacts and induced surges.

Related products

NDW3A-2500 Series AC ACB, Nader

NDW3A-2500 Series AC ACB, Nader

ACB with rated currents of 1000A, 1250A, 1600A, and 2000A. Operational voltages: AC254V, 508V, 635V, 730V. 3 poles. Short-circuit breaking capacity: 65kA, 75kA. UL1066 certified.

NDG3A-3200Z Series DC Disconnectors, Nader

NDG3A-3200Z Series DC Disconnectors, Nader

DC Disconnectors with rated current In of DC 3200A and rated operational voltage Ue DC1500V. Features 2 poles (2P) design. Certified with CCC, CE, and TUV standards.

NDG3VH-500 Series DC Disconnectors, Nader

NDG3VH-500 Series DC Disconnectors, Nader

DC Disconnectors with rated operational current Ie 500A. Rated operational voltage Ue: DC1000/1500V. Available in 2P and 4P configurations. Certified by CCC, CE, and TUV.

DACN1-25VGS Series SPD, CITEL

DACN1-25VGS Series SPD, CITEL

Used in wind energy and energy storage, maximum operating voltage is AC760, nominal discharge current is 35kA, maximum discharge current is 70kA, and impulse current by pole (Iimp) is 25kA.

DAC50S Series SPD, CITEL

DAC50S Series SPD, CITEL

Used in the wind energy and energy storage, operating voltage is AC120V-AC400V, nominal discharge current (15 x 8/20 µs impulses) In is 20 kA, maximum discharge is 50kA,and total maximum discharge current (max. total withstand @ 8/20 µs )is 50kA.
