Energy Storage

QuiSure delivers engineered solutions for modern ESS, covering PCS conversion, high-voltage battery protection, DC/AC aggregation, and residential storage. Focused on safety, stability, grid compatibility, and reliability, our systems enable safe, efficient, and scalable energy storage.

Centralized Battery High-Voltage Box Solution Centralized Combiner Box Solution Centralized PCS Converter Solution String-Type 215 kW PCS Converter Solution C&I Energy-Storage Battery Cluster Solution C&I Energy-Storage PCS Converter Solution

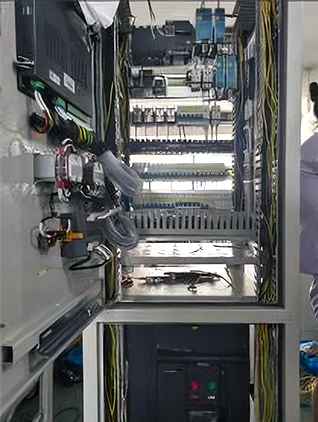

Centralized Combiner Box Solution

Pain Points in the Application Scenario

Maximum short-circuit current of 150kA requires robust isolation and short-time withstand capability at the combining point. DC-side 1.1Ie continuous overload capability ensures stable and safe system operation.

Value of the Solution

Exceptional short-time withstand capability up to 200kA/0.2s prevents downstream equipment damage from high battery short-circuit currents, ensuring electrical-cabin safety. Strong overload current capability ensures stable operation of the battery cabin and prevents PCS overload conditions that could lead to switching-device failures.

QuiSure Solution

NDW2GZ-2000 Series DC Disconnectors, Nader

NDW2GZ-2000 Disconnectors

DC Disconnectors available with rated currents of 800A, 1000A, 1250A, 1600A, and 2000A. Operational voltages include DC750V, DC1000V, and DC1500V. Options for 3P and 4P configurations. Short-circuit breaking capacities are 35kA, 52.5kA, and 80kA. Certified by CCC, CB, CE, and TUV.

NDW2GZ-4000 Series DC Disconnectors, Nader

NDW2GZ-4000 Series DC Disconnectors, Nader

DC Disconnectors available with rated currents of 1250A, 1600A, 2000A, 2500A, 3200A, and 4000A. Operational voltages include DC750V, DC1000V, and DC1500V. Options for 3P and 4P configurations. Short-circuit breaking capacities are 50kA, 52.5kA, and 100kA. Certified by CCC, CB, CE, and TUV.

VPD1000-40 (T1+T2) Series Type 1+2 PV SPD, VOZWEI

VPD1000-40 (T1+T2) Series Type 1+2 PV SPD, VOZWEI

The VPD1000-40 is a high-voltage Type 1+2 PV SPD providing dual-layered lightning and surge defense. Featuring a Uc of 1300V DC, it handles an Iimp of 6.25 kA (10/350 μs) and an Imax of 40 kA (8/20 μs). With Up ≤ 4.0 kV, it is fully EN/IEC 61643-11 compliant. Optimized for high-voltage solar strings.

VPD1500-40 (T1+T2) Series Type 1+2 PV SPD, VOZWEI

VPD1500-40 (T1+T2) Series Type 1+2 PV SPD, VOZWEI

The VPD1500-40 is a specialized Type 1+2 PV SPD for high-voltage solar infrastructures. With a Uc of 1500V DC, it manages an Iimp of 6.25 kA (10/350 μs) and an Imax of 40 kA (8/20 μs). Featuring Up ≤ 5.0 kV, it is fully EN/IEC 61643-11 compliant. Designed to safeguard 1500V DC systems against both direct lightning impacts and induced surges.

Related products

NDW3A-2500 Series AC ACB, Nader

NDW3A-2500 Series AC ACB, Nader

ACB with rated currents of 1000A, 1250A, 1600A, and 2000A. Operational voltages: AC254V, 508V, 635V, 730V. 3 poles. Short-circuit breaking capacity: 65kA, 75kA. UL1066 certified.

NDG3A-3200Z Series DC Disconnectors, Nader

NDG3A-3200Z Series DC Disconnectors, Nader

DC Disconnectors with rated current In of DC 3200A and rated operational voltage Ue DC1500V. Features 2 poles (2P) design. Certified with CCC, CE, and TUV standards.

NDG3VH-500 Series DC Disconnectors, Nader

NDG3VH-500 Series DC Disconnectors, Nader

DC Disconnectors with rated operational current Ie 500A. Rated operational voltage Ue: DC1000/1500V. Available in 2P and 4P configurations. Certified by CCC, CE, and TUV.

DACN1-25VGS Series SPD, CITEL

DACN1-25VGS Series SPD, CITEL

Used in wind energy and energy storage, maximum operating voltage is AC760, nominal discharge current is 35kA, maximum discharge current is 70kA, and impulse current by pole (Iimp) is 25kA.

DAC50S Series SPD, CITEL

DAC50S Series SPD, CITEL

Used in the wind energy and energy storage, operating voltage is AC120V-AC400V, nominal discharge current (15 x 8/20 µs impulses) In is 20 kA, maximum discharge is 50kA,and total maximum discharge current (max. total withstand @ 8/20 µs )is 50kA.
