NDB6LM-40 Series RCCB, Nader

Rated current In (A): 6A, 10A, 16A, 20A, 25A, 32A, 40A

Rated voltage Ue (V): AC230V

Poles: 1P+N

Breaking capacity (Icu): 10kA

Certifications: CCC, CB, CE, TUV

Documents:

Nader-NDB6LM-40-RCCB-Products-Specification.pdf

Solar Energy

Energy Storage

Telecom & Data Center

OEM

Product Description

Technical parameters:

Rated Voltage (Ue)	AC230V
Rated Current (In)	6A,10A,16A,20A,25A,32A,40A(regular); 25A,32A,40A(with time-delay)
Tripping Characteristic	B: 3~5In, C: 5~10In
Tripping curve	Type B, Type C
Rated Breaking Capacity (Icn)	10kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)	/
Rated Service Short-Circuit Breaking Capacity (Ics)	/
Number of Poles	1PN
Standards and Certificates	·CCC, CB, CE, TUV ·GB 16917.1, IEC 61009-1
Environmental Requirements	RoHS
Rated Insulation Voltage	/
Rated Impulse Withstand Voltage	4kV
Rated Frequency	50/60Hz
Wiring	·Adopt tunnel type wiring ·Connection capability: 1mm² to 25 mm² ·Nominal diameter screw:5mm ·Tighten screw torque:1.5N.m～2.5N.m
Mechanical Life	20000 times
Working Condition	·Ambient temperature: －25℃~＋40℃ ·Relative air humidity ≤95% ·Altitude ≤2000m ·Pollution degree: 2 ·Protection Degree: IP20 ·Service place without significant vibration and impact
Isolation function	·Practical breaking instructions ·View window within the green identification said contact in the off position

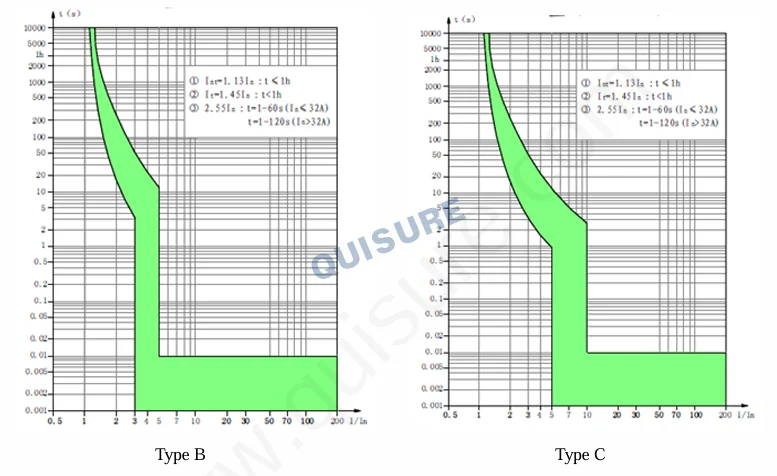

Tripping characteristic curve

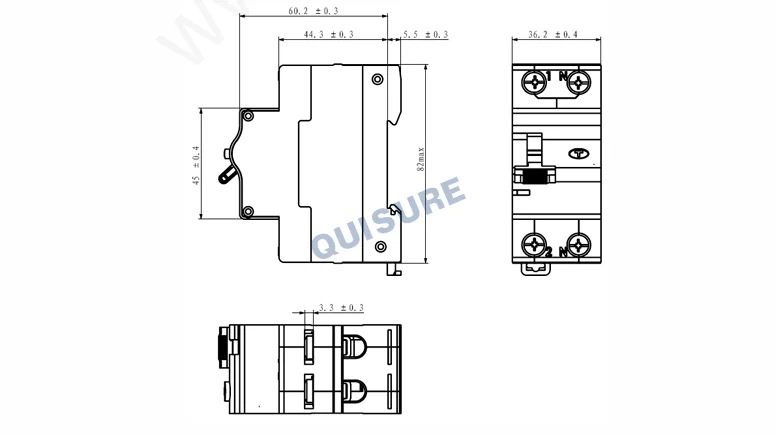

Outline and installation dimension

Packing and depositing:

·Quantity(7PCS/box,6 box/carton)

·Packing boxes of products should be stored in the air circulation and relative humidity is not more than 80% and the temperature is not higher than + 80 ℃，not less than - 40 ℃ in the air around without acid, external magnetic field should be 5 times less than geomagnetic field,alkali or other corrosive gases stored in the warehouse. In the above conditions, the storage period since the production date not more than three years.
