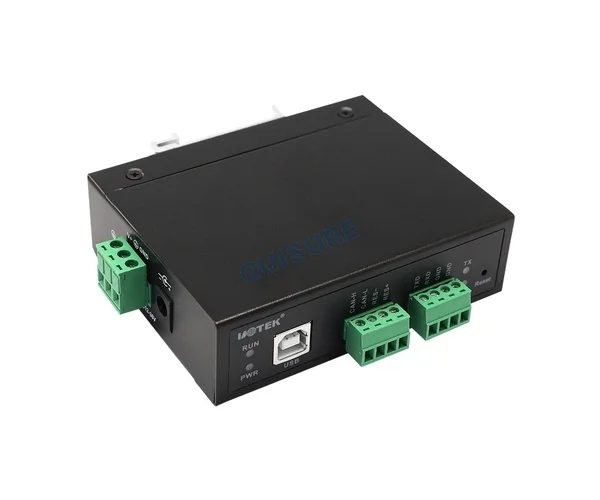

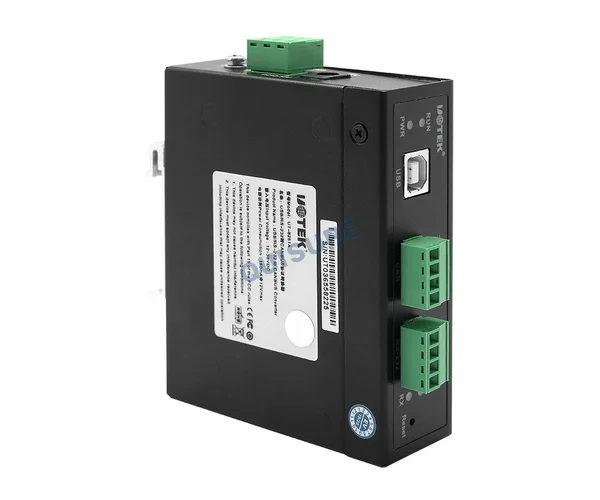

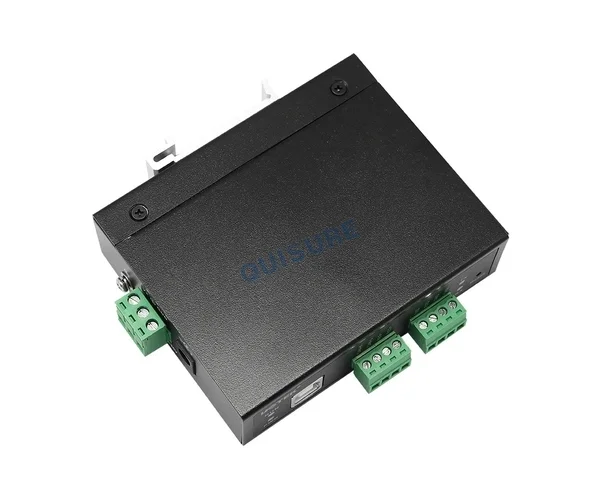

UT-8251A, CAN Device Networking, UTEK
USB/RS-232 to CANBUS
RS-232 terminal block
CAN BUS terminal block
CAN 2.0
600W surge protection
RS-232 300-250Kbps
CAN 5Kbps-1Mbps
USB 12Mbits
Input voltage: 12-36VDC/USB
Operating temp:-40℃ ~ 85℃
Specifications
|
Communication Parameters |
|
|
Communication Interface |
Bidirectional data transmission between CAN-bus and USB; between CAN-bus and RS-232 |
|
Supported Protocol |
CAN2.0 |
|
CAN-bus Interface |
1 CAN-bus port, supports 5Kbps–1Mbps customizable speed |
|
USB Interface |
1 USB 2.0 port (12Mbits) |
|
RS-232 Interface |
1 RS-232 port, supports 300bps–250Kbps customizable speed |
|
Electrical Characteristics |
|
|
Operating Voltage |
12–36V DC / USB powered |
|
Operating Current |
≤150mA@12V |
|
Isolation Voltage |
1000VDC |
|
ESD Protection |
Air 8kV, Contact 6kV |
|
Surge Protection |
Power port: 1.2/50us, Common mode 2kV, Differential mode 1kV; CAN port: 600W; RS-232 port: 600W |
|
Environmental Characteristics |
|
|
Operating Temperature |
-40~85℃ |
|
Storage Temperature |
-40~85℃ |
|
Operating Humidity |
5%–95% (Non-condensing) |
|
Storage Humidity |
5%–95% (Non-condensing) |
