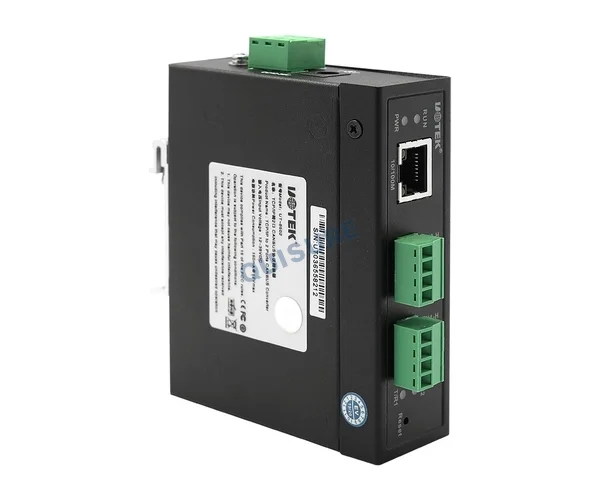

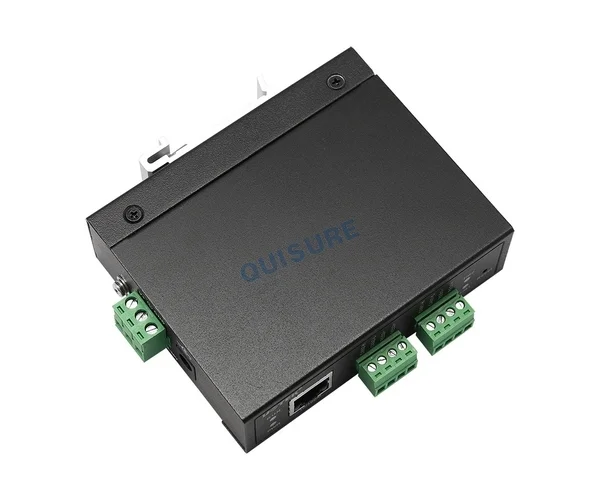

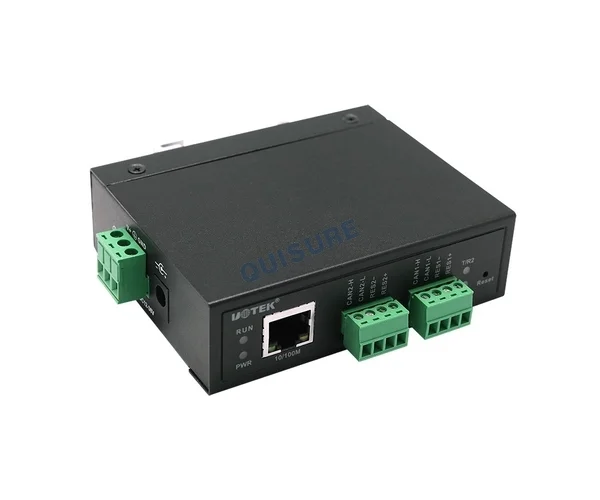

UT-6502, CAN Device Networking, UTEK

Communication Parameters

Communication Interface

Bidirectional data transmission between CAN-bus and network

Supported Protocol

CAN2.0

CAN-bus Interface

2 CAN-bus ports, supports 5Kbps–1Mbps communication rate

Ethernet Interface

1 10M/100M Ethernet port (100M fiber)

Electrical Characteristics

Operating Voltage

12–36V DC

Operating Current

≤200mA@12V

Isolation Voltage

1000VDC

ESD Protection

Air 8kV, Contact 6kV

Surge Protection

Power port: 1.2/50us, Common mode 2kV, Differential mode 1kV; Ethernet port: 10/700us, Common mode 2kV, Differential mode 1kV

Environmental Characteristics

Operating Temperature

-40~85℃

Storage Temperature

-40~85℃

Operating Humidity

5%–95% (Non-condensing)

Storage Humidity

5%–95% (Non-condensing)
