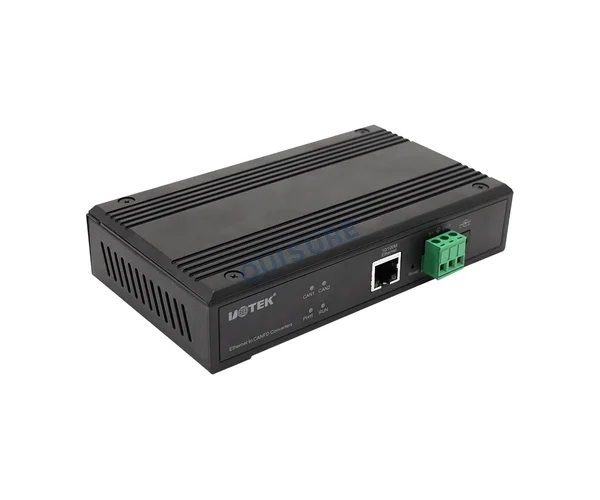

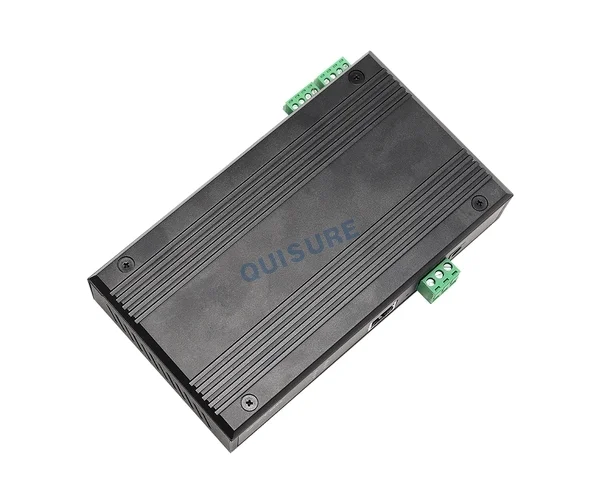

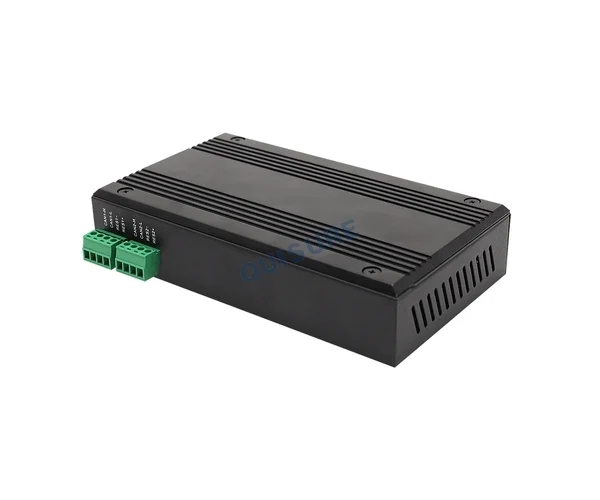

UT-6502-FD, CAN Device Networking, UTEK

Communication Parameters

Communication Interface

Bidirectional data transmission between CANFD-bus and network

Supported Protocols

CAN2.0, CANFDBUS

CANFD Interface

2 CANFD-bus ports, supports 5Kbps–5Mbps communication rate

Ethernet Interface

1 10M/100M Ethernet port

Electrical Characteristics

Operating Voltage

12–36V DC

Operating Current

≤300mA@12V

Isolation Voltage

1000VDC

ESD Protection

Level 3

Surge Protection

Power port: Level 3; Ethernet port: Level 3

Environmental Characteristics

Operating Temperature

-40~85℃

Storage Temperature

-40~85℃

Operating Humidity

5%–95% (Non-condensing)

Storage Humidity

5%–95% (Non-condensing)

Performance Parameters

Throughput

Each CANFD channel supports up to 1000 frames/s transmission; 3000 frames/s reception
