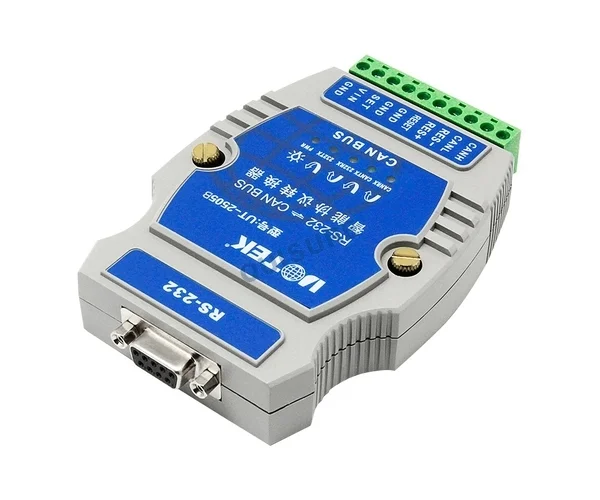

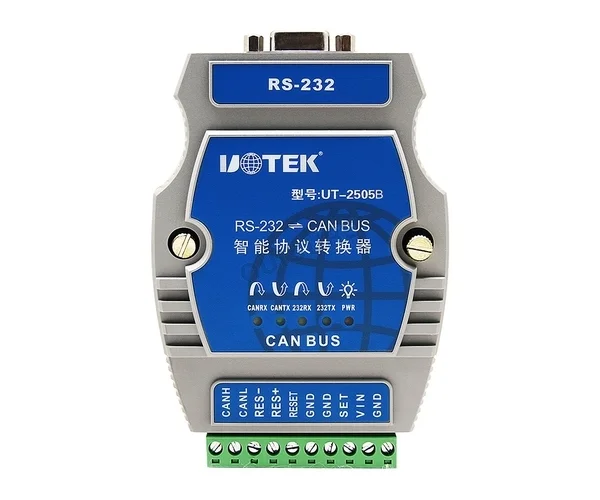

UT-2505B, CAN Device Networking, UTEK

Communication Parameters

Communication Interface

Bidirectional data transmission between CAN-bus and RS-232

Supported Protocol

CAN2.0

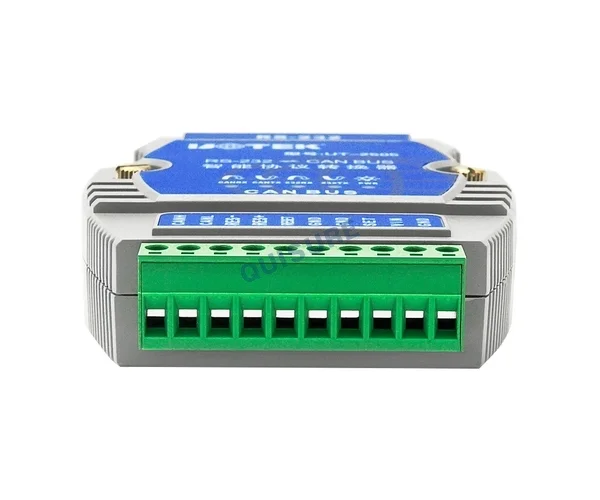

CAN-bus Interface

1 CAN-bus port, supports 5Kbps–1Mbps communication rate

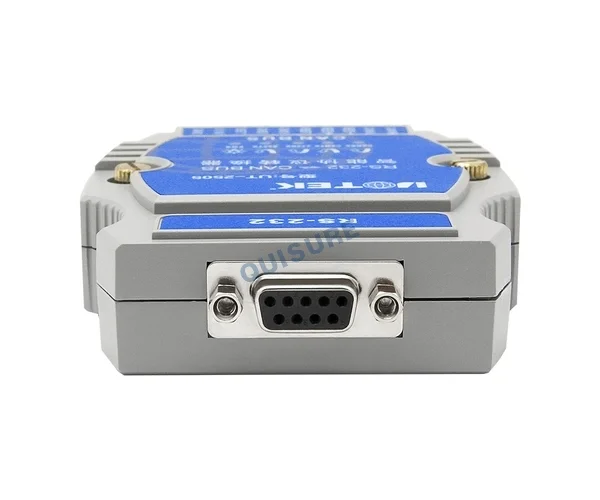

RS-232/485 Interface

1 RS-232/485 port, supports 600bps–230Kbps communication rate

Data Conversion Modes

Three modes: Transparent conversion, Transparent with ID, Modbus protocol conversion

Electrical Characteristics

Operating Voltage

12–36V DC

Operating Current

≤150mA@12V

Isolation Voltage

1000VDC

Environmental Characteristics

Operating Temperature

-40~85℃

Storage Temperature

-40~85℃

Operating Humidity

5%–95% (Non-condensing)

Storage Humidity

5%–95% (Non-condensing)
