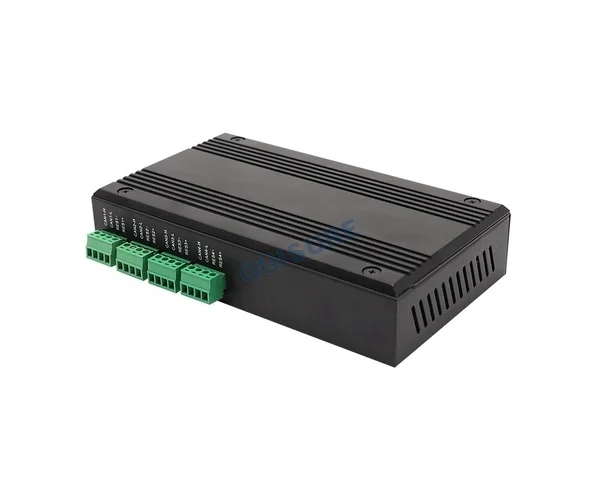

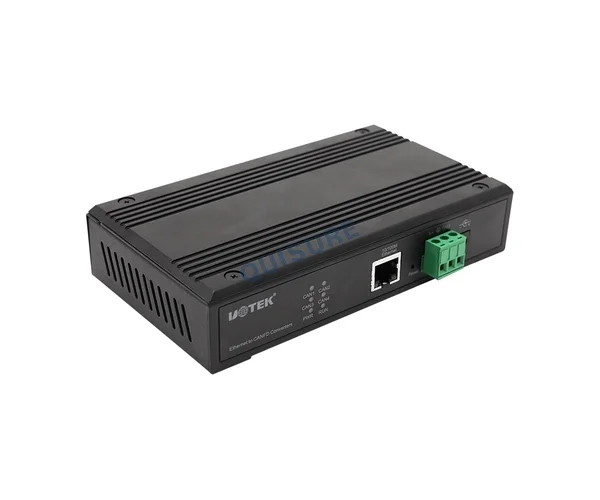

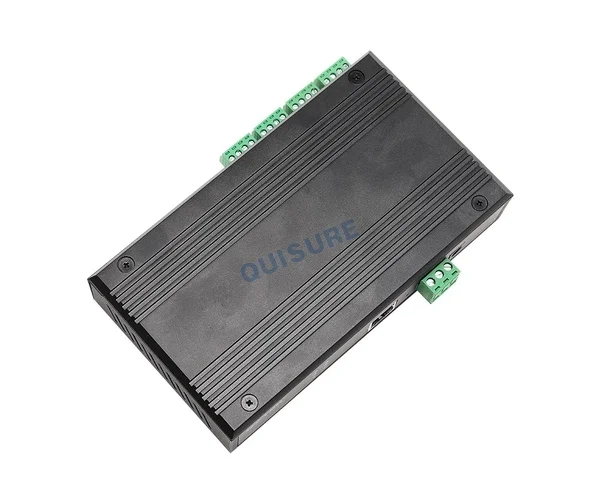

UT-6504-FD, CAN Device Networking, UTEK
100M TCP/IP to 4-port CANFD
CAN2.0, CAN FD
Transmission rate: 5Kbps-5Mbps
Input voltage: 12-36VDC
Isolated voltage: 1,000VDC
Operating temp: -40~+85℃
Specifications
|
Communication Parameters |
|
|
Communication Interface |
Bidirectional data transmission between CAN-bus and network |
|
Supported Protocols |
CAN2.0, CANFDBUS |
|
CAN-bus Interface |
4 CAN-bus-FD ports, supports 5Kbps–5Mbps communication rate |
|
Ethernet Interface |
1 10M/100M Ethernet port |
|
Electrical Characteristics |
|
|
Operating Voltage |
12–36V DC |
|
Operating Current |
≤200mA@12V |
|
Isolation Voltage |
1000VDC |
|
ESD Protection |
Level 3 |
|
Surge Protection |
Power port: Level 3; Ethernet port: Level 3 |
|
Environmental Characteristics |
|
|
Operating Temperature |
-40~85℃ |
|
Storage Temperature |
-40~85℃ |
|
Operating Humidity |
5%–95% (Non-condensing) |
|
Storage Humidity |
5%–95% (Non-condensing) |
|
Standards |
EN 61000-4-3 CS Power 3V/m, Ethernet 3V/m EN 61000-4-6 RS 10V/m EMI RE, CE: EN55032 Class A |
