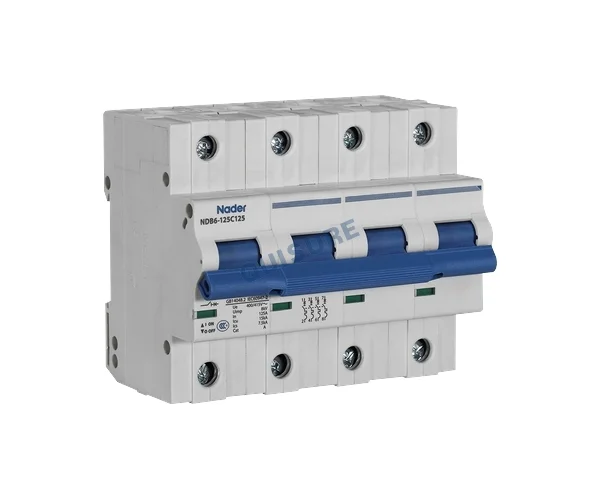

NDB6-125 Series AC/DC MCB, Nader - Image 1

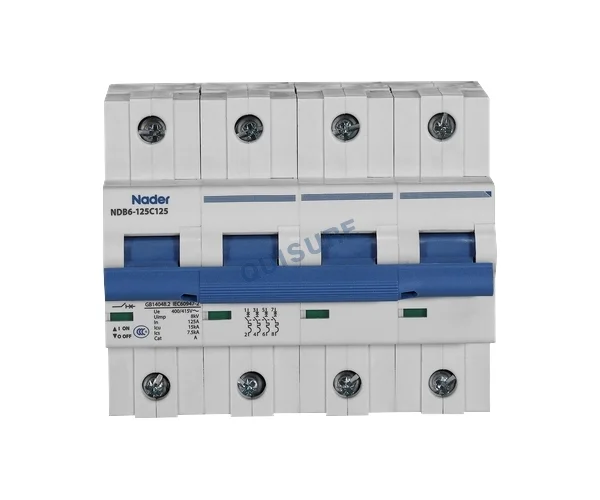

NDB6-125 Series AC/DC MCB, Nader - Image 2

NDB6-125 Series AC/DC MCB, Nader

Rated current In (A): 63A, 80A, 100A, 125A

Rated voltage Ue (V): AC230/240/400/415V, DC60/80/125V

Poles: 1P, 2P, 3P, 4P

Breaking capacity (Icu): 15kA

Certifications: CCC, CB, CE, TUV, SAA

Documents:

Nader-NDB6-125-AC-DC-MCB-Products-Specification.pdf

Solar Energy

Energy Storage

Product Description

Technical parameters:

Rated Voltage (Ue)	AC230/240V, DC60/80V(1P), AC400/415V (2P, 3P, 4P), DC80/125V (2P)
Rated Current (In)	C: 63A, 80A, 100A, 125A D: 63A, 80A, 100A
Tripping Characteristic	C: 8In（1±20%）, D: 12In（1±20%）
Tripping curve	Type C, Type D
Rated Breaking Capacity (Icn)	/
Rated Ultimate Short-Circuit Breaking Capacity (Icu)	15kA
Rated Service Short-Circuit Breaking Capacity (Ics)	7.5kA
Number of Poles	1P, 2P, 3P, 4P
Standards and Certificates	·CCC, CB, CE, TUV ·GB/T14048.2、IEC 60947-2
Environmental Requirements	RoHS
Rated Insulation Voltage	1000V
Rated Impulse Withstand Voltage	4kV
Rated Frequency	50/60Hz
Wiring	·Adopt tunnel type wiring ·Connection capability: 10mm² to 50 mm²
Mechanical Life	8500 times
Electrical Life	1500 times
Working Condition	·Ambient temperature: －40℃~＋70℃ ·Relative air humidity ≤95% ·Altitude ≤2000m ·Pollution degree: 3 ·Protection Degree: IP20 ·Service place without significant vibration and impact
Isolation function	·Practical breaking instructions ·View window within the green identification said contact in the off position

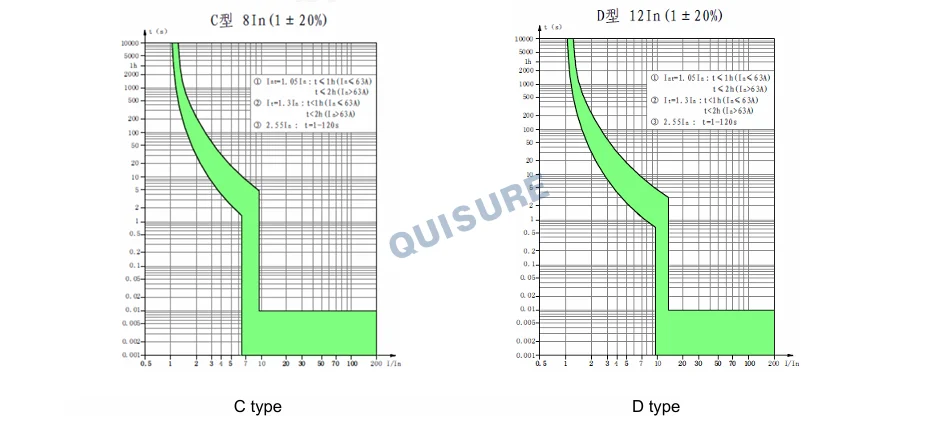

Tripping characteristic curve

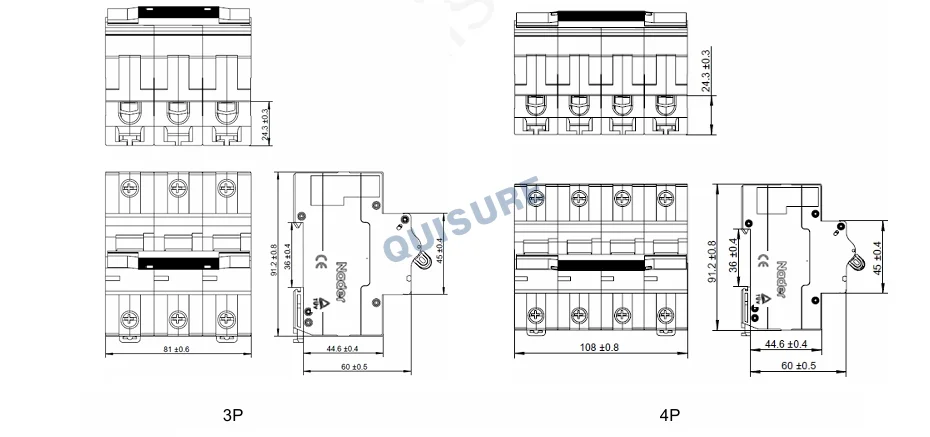

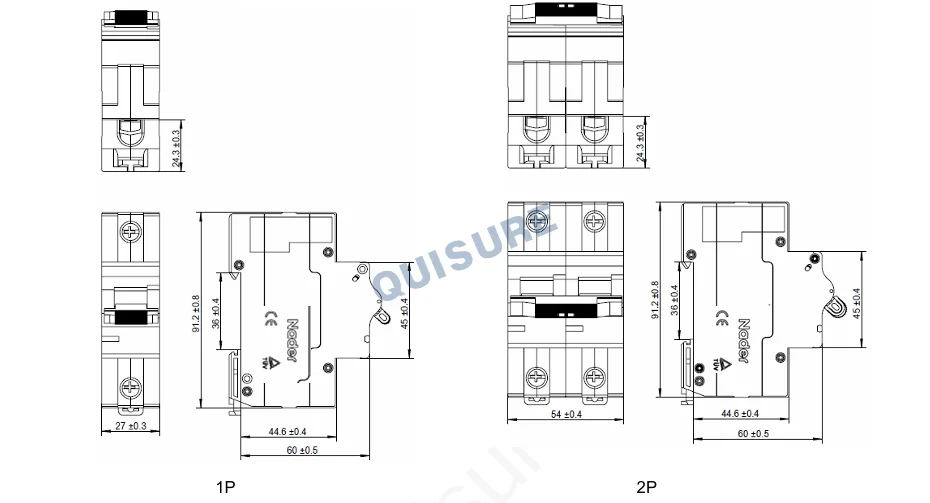

Outline and installation dimension

Packing and depositing:

·Quantity（1P product：12PCS/box，1PN/2P product：6PCS/box，3P product：4 PCS/box，3PN/4P product： 3PCS/box）

·Packing boxes of products should be stored in the air circulation and relative humidity is not more than 80% and the temperature is not higher than + 70 ℃，not less than - 40 ℃ in the air around without acid, alkali or other corrosive gases stored in the warehouse. In the above conditions, the storage period since the production date not more than three years.
