NDB1-40 Series AC MCB, Nader

Rated current In (A): 2A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A

Rated voltage Ue (V): AC230/240V

Poles: 1P+N

Breaking capacity (Icu): 6kA

Certifications: CCC, CB, CE, TUV

Product Description

Technical parameters:

Rated Voltage	AC230V/240V
Rated Current	2A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A
Tripping Characteristic	B：3In～5In, C：5In～10In, D：10In～14In
Tripping curves	B type curve, C type curve, D type curve
Rated Breaking Capacity (Icn)	6kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)	6kA
Rated Service Short-Circuit Breaking Capacity (Ics)	6kA
Number of Poles	1PN
Standards and Certificates	·CCC、CB、CE、TUV ·GB/T 10963.1，IEC60898-1
Environmental Requirements	RoHS
Rated Insulation Voltage	500V
Rated Impulse Withstand Voltage	4kV
Rated Frequency	50/60Hz
Wiring	·Adopt tunnel type wiring Version ·The wiring capacity: 1～10mm² conducting wire ·Terminal screw: M4; Maximum ultimate torque: 1.2N.m
Mechanical Life	20000 times
Electrical Life	10000 times
Working Condition	·Ambient temperature -40℃～+70℃ ·Storage temperature: －40℃~+80℃ · Heat and humidity resistance：The relative air humidity ≤95% at the temperature of +55℃ ·Altitude ≤2000m ·Pollution degree：2 ·Free from obvious vibration or shock ·Protection Degree: IP20
Isolation function	·Practical breaking instructions ·View window within the green identification said contact in the off position

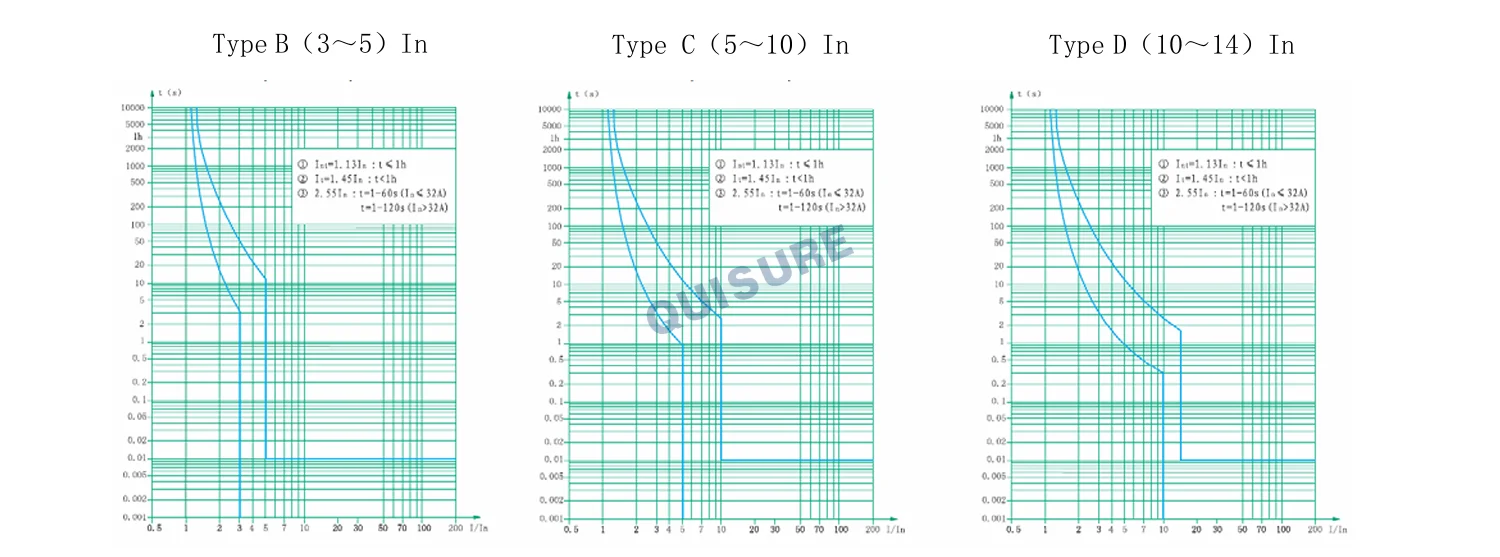

Tripping characteristic curve

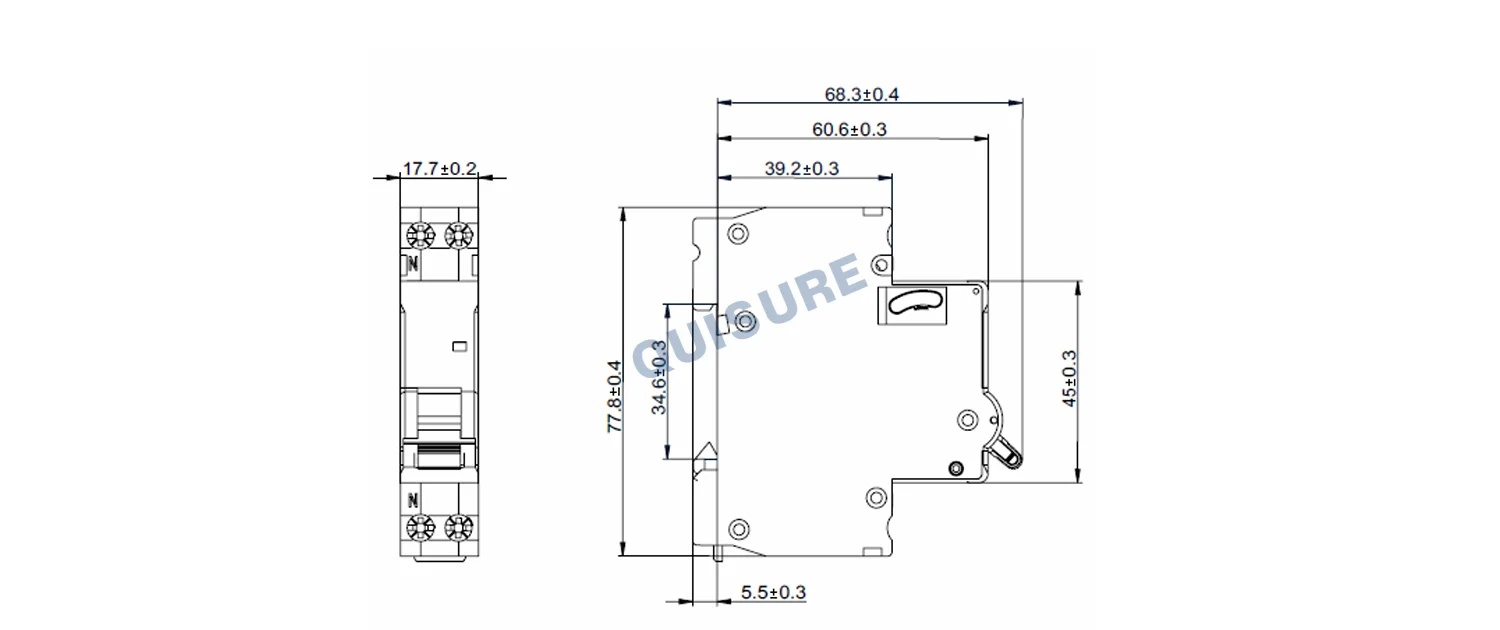

Outline and installation dimension

Packing and depositing:

·Quantity:12PC/box

·Packing boxes of products should be stored in the air circulation and relative humidity is not more than 80% and the temperature is not higher than + 80 ℃, not less than - 40 ℃ in the air around without acid, alkali or other corrosive gases stored in the warehouse. In the above conditions, the storage period since the production date not more than three years.
