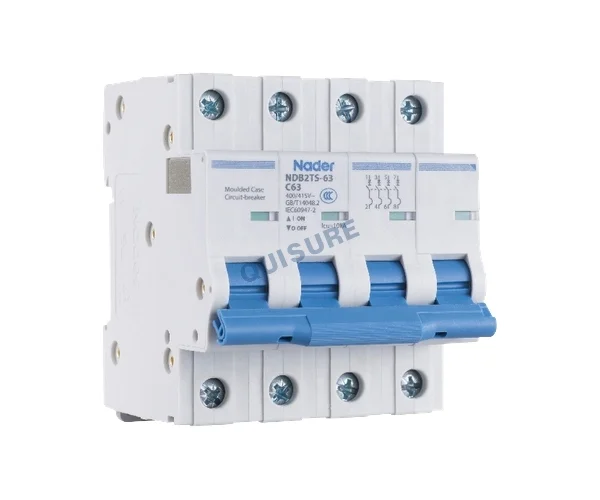

NDB2TS-63 Series AC/DC MCB, Nader - Image 1

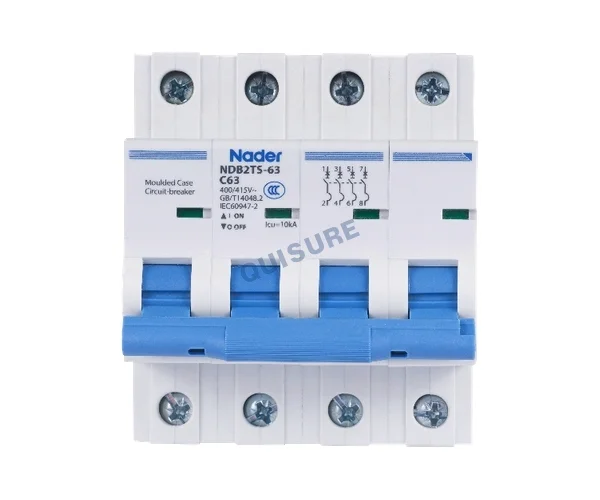

NDB2TS-63 Series AC/DC MCB, Nader - Image 2

NDB2TS-63 Series AC/DC MCB, Nader

Rated current In (A): 2A, 3A, 4A, 5A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 60A, 63A

Rated voltage Ue (V): AC230/240/400/415V, DC60/80/125V

Poles: 1P, 2P, 3P, 4P

Breaking capacity (Icu): 10kA

Certifications: CCC, CE, TUV, CB

Product Description

Technical parameters:

Rated Voltage (Ue)	CCC、CE、TUV： AC230/240 (1P) , AC400/415 (2/3/4P), DC60/80 (1P), DC80/125 (2P)
Rated Current (In)	1A, 2A, 3A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
Tripping Characteristic	B：(4±20%)In, C：(8±20%)In, D：(12±20%)In
Tripping curve	B curve, C curve, D curve
Rated Breaking Capacity (Icn)	/
Rated Ultimate Short-Circuit Breaking Capacity (Icu)	CCC、CE、TUV：10kA
Rated Service Short-Circuit Breaking Capacity (Ics)	·7.5kA (AC230/240(1P), AC400/415V(2,3,4P)) ·10kA (DC60/80V(1P), DC80/125V(2P))
Number of Poles	1P、2P、3P、4P
Standards and Certificates	·CCC、CE、TUV、 CB ·GB/T 14048.2 IEC 60947-2
Environmental Requirements	RoHS
Rated Insulation Voltage	AC 1000V
Rated Impulse Withstand Voltage	4kV
Rated Frequency	50/60Hz
Wiring	·Connection capability: 1mm² to 35 mm², 2 AWG,Max ·Connection screw M5, Torque: 2.0N.m
Mechanical Life	20000 times
Electrical Life	10000 times
Working Condition	·Ambient temperature: －40℃~＋70℃ ·Storage temperature: －40℃~+80℃ ·Relative air humidity ≤95% ·Altitude ≤2000m ·Pollution degree: 3 ·Protection Degree: IP20

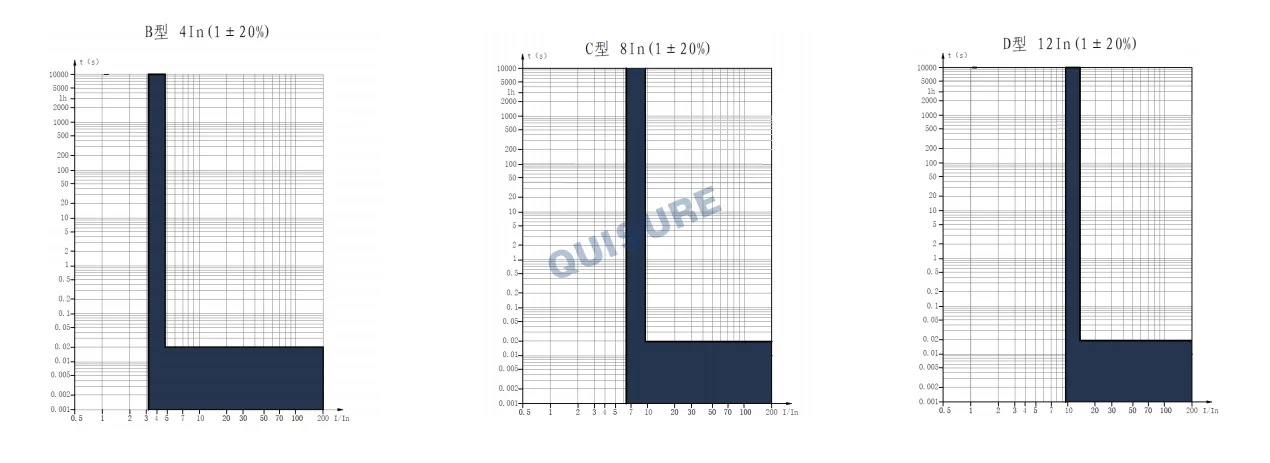

Tripping characteristic curve

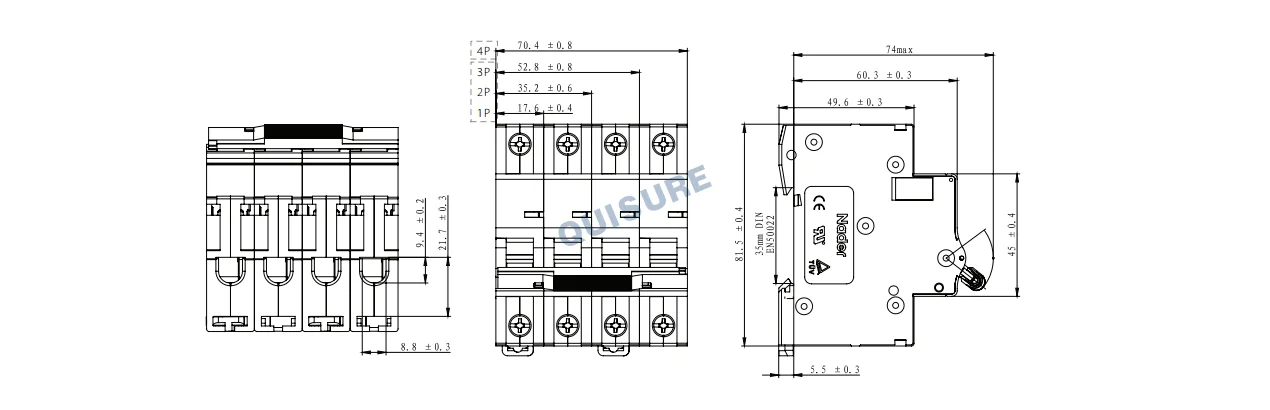

Outline and installation dimension

Packing and depositing:

·Quantity（1P product：12PCS/box，2P product：6PCS/box，3P product：4 PCS/box，4P product：3PCS/box）

·Packing boxes of products should be stored in the air circulation and relative humidity is not more than 80% and the temperature is not higher than + 70 ℃，Not less than - 40 ℃ in the air around without acid, alkali or other corrosive gases stored in the warehouse. In the above conditions, the storage period since the production date not more than three years.
