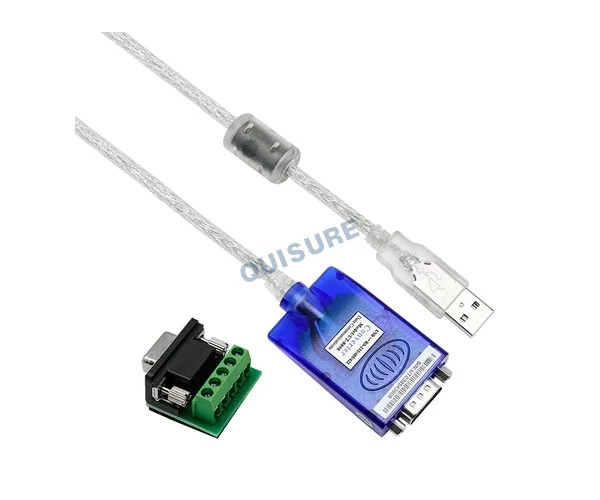

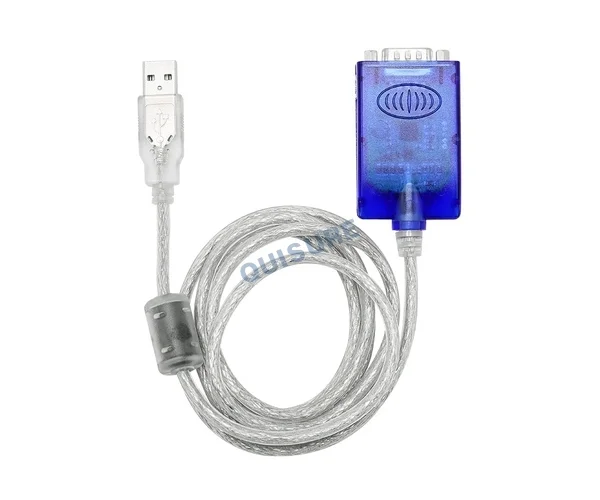

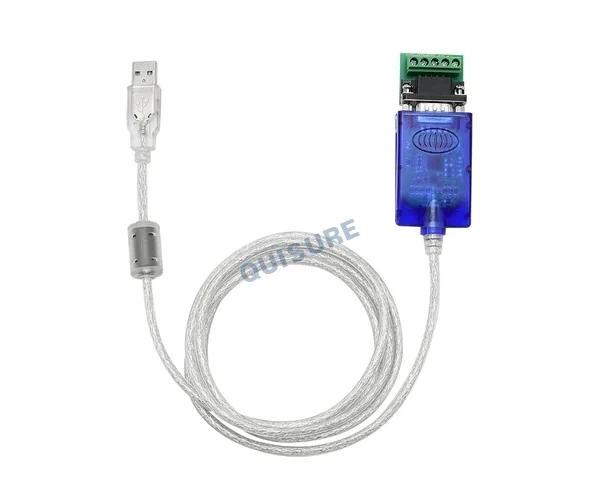

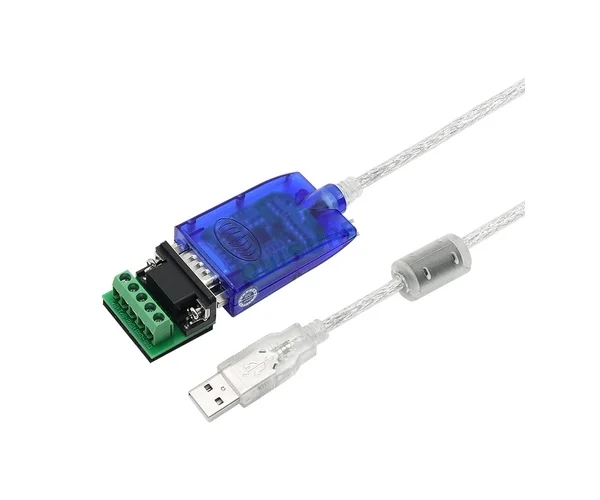

UT-8890, Interface Converter, UTEK
USB to RS-232/485/422,3 in 1
USB-A 2.0, male
Serial port DB9 male & terminal block
Baud rate: 300-921,600bps
Operating temp: -40℃ ~ 85℃
Features
- Point-to-point / four-wire full duplex
- Point-to-multipoint / four-wire full duplex
- Point-to-point / two-wire half duplex
- Point-to-multipoint / two-wire half duplex: When the converter operates in full-duplex or half-duplex mode, a terminal matching resistor (120Ω 1/4W) should be connected to prevent signal reflection and interference.
Specifications
|
Standard |
Compliant with USB V1.1 and 1.0, EIA RS-232/485/422 standards, backward compatible with 2.0 |
|
USB Signal |
VCC, DATA+, DATA-, GND, FG |
|
RS-232 Signal |
RXD, TXD, DTR, GND, DSR, RTS, CTS |
|
RS-485 Signal |
T/R+, T/R-, GND |
|
RS-422 Signal |
T/R+, T/R-, RXD+, RXD-, GND |
|
Operation Mode |
Asynchronous operation, point-to-point or multipoint, 2-wire half-duplex, 4-wire full-duplex |
|
Flow Control |
Automatic data flow control, automatic detection and direction management |
|
Baud Rate |
300bps–921.6Kbps, automatically detects serial signal rate |
|
Load Capacity |
Supports up to 128 RS-422/RS-485 devices per converter |
|
Transmission Distance |
RS-232 port 5m, USB port ≤5m RS-485/422 port 1200m (at 9600bps), USB port ≤5m |
|
Protection |
200W surge protection (RS-232/485/422) |
|
Interface Type |
USB Type-A male connector, DB9 male connector |
|
3 LEDs |
Power (PWR), Transmit (TXD), Receive (RXD) |
|
Transmission Medium |
Twisted pair or shielded cable |
|
Dimensions |
1500mm × 36mm × 16mm (L × W × H) |
|
Operating Environment |
-40℃ to 85℃, relative humidity 5%–95% |
|
Supported Systems |
Windows XP/7/8/8.1/10/Linux |
