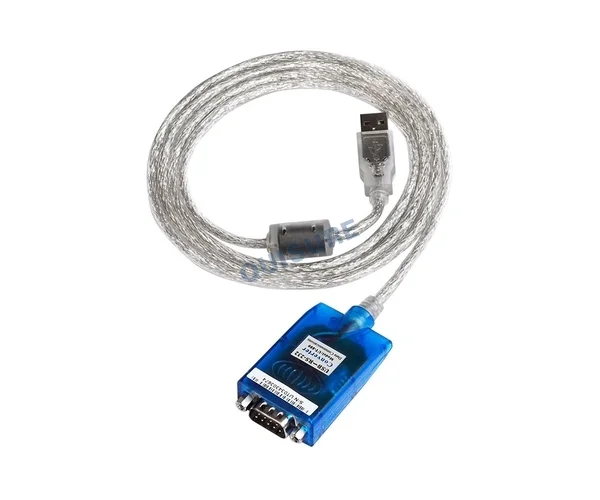

UT-880, Interface Converter, UTEK

Standard

Compliant with USBV1.1, 1.0, 2.0 and EIA RS-232 standards

USB Signal

VCC, DATA-, DATA+, GND, FG

RS-232 Signal

DCD RXD TXD DTR GND DSR RTS CTS RI

Working Mode

Asynchronous operation, point-to-point communication

Direction Control

Automatic flow control, auto-detect and manage data transmission direction

Baud Rate

300–460800bps, auto-detect serial signal rate

Load Capability

Supports host-to-host communication mode

Transmission Distance

RS-232 port ≤5m, USB port ≤5m

Interface Protection

Surge protection, ±15KV ESD protection

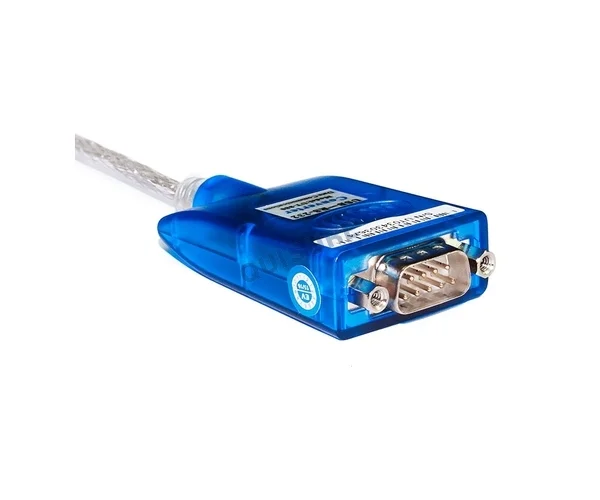

Interface Type

USB Type-A male connector, DB9 male connector

Signal Indicators

2 LEDs for TXD/RXD and 1 Power LED (POWER)

Transmission Medium

Twisted pair or shielded cable

Dimensions

1500mm×36mm×16mm (L×W×H)

Operating Environment

-40℃ to 85℃, relative humidity 5%–95%

System Support

Win98/Win2000/WinXP/Vista/Win7/8/8.1/10/Linux
