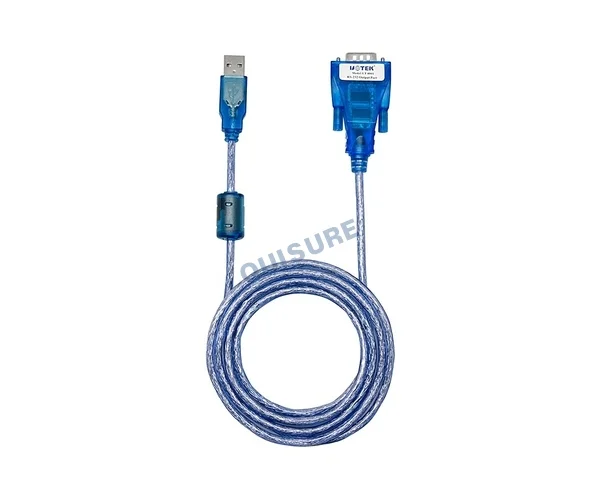

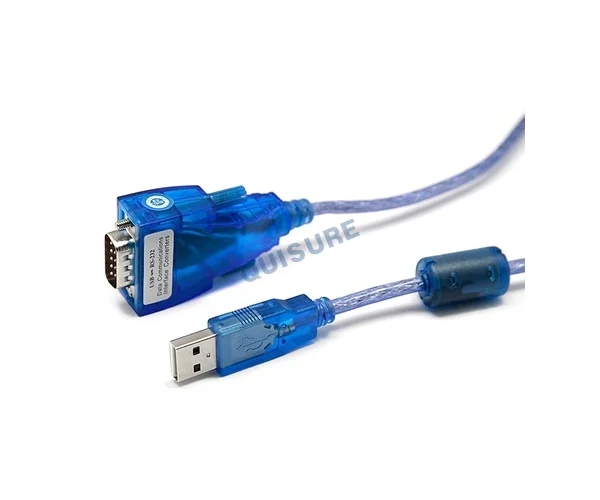

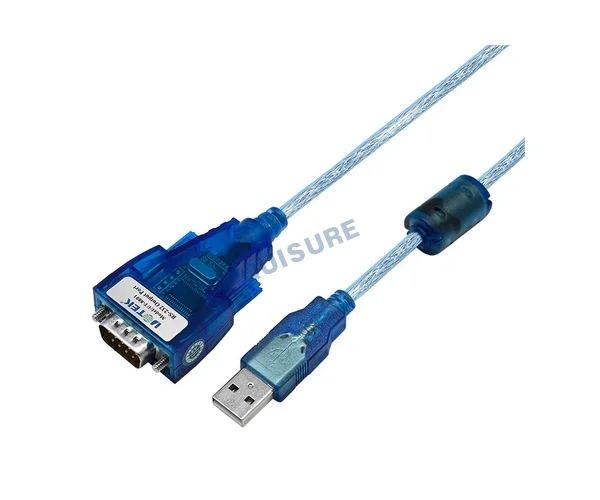

UT-8801, Interface Converter, UTEK

Standard

Complies with USBV1.1, 1.0, 2.0 and EIA RS-232 standard

USB Signal

VCC, DATA-, DATA+, GND, FG

RS-232 Signal

DCD RXD TXD DTR GND DSR RTS CTS RI

Working Mode

Asynchronous operation, point-to-point communication

Flow Control

Automatic data flow control, auto-detect and manage data transmission direction

Baud Rate

300-460800bps, auto-detect serial signal rate

Load Capacity

Supports point-to-point communication mode

Transmission Distance

RS-232 up to 5m, USB not exceeding 5m

Interface Protection

±15KV ESD protection

Connector Type

USB Type-A male, DB9 male connector interface

LED Indicators

2 LEDs for TXD/RXD and 1 power indicator (POWER)

Transmission Medium

Twisted pair or shielded cable

Dimensions

1530mm×33mm×16mm

Operating Environment

-40℃ to 85℃, relative humidity 5%–95%

Operating System

Supports Windows95/98/2000/2008/xp/Vista/win7, IMAG
