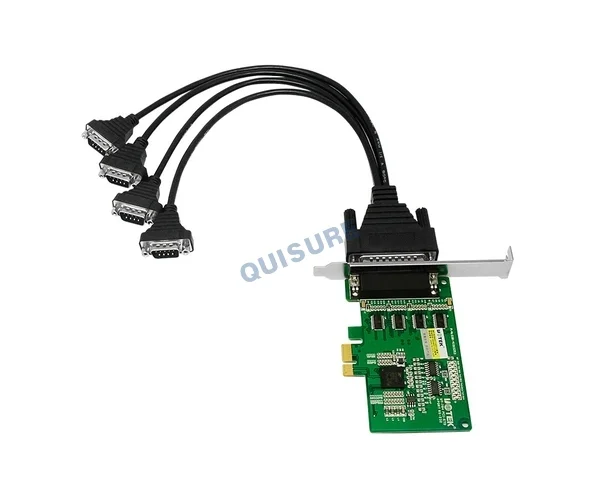

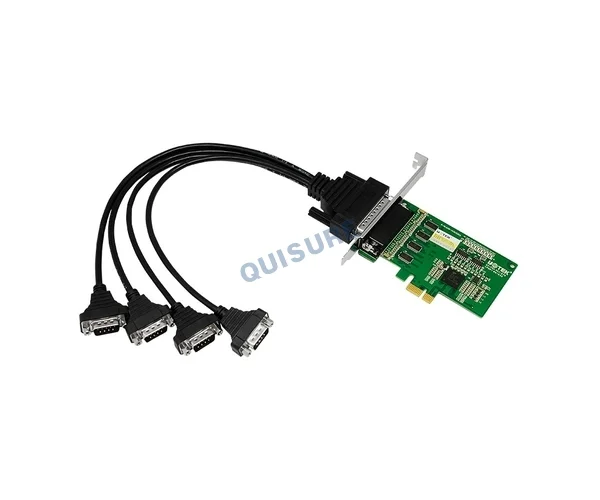

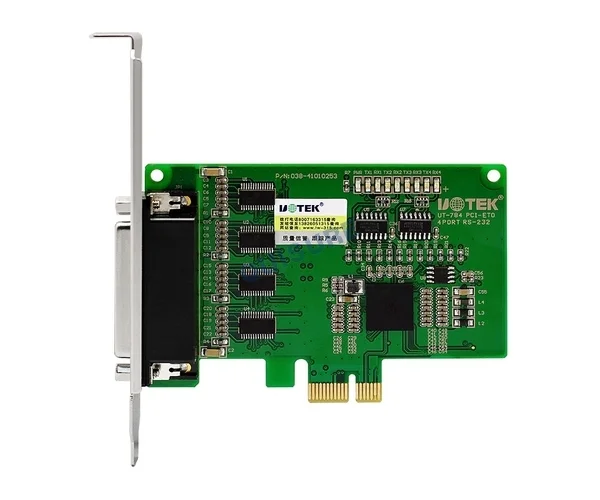

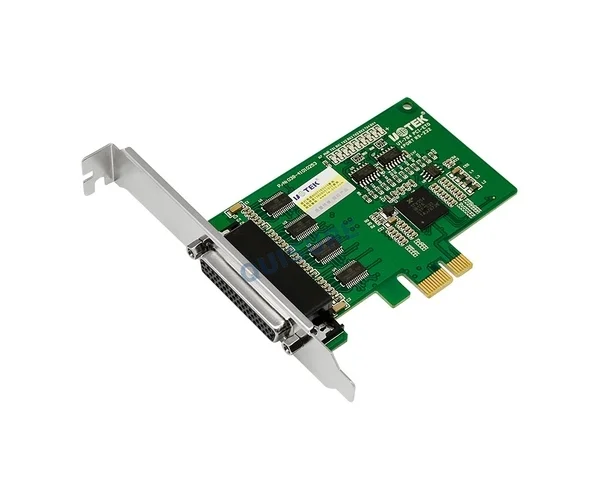

UT-784, Multi Serial Port Module, UTEK

4-Port Industrial RS-232 PCI-E multi-serial card

X1 2.5Gbps PCI Express

RS-232：DCD, RXD, TXD, DTR, GND, DSR, RTS, CTS, RI

Baud rate: 300bps-921.6Kbps

Operating temp: -40℃～85℃

Specifications

Hardware Interface
Connection Type	1×DR44 female
Bus	X1 2.5Gbps PCI Express
Signal
RS-232	DCD, RXD, TXD, DTR, GND, DSR, RTS, CTS, RI
Baud Rate	300bps–921.6Kbps
Data Bits	5, 6, 7, 8
Stop Bits	1, 1.5, 2
Parity	None, Even, Odd, Space, Mark
Flow Control	RTS/CTS, XON/XOFF
Operating Temperature	-40℃~85℃
Supported Systems	Win2000/XP/Vista/Win7/NT4.0/CE4.2/5.0/6.0/VxWorks/Linux2.4.x/2.6.x
Description	RS-232 port speed up to 921.6Kbps, supports 256-byte FIFO driver and built-in hardware/software flow control, compatible with standard PCI-E interface.
