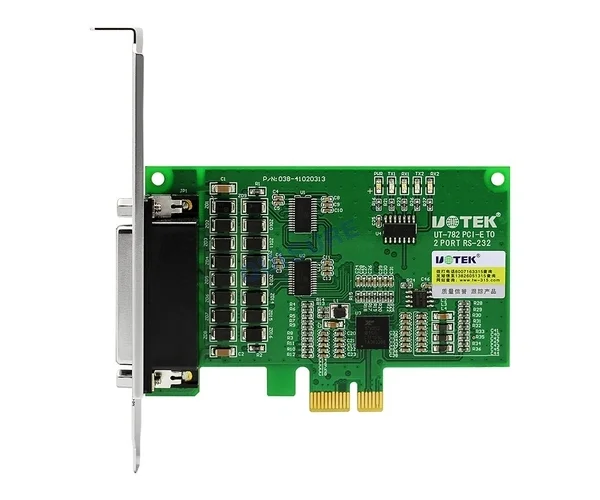

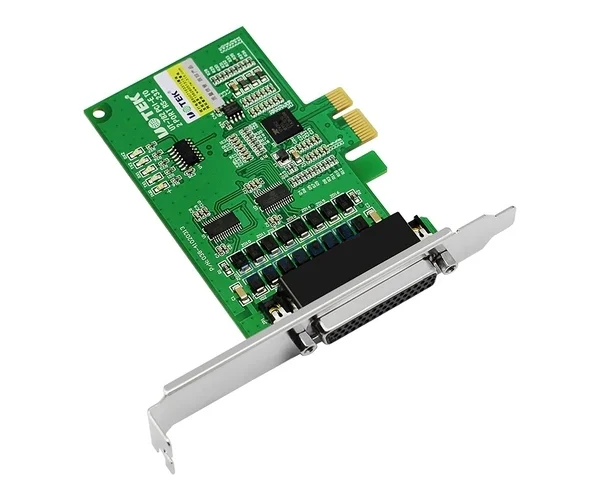

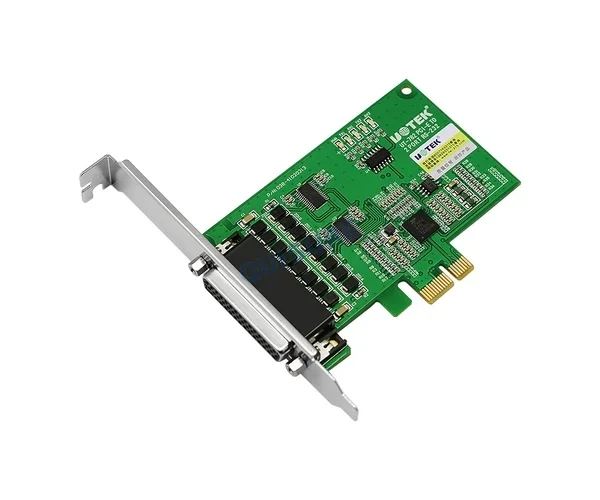

UT-782, Multi Serial Port Module, UTEK

PCI-E to 2-Port RS-232 High-Speed multi-serial card

X1 2.5Gbps PCI Express

RS-232: DCD, RXD, TXD, DTR, GND, DSR, RTS, CTS, RI

Baud rate: 300bps-921.6Kbps

600W surge protection, ±15KV ESD

Operating temp: -40℃～85℃

Specifications

Hardware Interface
Connection Type	1×DR44 female
Bus	X1 2.5Gbps PCI Express
Signal
RS-232	DCD, RXD, TXD, DTR, GND, DSR, RTS, CTS, RI
Baud Rate	300bps–921.6Kbps
Data Bits	5, 6, 7, 8
Stop Bits	1, 1.5, 2
Parity	None, Even, Odd, Space, Mark
Flow Control	RTS/CTS, XON/XOFF
Operating Temperature	-40℃~85℃
Interface Protection	RS-232 lines with 600W surge protection, ±15KV ESD protection
Transmission Distance	RS-232 communication distance up to 15m
Supported Systems	Win2000/XP/Vista/Win7/NT4.0/CE4.2/5.0/6.0/VxWorks/Linux2.4.x/2.6.x
