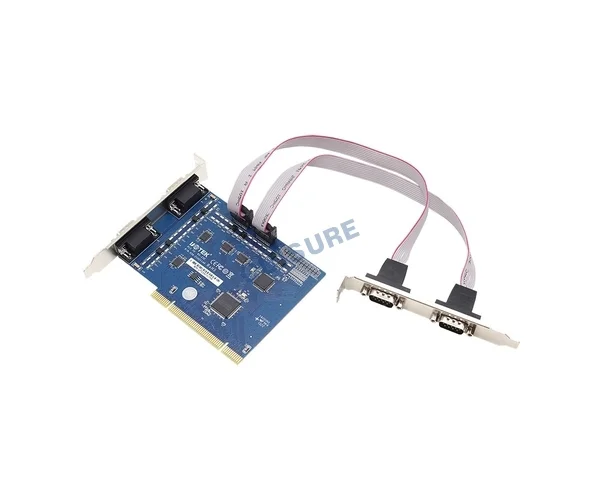

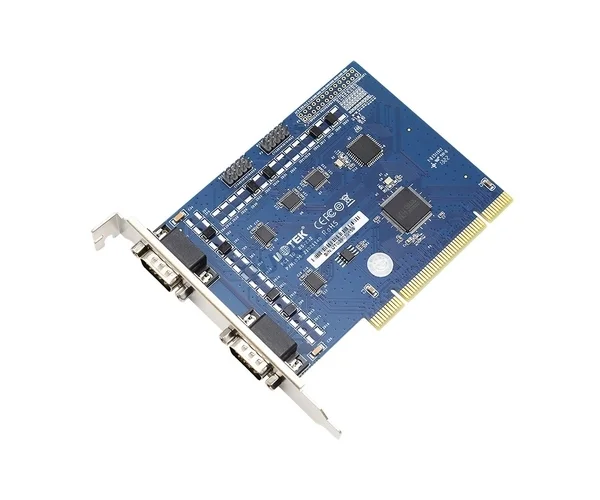

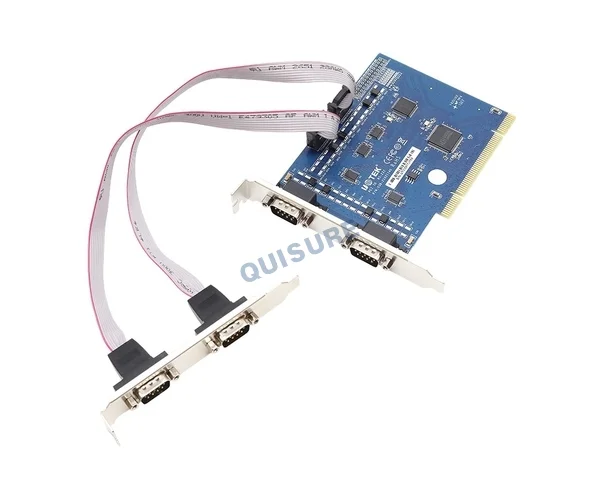

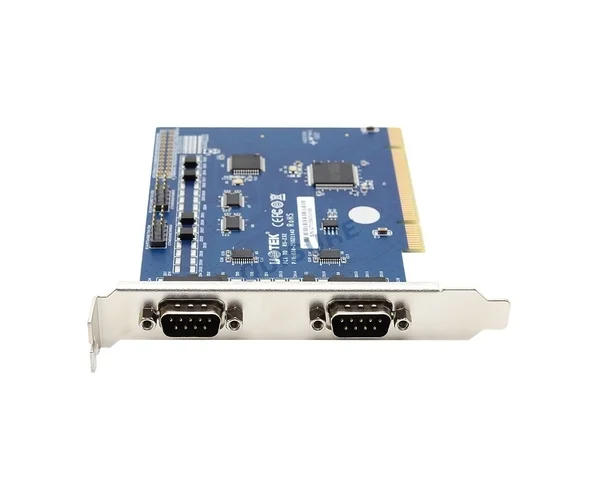

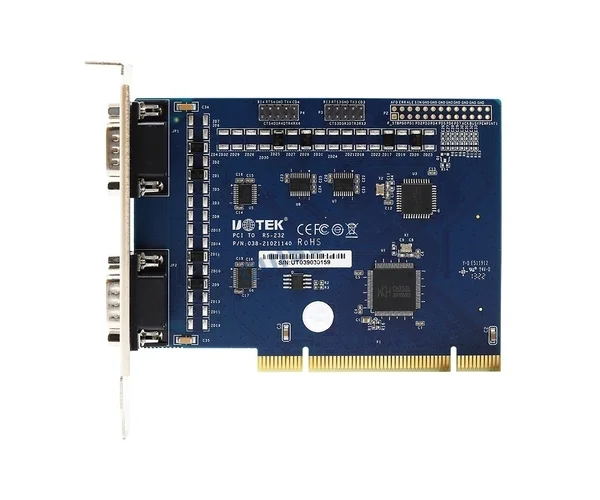

UT-7704, Multi Serial Port Module, UTEK

PCI to 4-Port RS-232 multi-serial card

2×DB9 male + 2×Ribbon DB9 male

PCI bus

RS-232: DCD, RXD, TXD, DTR, GND, DSR, RTS, CTS, RI

600W surge protection

Baud rate: 300bps–115.2Kbps

Operating temp: -20℃ ~ 75℃

Specifications

Hardware Interface
Connection Type	2×DB9 male, ribbon cable 2×DB9 male
Bus	PCI
Signal
RS-232 Signals	DCD, RXD, TXD, DTR, GND, DSR, RTS, CTS, RI
Baud Rate	300bps–115.2Kbps
Data Bits	5, 6, 7, 8
Stop Bits	1, 2
Parity	Supports Odd, Even, None, Space 0, Mark 1
Flow Control	RTS/CTS, XON/XOFF
Operating Temperature	-20℃~75℃
Interface Protection	RS-232 signal lines with 600W surge protection
Supported Systems	Windows 2012/8/8.1/2016/10/XP/Vista/7/2003/2008/98/NT4.0 and Linux
