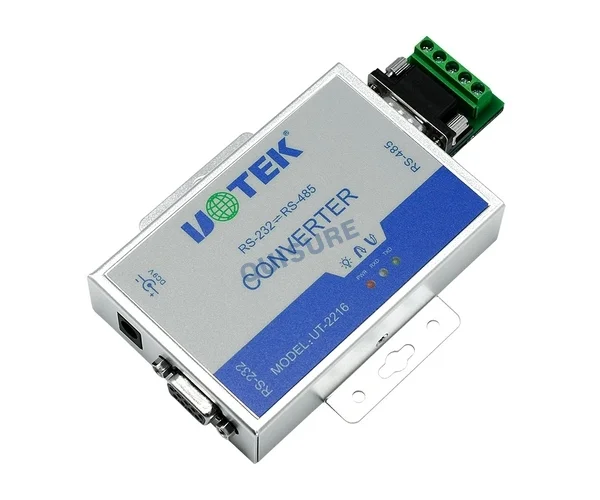

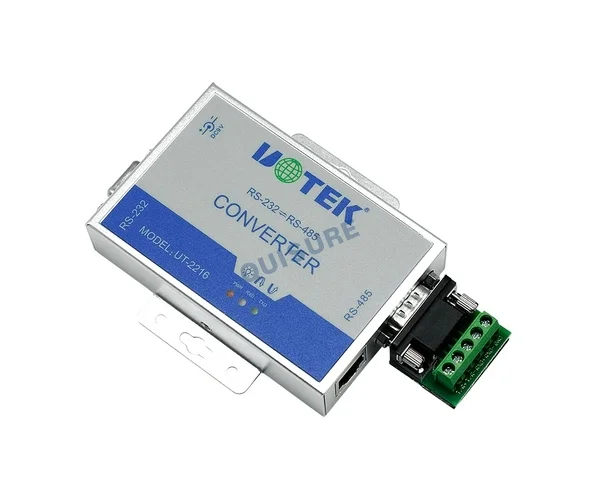

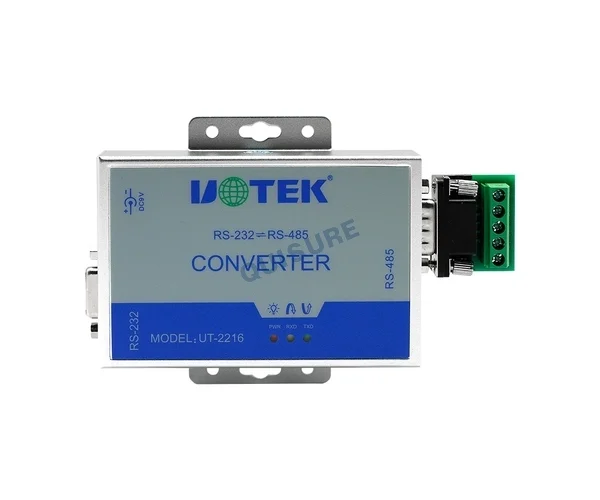

UT-2216, Interface Converter, UTEK

Interface Compatibility

Compliant with EIA/TIA RS-232C and RS-485 standards

Electrical Interface

RS-232 Port

Input DB9 female connector

RS-485 Port

Output DB9 male connector / RJ45 connector

Protection Level

600W surge protection per line on RS-485 interface

Transmission Type

Asynchronous half-duplex

Signal Indicators

Three LEDs: Power (PWR), Transmit (TXD), Receive (RXD)

Transmission Medium

Twisted pair or shielded cable

Transmission Rate

Rate Range

115.2kbps up to 300m

Lower Rate

38.4kbps up to 600m

Lowest Rate

9600bps up to 1.2km

Dimensions

97mm×87mm×22mm±1mm

Operating Environment

Temperature

-25℃ to 70℃

Humidity

5% to 95% RH

Transmission Distance

1,200m (115200bps~9600bps)
