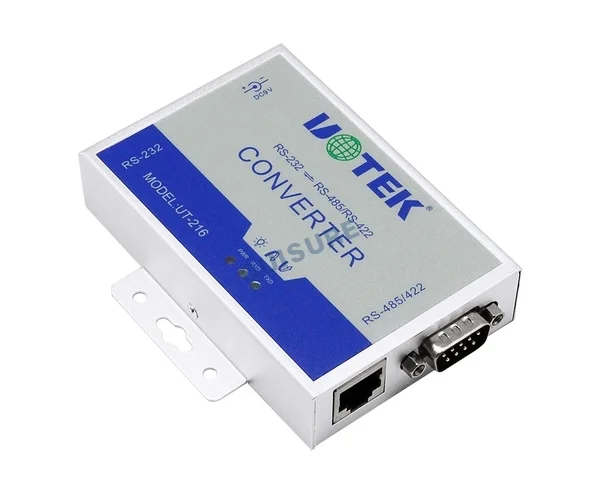

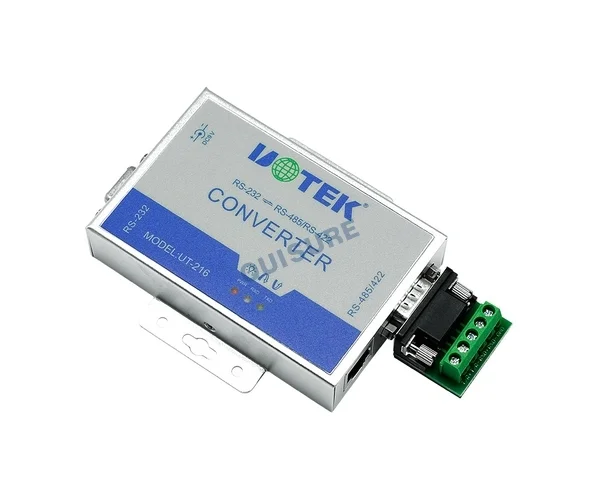

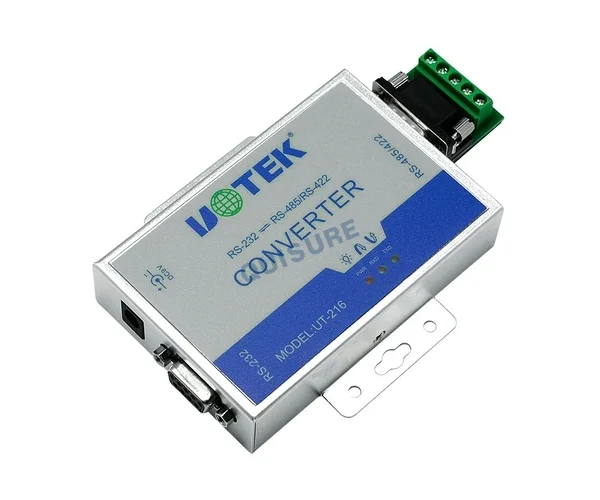

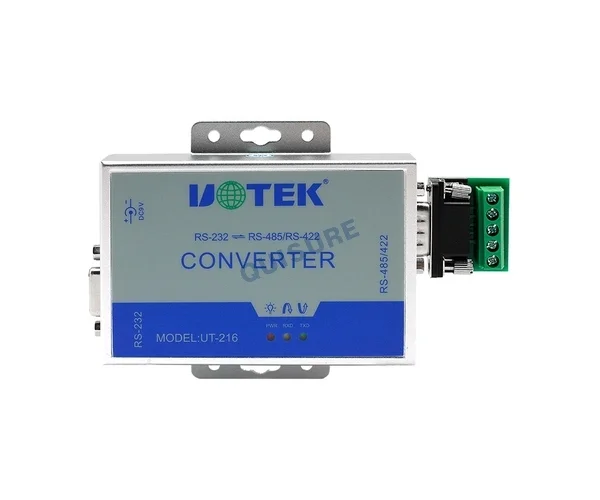

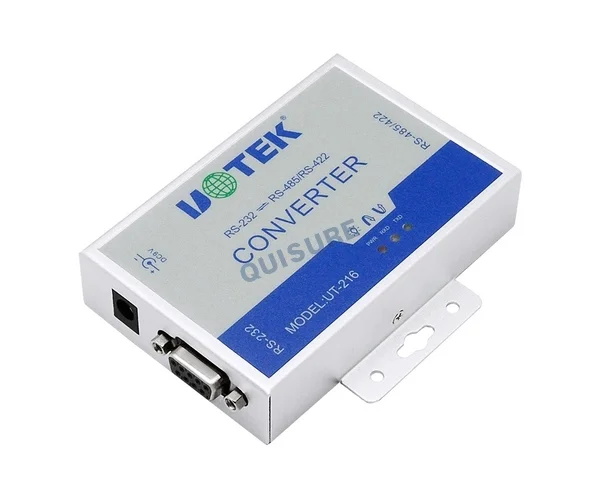

UT-216, Interface Converter, UTEK

Interface Characteristics

Compliant with EIA/TIA RS-232C, RS-485, and RS-422 standards

Electrical Interface

RS-232 input with DB9 female connector; RS-422/RS-485 output with DB9 male and RJ-45 connectors

Protection Level

600W surge protection per line on RS-422 and RS-485 interfaces

Operating Mode

Asynchronous half-duplex or asynchronous full-duplex

Signal Indicators

Three LEDs: Power (PWR), Transmit (TXD), Receive (RXD)

Transmission Medium

Twisted pair or shielded cable

Transmission Rate

115.2kbps up to 300m;

38.4kbps up to 2.4km;

9600bps up to 5km

Dimensions

97mm×65.3mm×22mm

Operating Environment

-25℃ to 70℃, 5% to 95% RH

Transmission Distance

1,200m (115200bps~9600bps)
