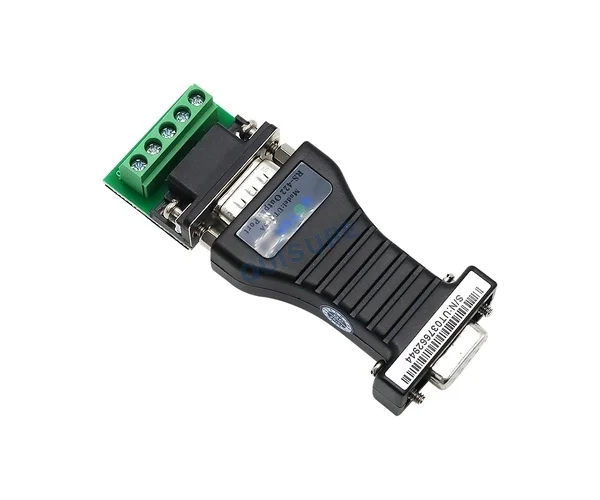

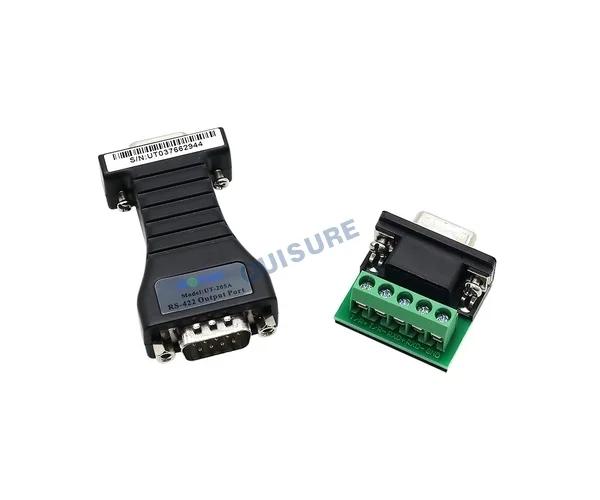

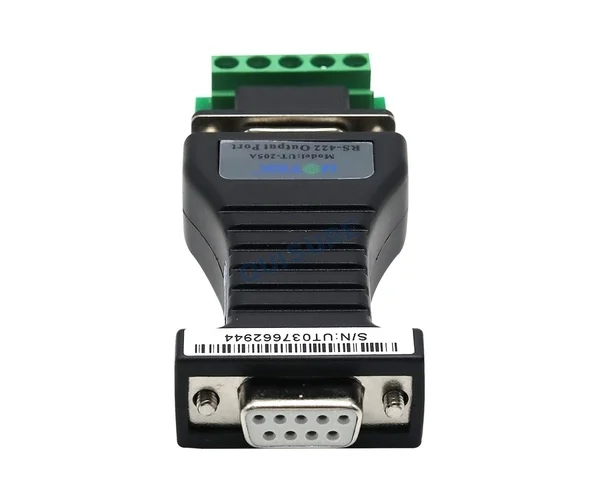

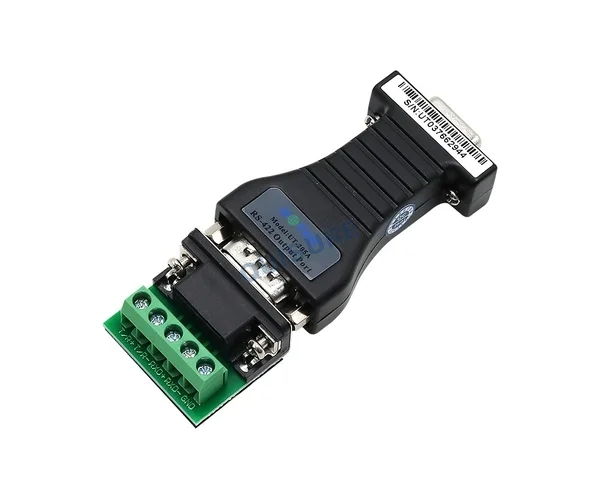

UT-205A, Interface Converter, UTEK

RS-232 to RS-485 converter

RS-232 DB9 female

RS-422 DB9 Male& terminal block

Baud rate: 300-115,200bps

Operating temp: -40℃ ~ 85℃

Specifications

Interface Characteristics	Compliant with EIA/TIA RS-232C and RS-422 standards
Electrical Interface	RS-232 port: DB9 female connector; RS-422 port: DB9 male connector with terminal block
Operating Mode	Asynchronous full-duplex differential transmission
Transmission Medium	Twisted pair or shielded cable
Transmission Rate	300bps to 115.2kbps
Dimensions	63mm×35mm×17mm
Operating Environment	-40℃ to 85℃, 5% to 95% RH
Transmission Distance	1,200m (RS-485 port) / 5m (RS-232 port)
