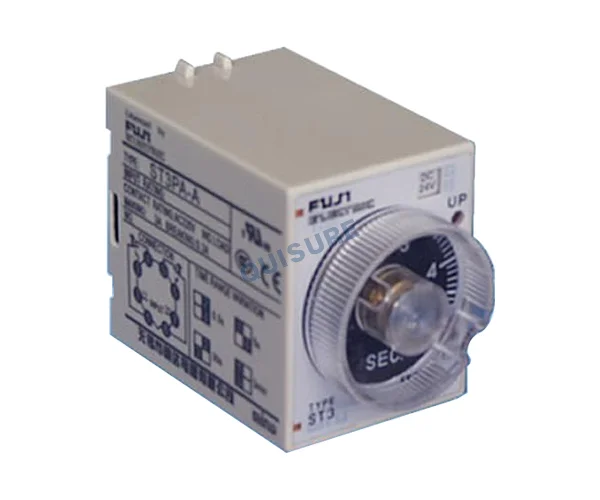

ST3P Series Timer Relay, MIND
ST3P Time Relay, Compact design with ±1% delay accuracy. Delay range 0.1s-100h. EMI resistance. For automation control systems. 100K operation cycles.
| Model | ST3PA | ST3PG | ST3PC | ST3PF ST3PF-2 | ST3PK | ST3PY | ST3PR | ||
| Repeatability | 0.5% +20 ms | 1.0% +20 ms | 0.5%+20ms | 1.0%+20ms | |||||
| Setting Error | <5% (maximum scale value) | <5% (maximum scale value) | |||||||
| 复位时间 Reset time | 500ms(Max.) | 100ms信号500ms电源 100ms signal power 500ms | 500ms (Max.) 500ms (Max.) | 500ms (Max.) | |||||
| Contact capacity | AC-12 | 200V 3A | 200V 3A 200V 3A | 200V 3A 200V 3A | 200V 3A 200V 3A | 200V 3A 200V 3A | 200V 3A 200V 3A | 200V 2A 200V 2A | |
| AC-15 | 200V 1A | 200V 0.5A | 200V 1A | 200V 0.5A 200V 0.5A | 200V 0.5A | 200V 0.5A | 200V 0.5A | ||
| DC-12 | 110V 0.5A | 24V 3A | 110V 0.5A | 24V 3A | 24V 3A | 24V 2A | 24V 2A | ||
| DC-13 | 110V 0.2A | 24V 0.5A | 110V 0.2A | 24V 0.5A | 24V 0.5A | 24V 0.5A | 24V 0.5A | ||
| Rated power | AC220V 2.9VA AC110V 1.9VA DC24V 1.3W | AC 3.3VA DC 2.4W | AC220V 1.1VA AC110V 1.3VA DC24V 1.3W | AC 3.3VA DC 1.5W | 4.4VA | AC 3.3VA DC 1.5W | |||
| Insulation strength | Electric and the earth: AC2000V 1min electrical circuit between: AC1500V 1min between contacts with the group: AC1000V 1min | ||||||||
| Insulation resistance | >100MΩ | ||||||||
| Mechanical life | 5×10 7 5 | 1×10 7 | 2×10 7 | 2×10 7 | 2×10 7 | 2×10 7 | 1×10 7 | ||
| Xinhua Life | AC-12:20×10 4 AC-15:32×10 4 DC-12:50×10 4 DC-13:15×10 4 | AC-12:12×10 4 AC-15:15×10 4 DC-12:10×10 4 DC-13:15×10 4 | |||||||
| Product weight | 100g | 140g | 180g | 150g | |||||
