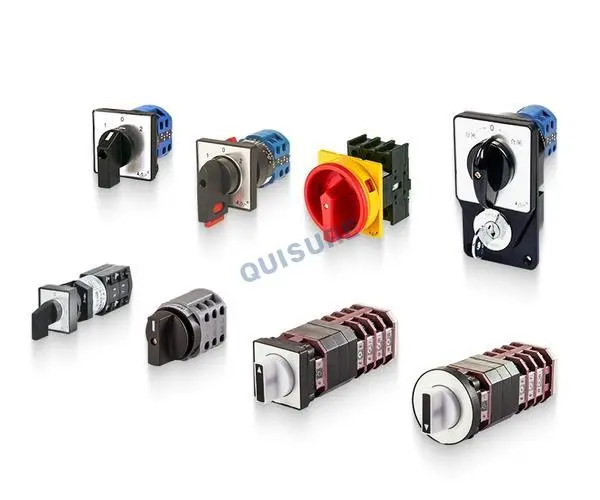

LW38-A Series Cam Switch, Changjiang
LW38-A series cam switch is widely used in electrical control cabinets and electromechanical control systems for measurement, switching, remote control, and other applications.
| Parameter | Specification |
| Rated Insulation Voltage (Ui) | 400V, 690V |
| Conventional Thermal Current (Ith) | 10A, 16A, 20A |
| Power-frequency Withstand Voltage (1 min) | 2500V |
| AC Operating Current (Ie) - AC-15 (Control of AC Electromagnets) | 24V: 10A, 16A, 20A 48V: 5A, 9A, 13A 110V: 3A, 6A, 9A 220V: 2.5A, 4.6A, 6A 380V: 1.2A, 2.6A, 4A |
| DC Operating Current (Ie) - DC-13 (Control of DC Electromagnets) | 24V: 8A, 12A, 15A 48V: 1.2A, 2A, 6A 110V: 0.25A, 0.55A, 1.2A 220V: 0.12A, 0.27A, 0.6A |
| AC Electrical Life | 200,000 operations |
| DC Electrical Life | 100,000 operations |
| Mechanical Life | 300,000 operations |
