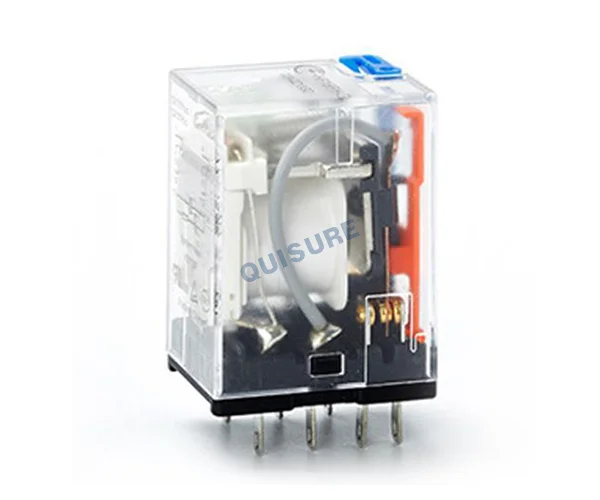

HF18FF Series Relay, HONGFA
HF18FF Miniature Intermediate Power Relay: Features multiple auxiliary functions, 2 to 4 pole configurations, and a variety of terminals including gold-plated contacts. Transparent dust cover and multiple installation types available, with automatic production ensuring high capacity and consistent quality.
| Contact arrangement | 2C,3C,4C |
| Contact resistance1) | 100mΩ max.(at 1A 6VDC) |
| Contact material | see "ORDERING INFORMATION" |
| Contact rating Res.load) | 7A 250VAC/30VDC(2Z/3Z) 6A 250VAC/30VDC(4Z) |
| Max.switching voltage | 250VAC/30VDC |
| Max.switching current | 7A(2Z/3Z),6A(4Z) |
| Max.switching power | 1750VA/210W(2Z/3Z) 1500VA/180W(4Z) |
| echanical endurance | 2x107OPS |
| lectrical endurance | 1x105OPs(room temperature) |
| oil power | DC type:Approx. 0.8W to 1.1W; |
| AC type:Approx. 0.9VA to 1.5VA | |
| Insulation resistance | 1000MQ (at 500VDC) |
| Dielectric strength | Between coll & contacts: 1500VAC 1mi |
| Between open contacts: 1000VAC 1min | |
| Between contact sets: 1500VAC 1min | |
| Operate time (at nomi.volt) | 20ms max |
| Release time (at nomi.volt.) | DC type: 15ms max |
| AC type: 25ms max. | |
| DC type (with diode)25ms max. | |
| Temperature rise (no-load,at nomi.volt.) | 85K max. |
| Shock resistance | Functional: 100m/s2 |
| Destructive: 1000m/s2 | |
| Vibration resistance | 10Hz to 55Hz 1mm DA |
| Humidity | 5% 1o 85% RH |
| Ambient temperature | -40°C to 70°C |
| Termination | PCB,Plug-in |
| Unil weight | Approx. 35.6g |
| Construction | Dust protected |
