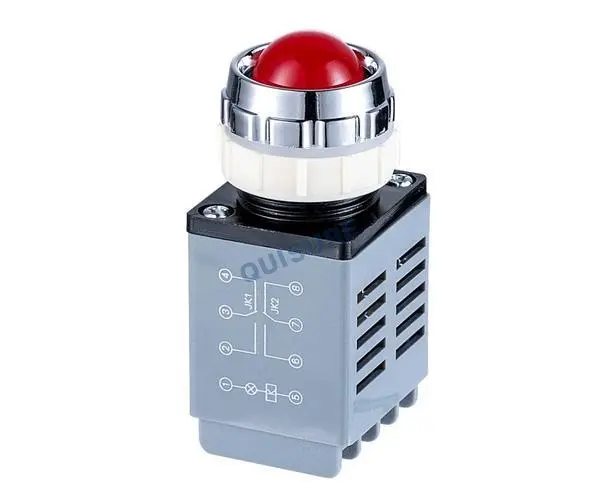

AD11-25 Series Indicator, Changjiang
AD11-25 LED Indicator, 30mm LED indicator with 120° viewing angle. 10-265VAC input. Certified CCC/CE/CCS. 100K switching cycles.
| Parameter | Specification |
| Product Standard | GB/T 14048.5 |
| Power-frequency Withstand Voltage | AC 1890V, 50Hz, 1min |
| Operating Frequency | AC 50-60Hz |
| Insulation Resistance | Ui ≤ 60V: 5MΩ 60V < Ui ≤ 690V: 50MΩ |
| Allowable Voltage Fluctuation (AC Indicator Light) | ±20% |
| Comparative Tracking Index (CTI) | ≥100 |
| Operating Temperature | -25℃ ~ 55℃ |
| Relative Humidity | ≤90%RH |
| Altitude for Installation | <4000m |
| Continuous Operating Life | ≥30,000 hours |
| Pollution Degree | Level 3 |
| Available Colors | Red (R), Green (G), Yellow (Y), White (W), Blue (B) |
| Available Voltage Ratings | AC/DC: 6V, 12V, 24V, 36V, 48V, 110V, 220V AC: 220V, 380V |
