NDB5 Series HMCB, Nader

Rated current In (A): 0.5A, 0.6A, 0.7A, 0.8A, 0.9A, 1A, 1.5A, 2A, 2.5A, 3A, 3.5A, 4A, 4.5A, 5A, 5.5A, 6A, 6.5A, 7A, 7.5A, 8A, 8.5A, 9A 9.5A, 10A, 12A, 15A, 16A, 20A, 24A, 25A, 30A, 32A, 35A, 40A, 45A, 50A, 55A, 60A, 63A, 70A, 80A, 90A, 100A, 105A, 110A, 120A, 125A, 150A

Rated voltage Ue (V): DC80V, AC230/240/250/277/400/415/480V

Documents:

Nader-NDB5-HMCB-Products-Specification-8996.pdf

Telecom & Data Center

OEM

Product Description

Technical parameters:

Number of Poles

2PU

3PU

Rated voltage (V)

AC230/240/250 V

DC80/125V

AC230/ 240/250 V

AC400/415V AC480/277V

DC80/ 125V

AC400/415V AC480/277V

DC80V

Rated current (A)

0.5, 0.6, 0.7, 0.8, 0.9, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10, 12, 15, 16, 20, 24, 25, 30, 32, 35, 40, 45, 50, 55, 60, 63

0.5, 0.6, 0.7, 0.8, 0.9, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10, 12, 15, 16, 20, 24, 25, 30, 32, 35, 40, 45, 50

20, 30, 40, 50, 60, 63, 70, 80, 90,100

105, 110, 120, 125, 135, 150

Installation

35mm DIN Rail & Miniature Rail

Tripping Curve

J2,J4,J6

Z2,Z4,Z6

J2,J4,J6

J2.J4.J6

Z2,Z4,Z6

J2.J4.J6

Z2,Z4,Z6

Frequency

50/60Hz

Standards and Certificates

·CCC, TUV, CE

·IEC/EN 60934, IEC/EN 60947-2, GB/T 17701, GB/T 14048.2, UL1077, UL489A

Rated voltage (V)

DC80V

DC125V

AC230/400V

AC480/277V

AC250V

DC80V

Rated current (A)

0.5～63A

20～150A （Multi pole in parallel）

Interrupting Capacity (kA)

CCC

GB/T 17701

10kA

UL 1077

10,U1

6,U1

10,U1

UL 489A

TUV/CE

EN6093-4

EN60947-2

Mechanical endurance

10000times

Electrical Life

6000times

Working frequency withstand voltage

1500V

Cable Capacity

0.5～25mm², up to 35 mm²(2P in parallel:), up to 70 mm²(3P in parallel)

Working conditions

·Operation temperature: -40℃~+85℃

·Altitude: ≤2000m

·Humidity: ≤95%

·Relative humidity：The relative humidity of the air does not exceed 50% at the maximum temperature of +40℃. Higher relative humidities may be permitted at lower temperature, e.g. 90% at +20℃.

·Pollution degree: 2

·Installation type: Ⅱ

·Service place without explosive media, gas and dust which are corrosive and conductive.

·Be mounted free from rain and snow.

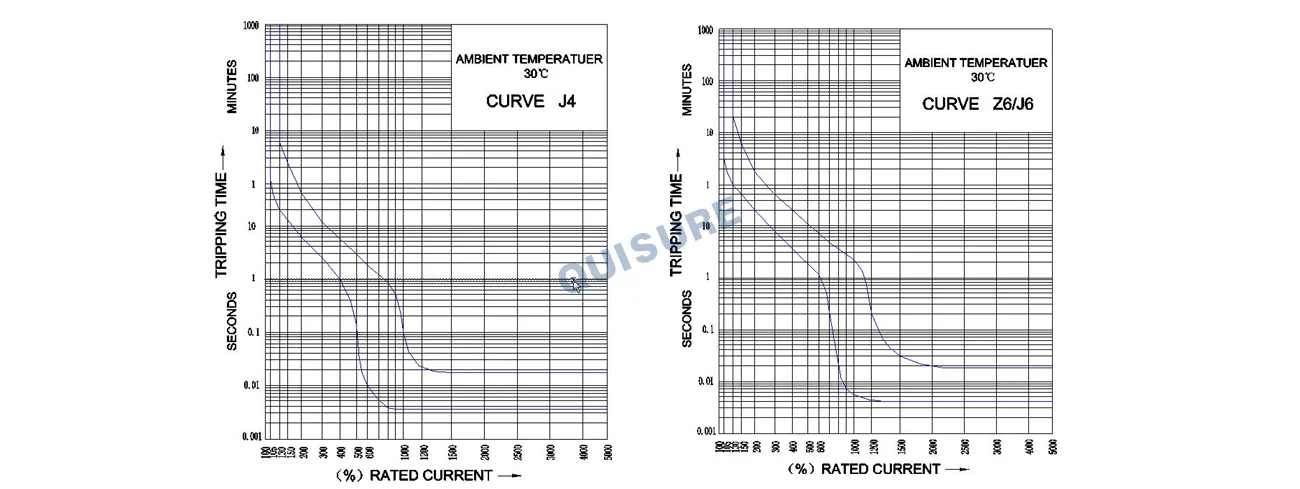

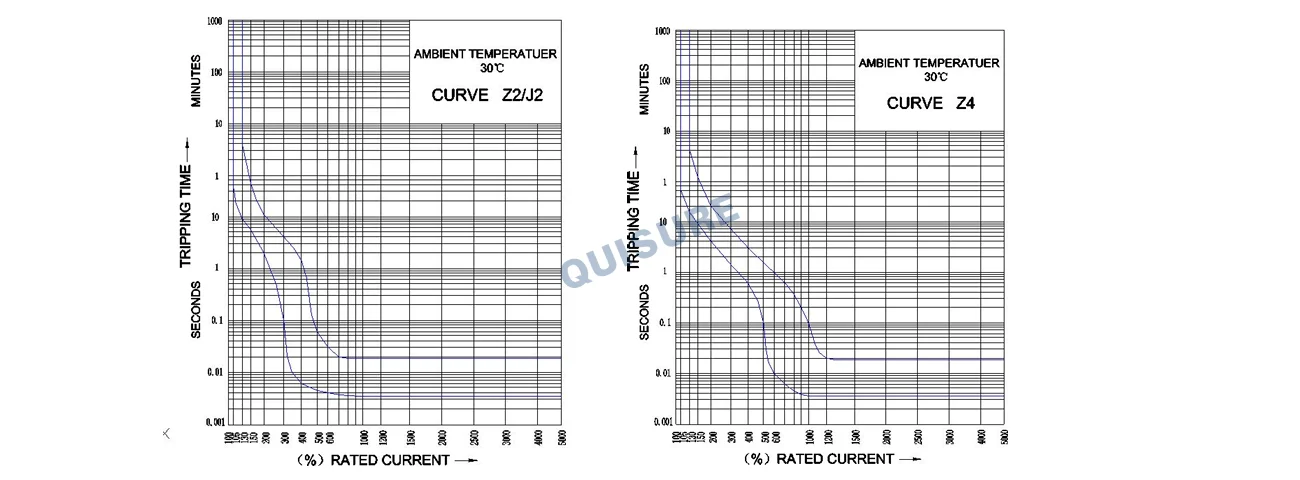

Tripping characteristic curve

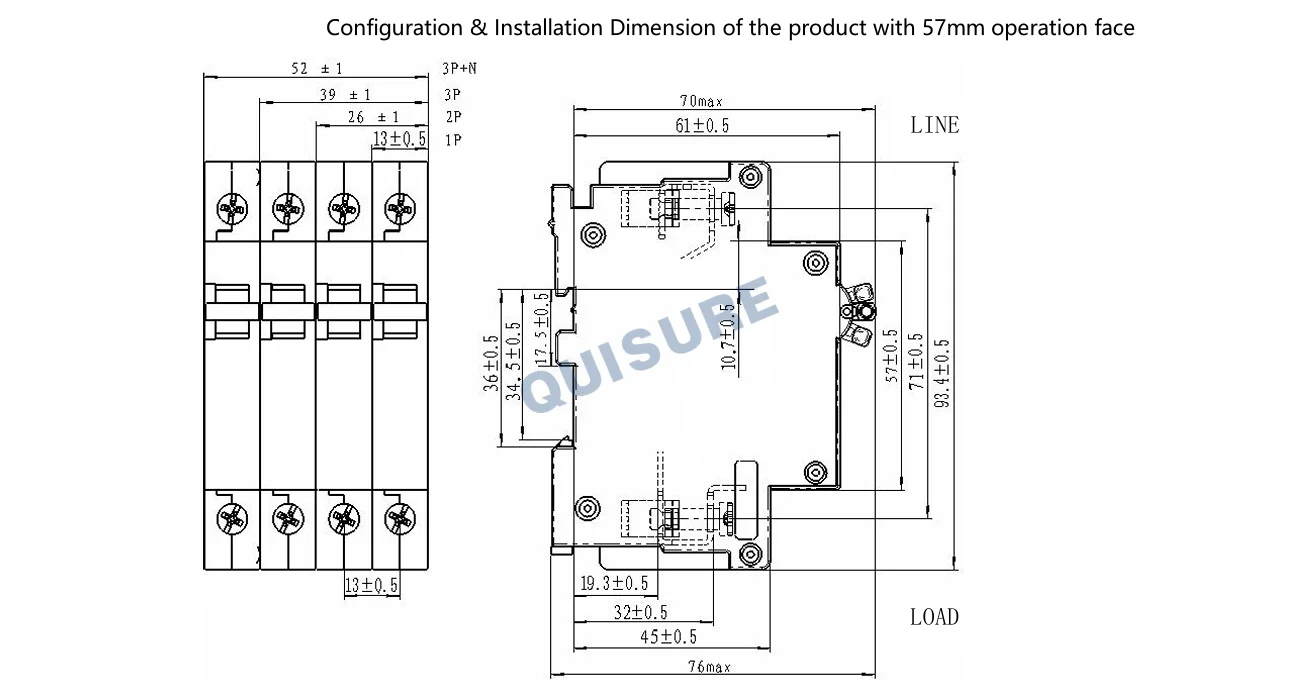

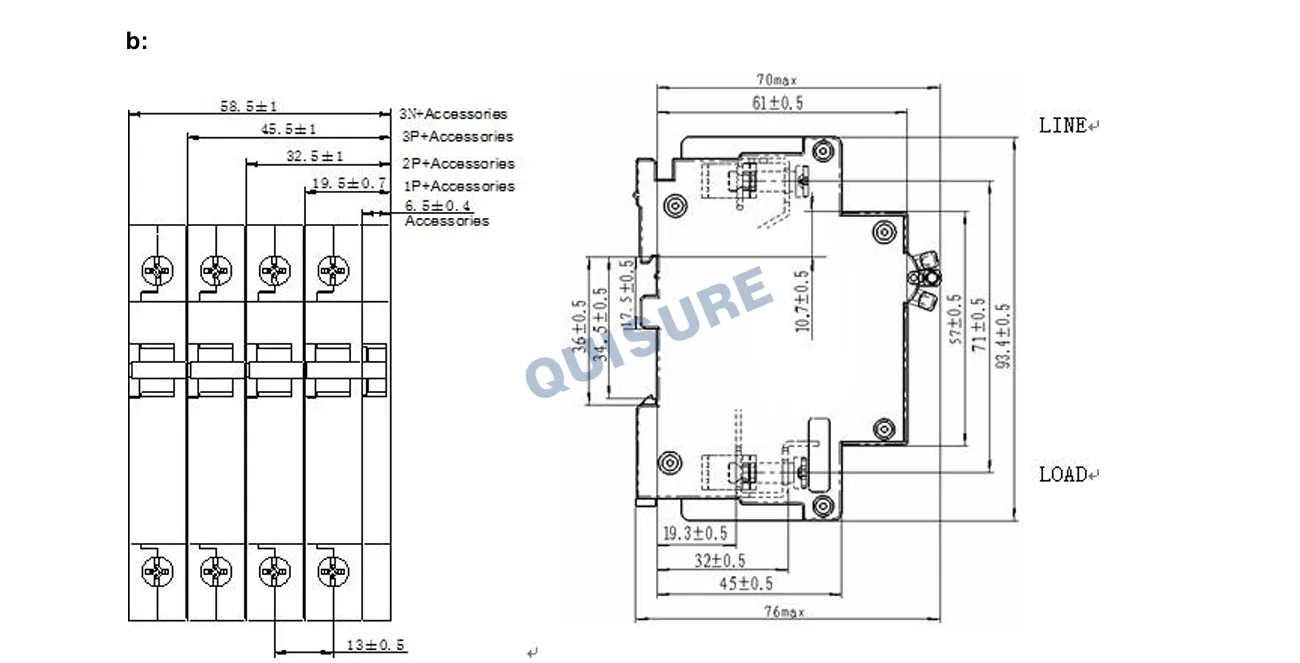

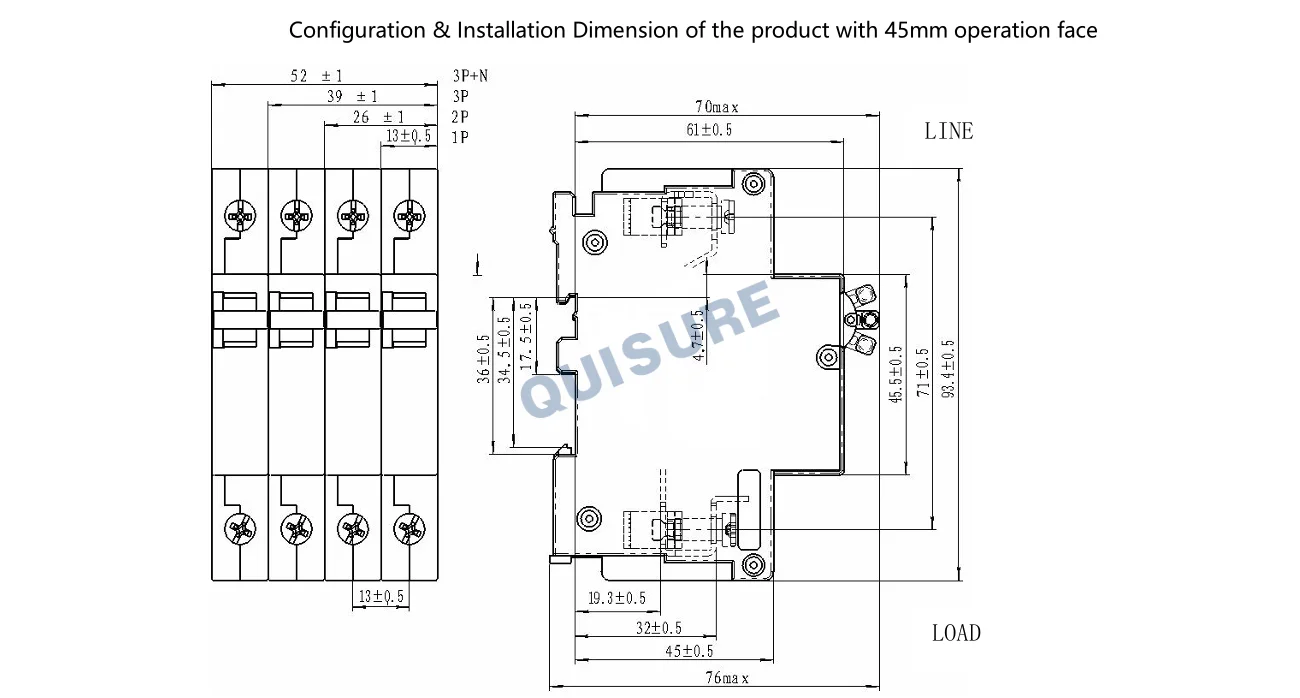

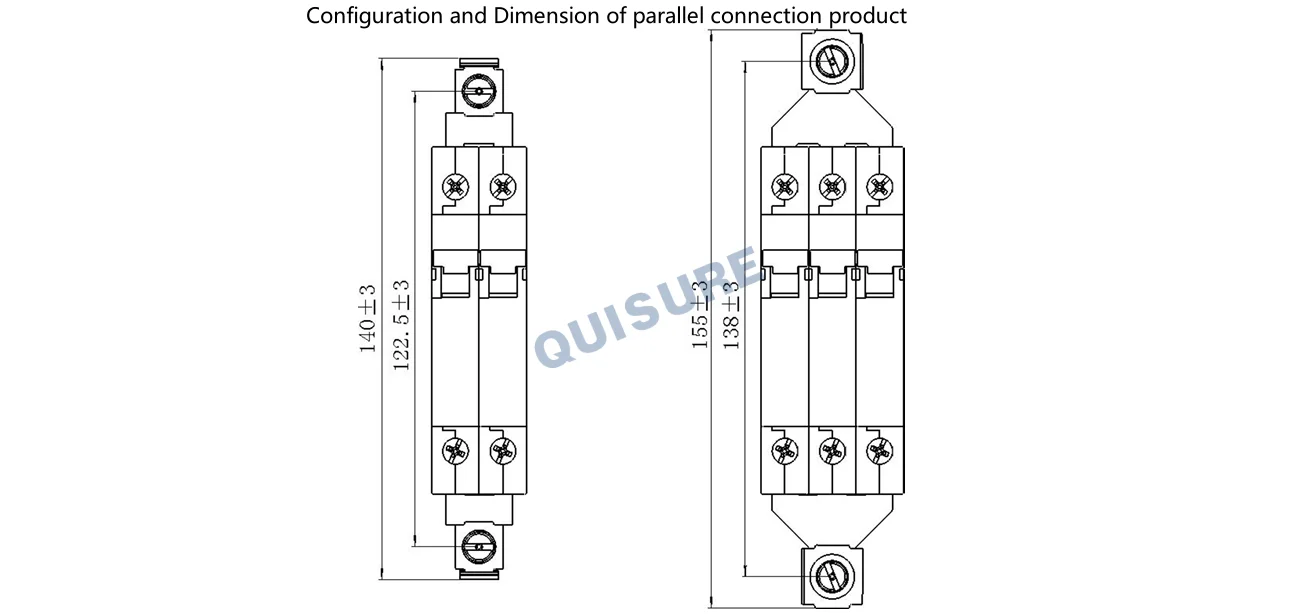

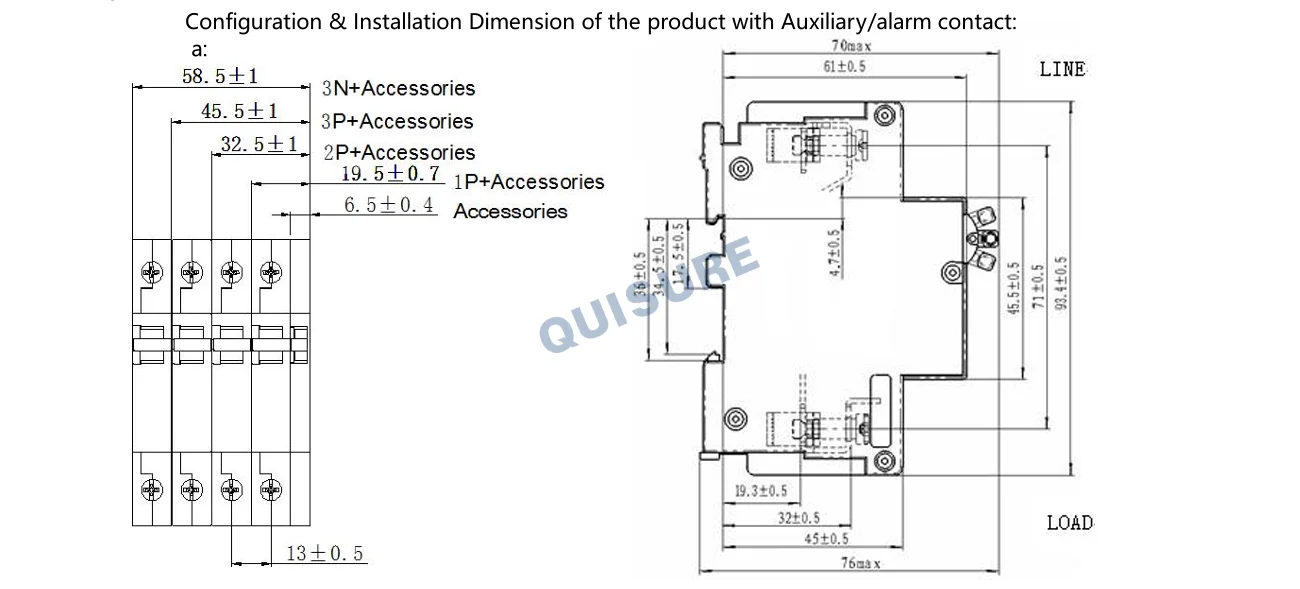

Outline and installation dimension

Packing and depositing:

·Max packing capacity:

1P product：12 pcs/box

2P、1N product：6 pcs/box

2PU product：3 pcs/box

3P product：4 pcs/box

3PU product：2 pcs/box

3N product：3 pcs/box

1P product with accessary：8 pcs/box

2P、1N product：4 pcs/box

2PU product：2 pcs/box

3P product：3 pcs/box

3PU product：2 pcs/box

3N product：2 pcs/box

·The product should be transited and deposited free from rain and snow. The productsshould be stored in the warehouse where there are ventilation. The relative humidity there

should not exceed 90%（20±5℃）, and the ambient temperature there is between -40℃ to

+85℃. In addition, there should not be acidic, alkaline and corrosive gas in the air. The

products should not be deposited more than 3 years in the above mentioned conditions

since the producing date.
