NDB3-125 Series HMCB, Nader

Rated current In (A): 10A, 15A, 16A, 20A, 25A, 30A, 32A, 40A, 50A, 60A, 63A, 70A, 80A, 90A, 100A, 110A, 125A

Rated voltage Ue (V): AC230V/240/400/415V, DC80V/DC125V

Poles: 1P, 1P+N, 2P, 3P, 3P+N, 4P

Breaking capacity Icn: 6kA

Tripping characteristics: Short, Medium, Long: B, C, D

Certifications: CCC, TUV, CE

Telecom & Data Center

OEM

Product Description

Technical parameters:

Rated voltage (V)	AC230V/240V(1P, 1P+N, 2P), AC400V/415V(3P, 3P+N, 4P), DC80V/125V(1P Configuration, 2P Configuration)
Rated current (A)	10A, 15A, 16A, 20A, 25A, 30A, 32A, 40A, 50A, 60A, 63A, 70A, 80A, 90A, 100A, 110A, 125A
Number of Poles	1P, 2P, 3P, 4P, 1N, 3N
Rated Breaking capacity (kA)	6kA
impulse withstand voltage Uimp (kV)	4kV
Certificates	CCC, TUV, CE
Tripping Characteristics Curves	·Type B curve: Rated current: 10A ~ 125A； Tripping characteristic: 3In ~ 5In ·Type C curve: Rated current: 10A ~ 125A； Tripping characteristic: 5In ~ 10In ·Type D curve: Rated current: 10A ~ 125A； Tripping characteristic: 10In ~ 14In
Mechanical endurance	10000times
Electrical Life	6000times
Video Monitoring Function	Green indicator in video monitoring window indicates contacts in open position
Working conditions	·Operation temperature: -40℃~+85℃ ·Altitude: ≤2000m ·Humidity: ≤95% ·Service place without explosive media, gas and dust which are corrosive and conductive. ·Be mounted free from rain and snow.

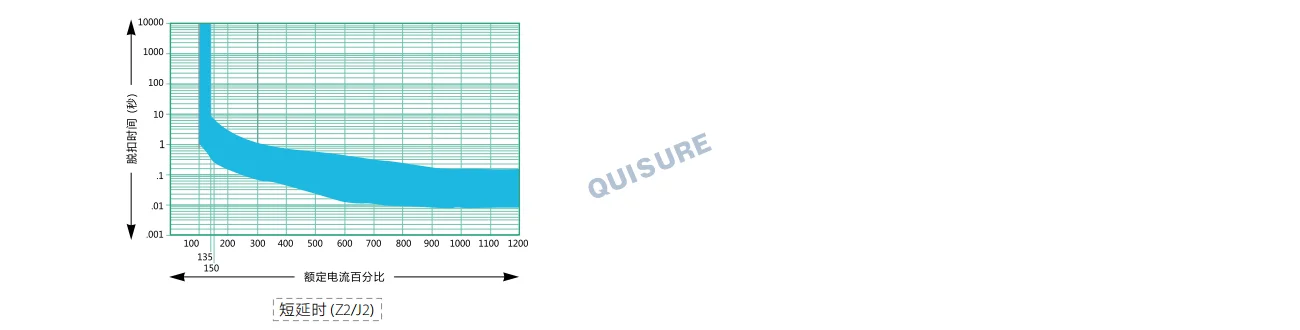

Tripping characteristic curve

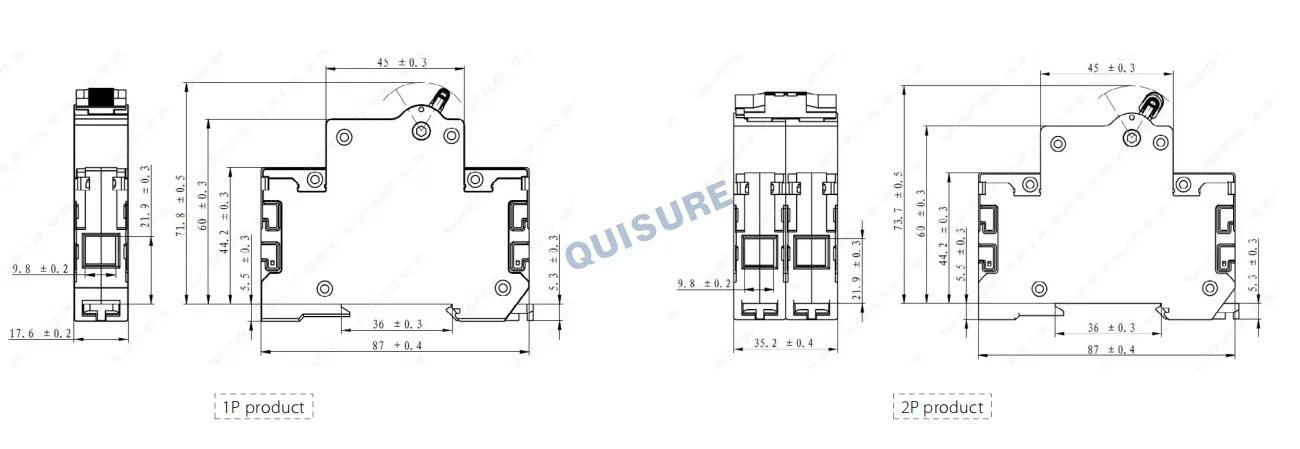

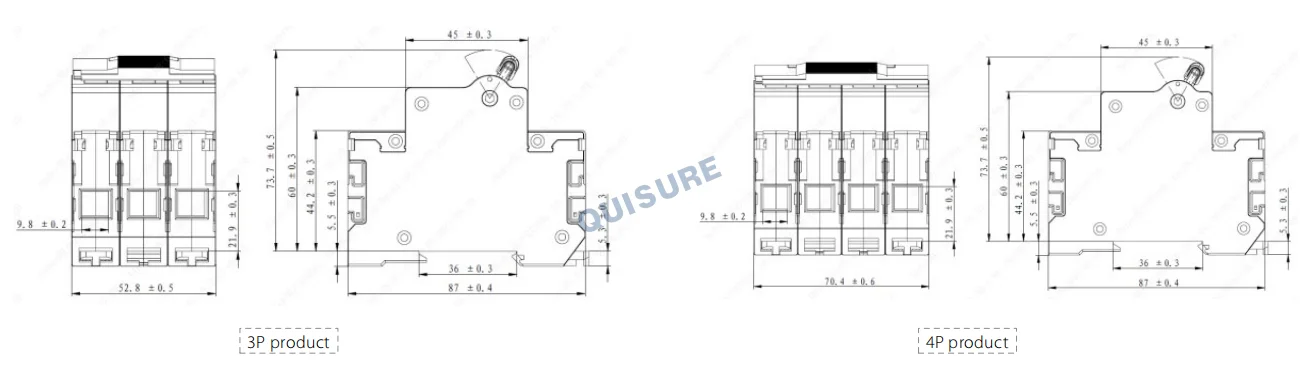

Outline and installation dimension

Packing and depositing:

·Minimum packaging quantity:

1-pole: 30 pieces in a box, 3 boxes in an overwrap carton.

2-pole: 15 pieces in a box, 3 boxes in an overwrap carton.

3-pole: 10 pieces in a box, 3 boxes in an overwrap carton.

·The products should be stored in the warehouse where there is ventilation. The relative humidity there should not exceed 80%, and the ambient temperature there isbetween-25℃ to +60℃. In addition, there should not be acidic, alkaline and corrosive gas in the air. The products should not be deposited more than 3 years in the above mentioned conditions since the producing date.
