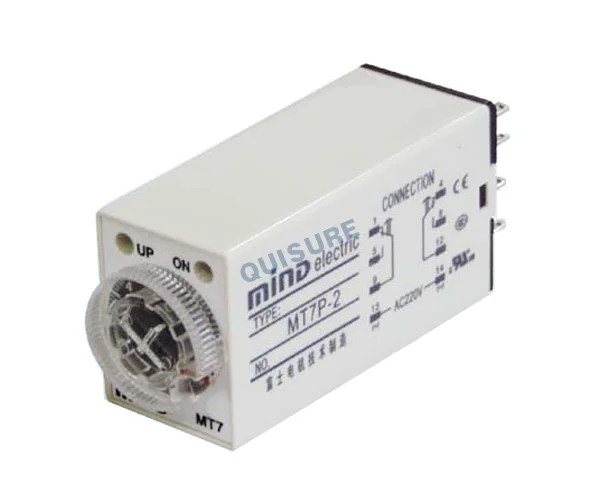

MT7P Series Timer Relay, MIND
MT7P Replacement Relay Timer, compact high-reliability design with integrated IC circuit. Ensures ±1% error and precision timing. Adjust delay from 0.5s to 12h via cross-head screwdriver. Supports multi-touch output with 2/4 conversion modes. Certified to CCC/UL/CE standards. Fully compatible with ST6P series.
| Model | MT7P-2 | MT7P-4 |
| Repeat error | 1%±20ms | 1%±20ms |
| Setting Error | 10% | 10% |
| Reset time | 500ms(Max) | 500ms(Max) |
| Insulation strength | Electric and the earth: AC2000V 1min Electrical circuit between: AC1500V 1min Contact between the same group: AC1000V 1min | |
| Insulation resistance | ≥ 100M Ω (DC500V) | ≥ 100M Ω (DC500V) |
| Rated power | AC220V 2.1VA AC110V 1.9VA DC24V 1.1W | AC220V 2.1VA AC110V 1.9VA DC24V 1.1W |
| Mechanical life | 5×107 | 5×107 |
| Xinhua Life | AC-12:20×104 AC-15: 32 × 104 DC-12:50×104 DC-13:15×104 | AC-12:12×104 AC-12: 12 × 104 AC-15:26×104 AC-15: 26 × 104 DC-12:26×104 DC-12: 26 × 104 DC-13:5×104 DC-13: 5 × 104 |
| Product weight | 45g | 45g |
