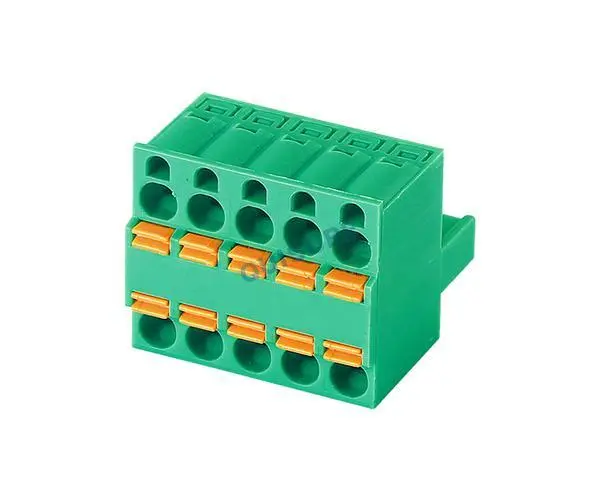

KF2EDGKDH-5.08 Terminal Block, Kefa
KF2EDGKDH-5.08 Terminal Block, 300-630V, 10-15A rated. UL94V-0 nickel-plated contacts. 5.08mm pitch (2-24P). Withstands -40℃~+105℃. 1600V dielectric strength.
| UL/CUL(Technical Data) | |
| Use Group | B/C/D |
| Rated Voltage [V] | 300V |
| Rated Current [A] | 10A |
| Wire Range Solid/Standed [AWG] | 24-12 |
| Withstanding Voltage | 1600V/1Min |
| IEC(Technical Data) | |
| Overvoltage Category | ||| || |
| Contamination Class | 2 |
| Rated Voltage [V] | 320V/630V |
| Rated Current[A] | 15A |
| Impulse wiithstand voltagea [KV] | 4.0kV |
| Conductor cross section (Solid/flexible) [mm²] | 2.5 mm² |
| Insulation Material | PA66 |
| Imflammability | UL94V-0 |
| Contactor Material | Copper alloy |
| Contactive Coating | Ni Plating |
| Other Data) | Other Data) |
| Pitch [mm] | 5.08 mm |
| Poles [P] | 2-24 P |
| Stripping Length[mm] | 10-11 mm |
| Operating temperatur [℃] | -40~+105℃ |
