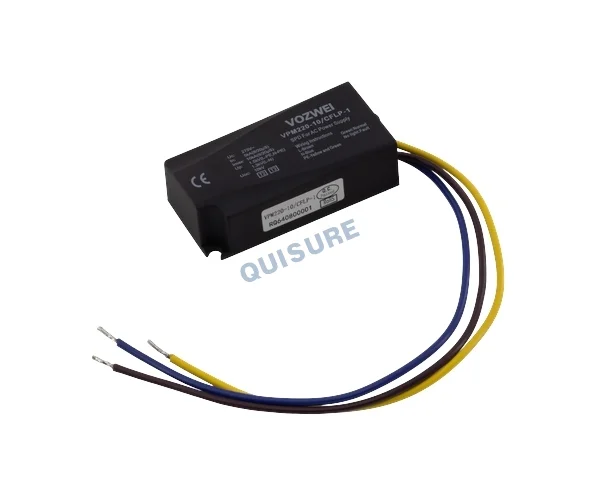

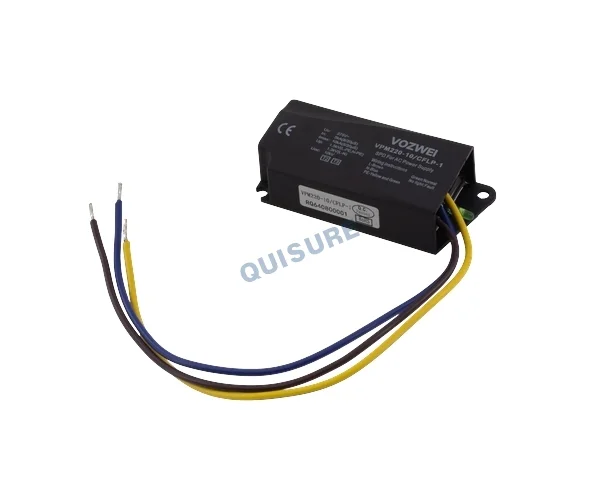

VPM220-10 (CFLP) Series Type 3 LED SPD, VOZWEI
SPD according to EN/IEC 61643-11: Type 3
Max. continuous operating voltage Uc: AC 275 V 50/60 Hz, AC 320 V 50/60 Hz
Nominal discharge current In (8/20 μs) : 5 kA
Max. discharge current Imax (8/20 μs): 10 kA
Voltage protection level Up: ≤ 1.5 kV, ≤ 1.6 kV
Application:
The product serves as a Category III transient overvoltage suppressor, designed for final-stage protection of single-phase 100-240 V AC power supplies. Installed within the equipment being protected, it implements lightning protection from LPZ2 to LPZ3 zones according to the lightning protection zone concept. Providing both differential-mode and common-mode protection, it effectively safeguards LED lighting systems against damage caused by direct lightning strikes or induced transient overvoltages.
Featured:
- Nominal discharge current In (8/20 s): 5 kA
- Max. discharge current Imax (8/20 s): 10 kA
- Max. continuous operating voltage Uc: AC 275 V / AC 320 V / AC385V
- Full protection modes: Differential-mode and common-mode
- Optional features: LED status indicator, built-in overcurrent fuse protection
- Integrated structure with IP65 rating; single-port and two-port options available; supports series/parallel installation for easy mounting
- Utilizes high-performance surge protection components, featuring high TOV withstand capability and low limiting voltage
Nomenclature:
VP □ 220–□/ C FL T P -□
1 2 3 4 5 6 7 8 9
| SN | Name | Specification, type code |
| 1 | Design code | VP |
| 2 | Product Series | M |
| 3 | Rated supply voltage | 220 V |
| 4 | Max. Discharge Current Imax | 10: 10 kA |
| 5 | Protection mode | C: Full Protection |
| 6 | Features & Characteristics | FL: Fuse, LED Alarm Indication; L: Fuse & LED Alarm Indication |
| 7 | Interface & Connection | T: Two-Port |
| 8 | Design & Construction | P: Plastic Housing |
| 9 | Max. continuous operating voltage Uc | 1: AC 270 V; 2: AC 320 V |
Example: VPM220-10/CFLP-1 → Rated supply voltage: 220 V; Imax: 10 kA; Protection mode: Full Protection; Features & Characteristics: Fuse;Design & Construction: Plastic Housing; Uc: AC 270.
Technical parameters:
| Model | VPM220-10/CFLP-1 |
| SPD according to EN/IEC 61643-11 | Type 3 |
| Protection mode | L-PE & N-PE & L-N |
| Nominal operating voltage Un | AC 220-240 V 50/60 Hz |
| Max. continuous operating voltage Uc | AC 275 V 50/60 Hz |
| Nominal discharge current In (8/20 μs) | 5 kA |
| Max. discharge current Imax (8/20 μs) | 10 kA |
| Voltage protection level Up | L-PE/N-PE ≤ 1.5 kV, L-N ≤ 1.3 kV |
| Leakage current | ≤ 20 μA |
| Response time | L-N ≤ 25 ns, L-PE/N-PE ≤ 100 ns |
| Normal/Fault Indication | Green/Red |
| Installation method | Parallel installation |
| Housing material | UL94-V0 |
| Protection class | IP20 |
| Relative humidity | ≤ 95% (25 ℃) |
| Operating temperature | -40 ℃ ~ +80 ℃ |
| Operating altitude | ≤ 4000 m |
| Outline dimensions (without terminal) | 79 mm × 35 mm × 20 mm (tolerance ± 1 mm) |
| Internal protection device | The lightning protection unit has a built-in thermal trip device |
| Extraction wire | L – Brown, N – Blue, PE - Yellow-Green, Wire Length 120 mm |
| Power Distribution System | TN |
Selection guide:
| Model | Un | Uc | Up | In | Imax | Protection mode | Operating Principle | Size |

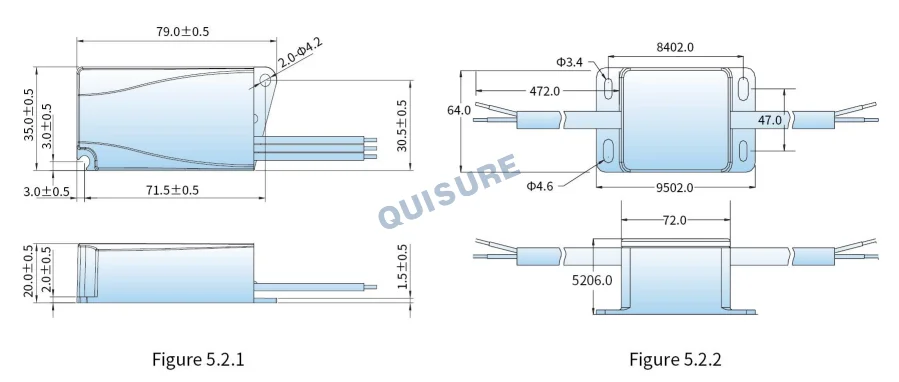

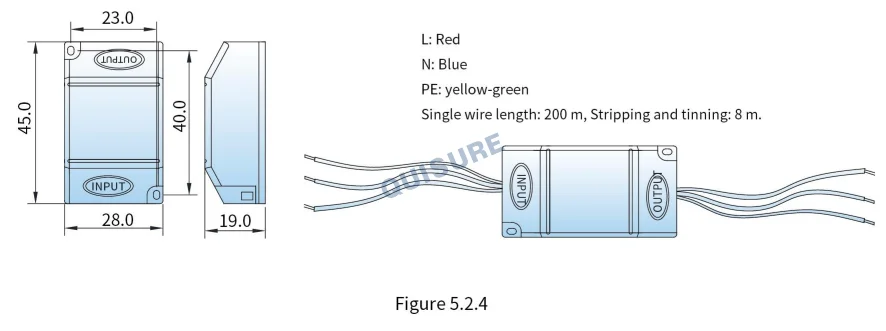

| VPM220-10/CFLP-1 | AC 230 V | AC 275 V | 1.5 kV | 5 kA | 10 kA | L-PE & N-PE & L-N | Figure 5.1.1 | Figure 5.2.1 |
| VPM220-10/CFLP-2 | AC 230 V | AC 320 V | 1.6 kV | 5 kA | 10 kA | L-PE & N-PE & L-N | Figure 5.1.1 | Figure 5.2.1 |
