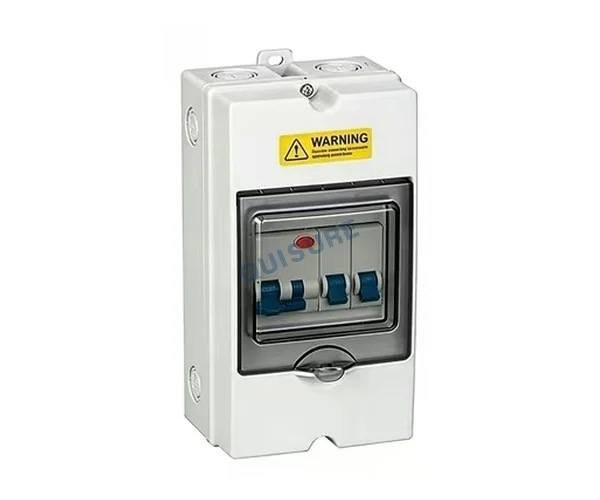

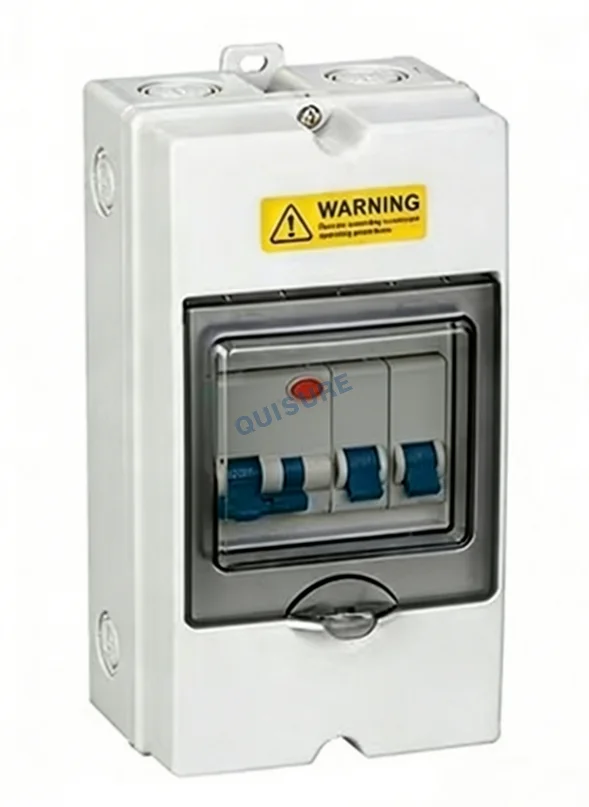

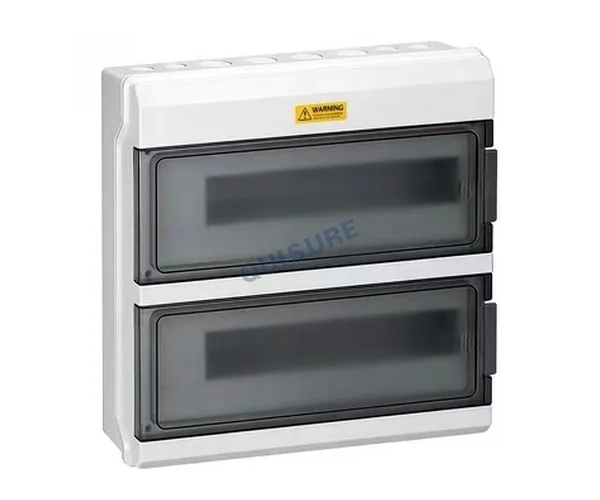

VDB-SA Series Waterproof Distribution Box, VOZWEI
Material: PC
Structure: Waterproof enclosed structure
IP rating: IP65
Ways: 4~36 ways
Standards: IEC60529, EN60309
Features
- Snap-on design for easy opening and simple operation.
- Built-in DIN rail for convenient circuit breaker installation.
- Sealing rubber gasket for waterproof, corrosion-resistant and long service life.
- Dual copper busbar structure with high-quality brass for excellent conductivity.
- Made of PC with high strength and good durability.
- Waterproof enclosed structure, effectively resisting rain, water, sand and dust.
- IP65 protection level, suitable for outdoor and harsh environments.
- Complies with IEC60529 and EN60309 international standards.
- 4~36 ways available to meet different power distribution needs.
Technical parameters
| VDB-SA Series Model | Ways | Dimension (mm) |
| VDB-SA-1504 | 4-way | 107 × 212 × 92 |
| VDB-SA-1506 | 6-way | 165 × 200 × 100 |
| VDB-SA-1509 | 9-way | 219 × 200 × 100 |
| VDB-SA-1512 | 12-way | 273 × 230 × 110 |
| VDB-SA-1518 | 18-way | 381 × 230 × 110 |
| VDB-SA-1524 | 24-way | 273 × 380 × 110 |
| VDB-SA-1536 | 36-way | 381 × 380 × 110 |

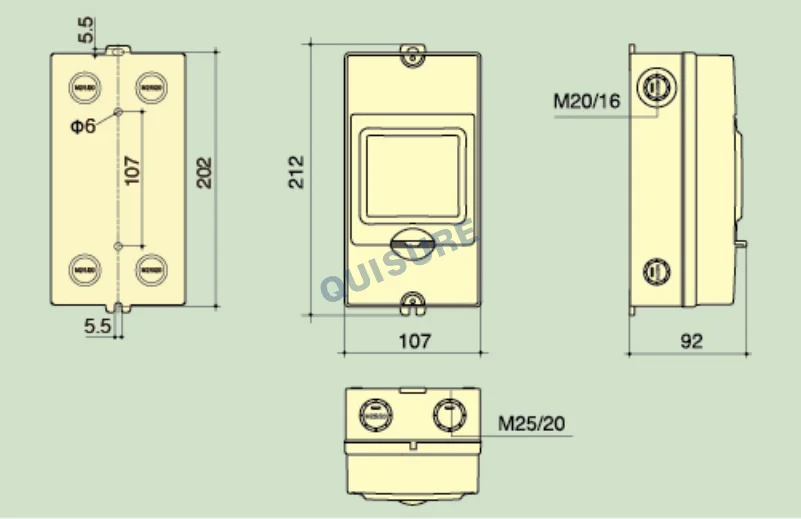

VDB-SA-1504：

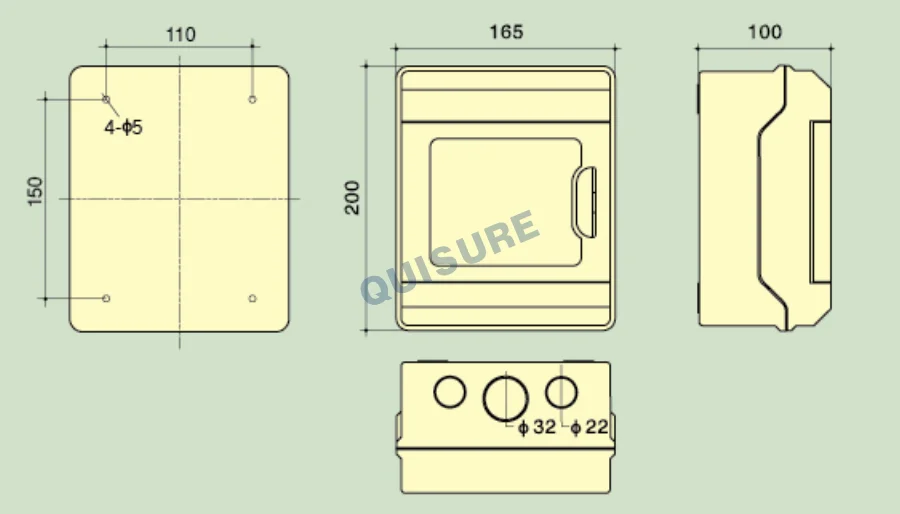

VDB-SA-1506

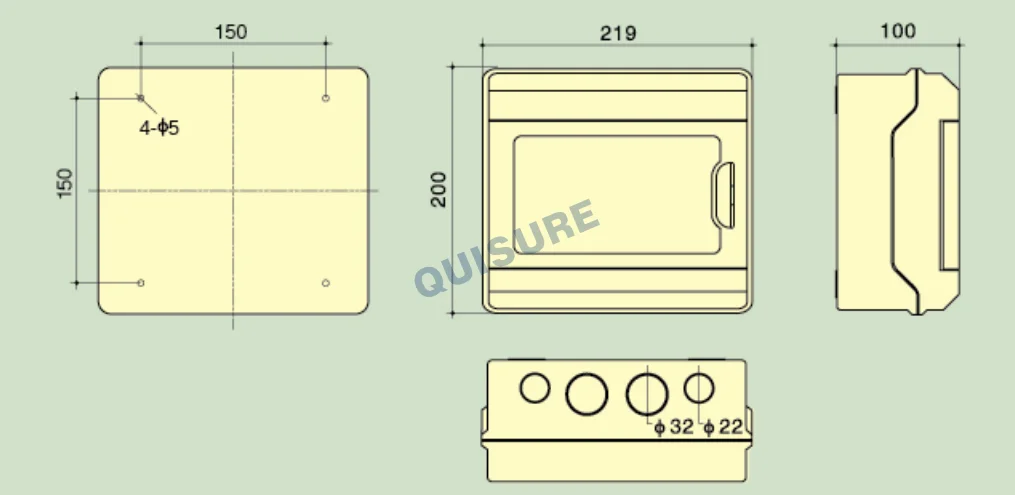

VDB-SA-1509

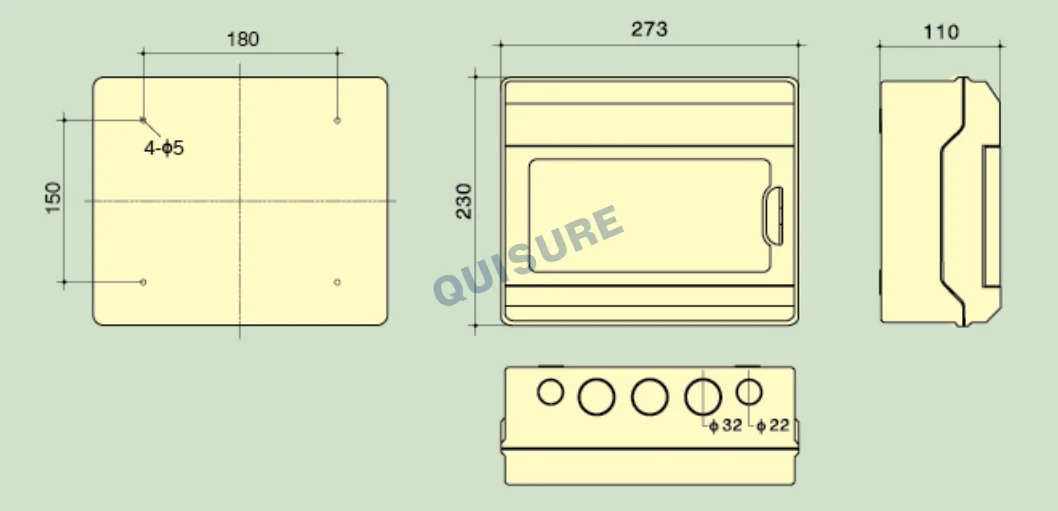

VDB-SA-1512

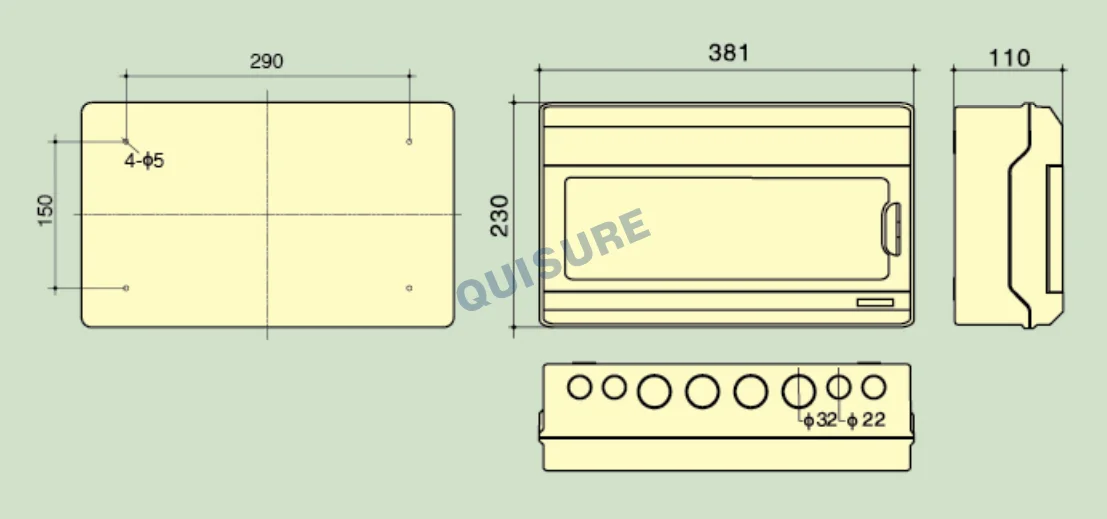

VDB-SA-1518

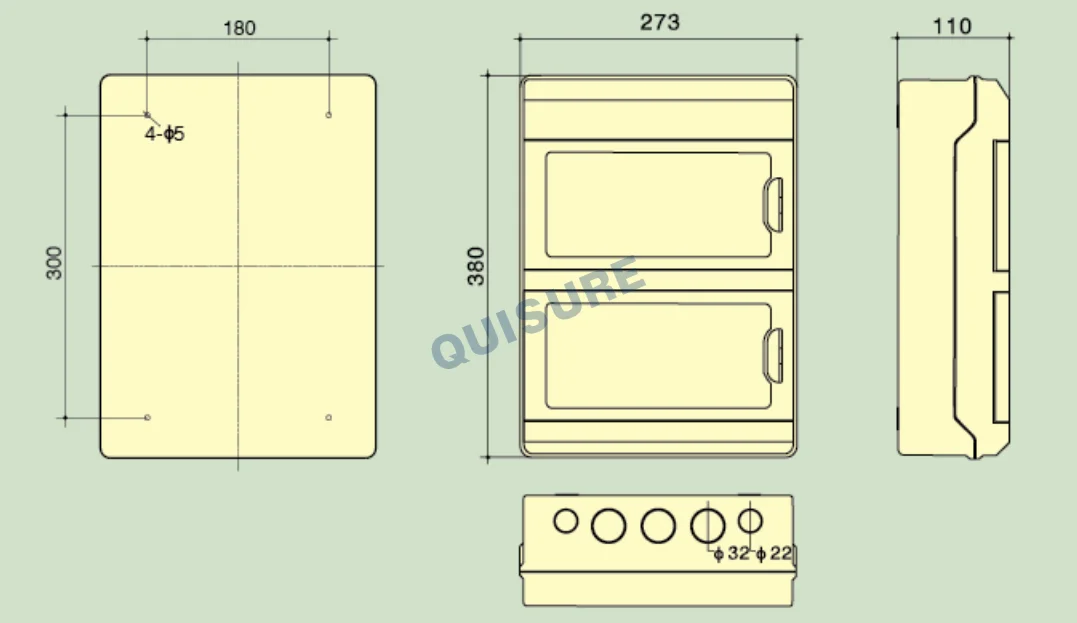

VDB-SA-1524

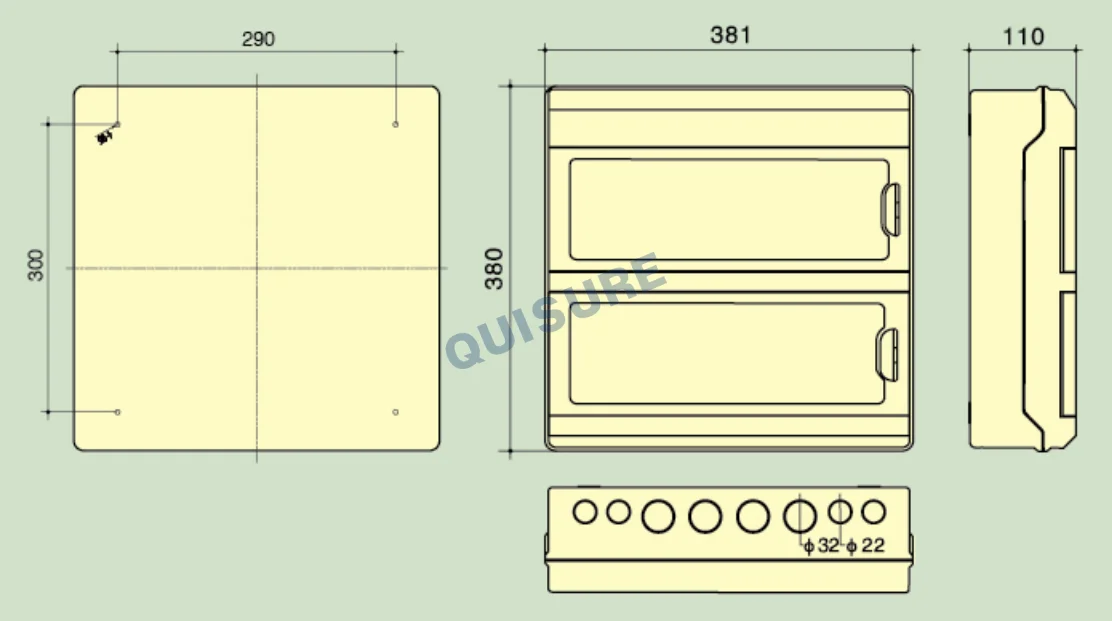

VDB-SA-1536
