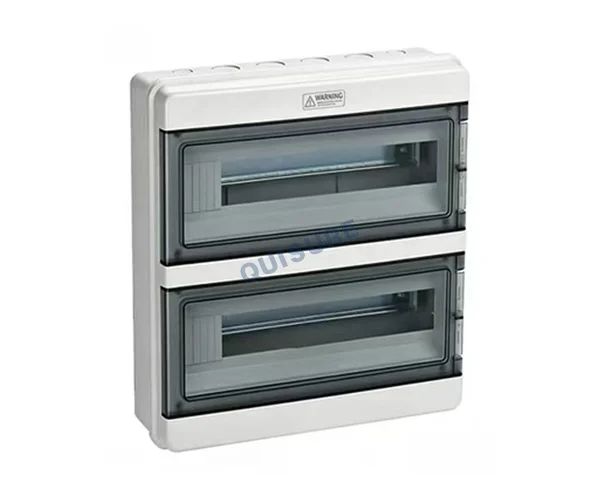

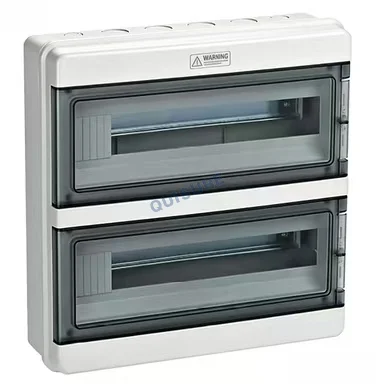

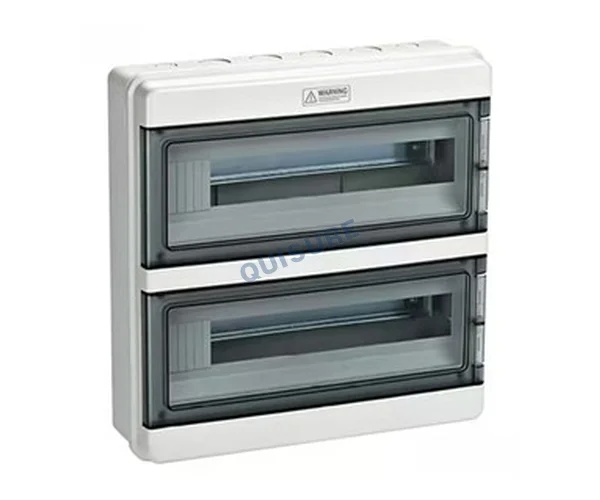

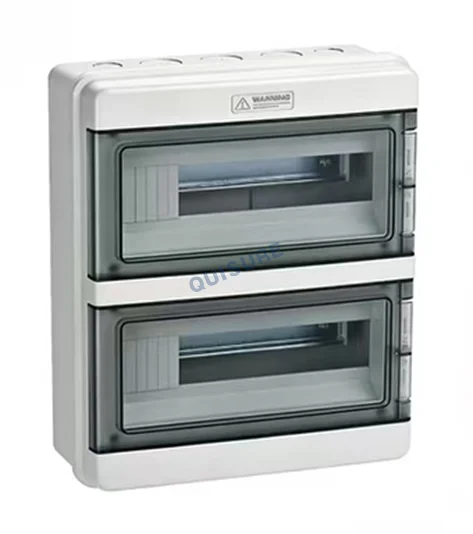

VDB-C Series Waterproof Distribution Box, VOZWEI
Material: PC

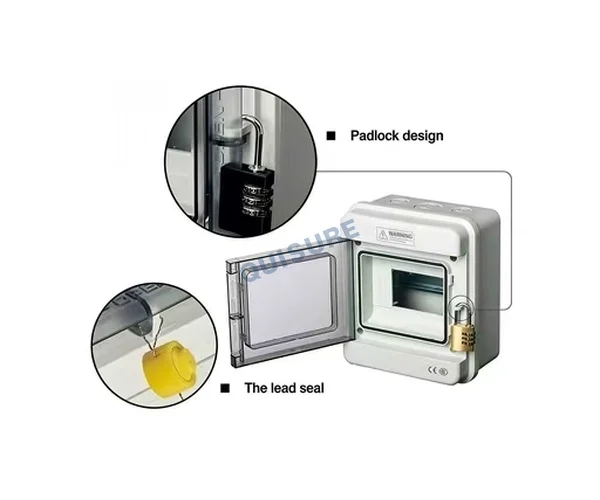

Structure: Waterproof enclosed structure with lead seal design and padlock design
IP rating: IP65/IP66
Ways: 4~36 ways
Standards: IEC60529, EN60309
Features
- Made of high-quality PC material with high strength and good durability.
- Waterproof enclosed structure, effectively rainproof, waterproof and dustproof.
- Equipped with padlock design to improve usage safety and anti-theft performance.
- IP65/IP66 dual protection grade, suitable for various outdoor harsh environments.
- Built-in standard DIN rail for easy installation of breakers.
- Complies with IEC60529 and EN60309 international standards.
- 4 ~ 36 circuit options to meet different application requirements.
Technical parameters
| VDB-C Series Model | Ways | Dimension (mm) |

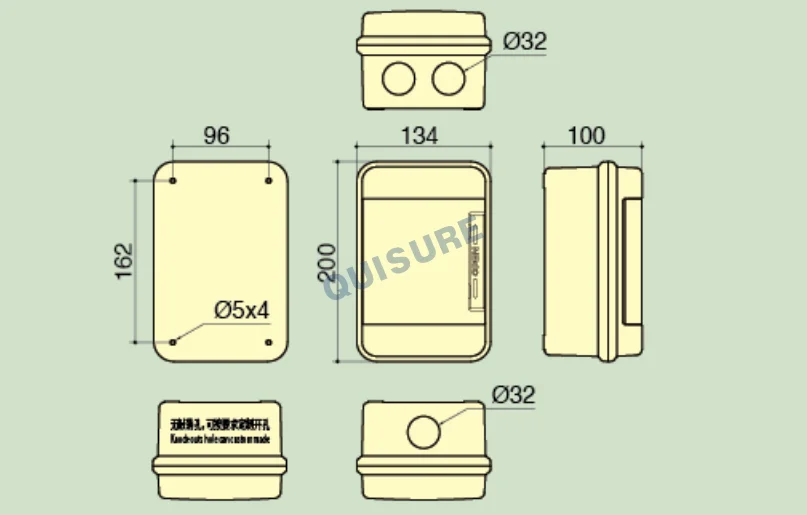

| VDB-C-1504C | 4-way | 200 × 134 × 100 |
| VDB-C-1506C | 6-way | 200 × 172 × 110 |
| VDB-C-1509C | 9-way | 200 × 226 × 110 |

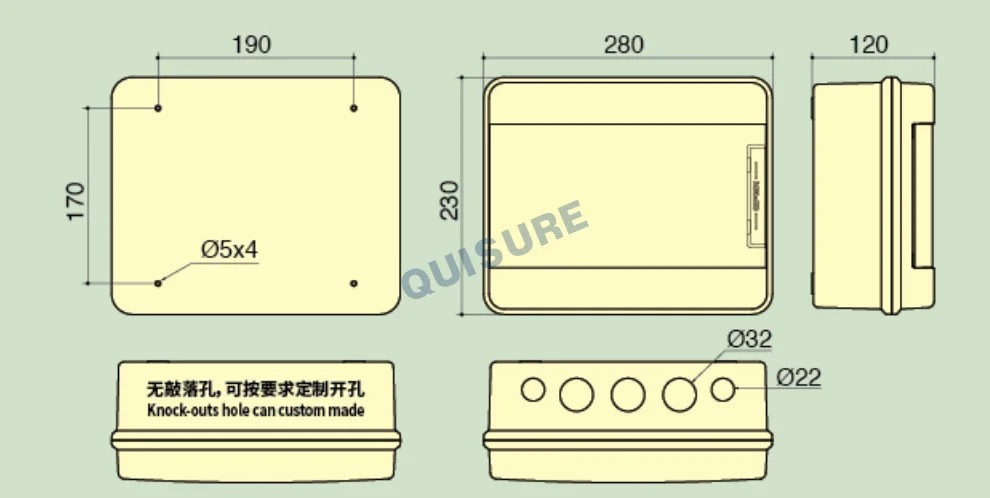

| VDB-C-1512C | 12-way | 230 × 280 × 120 |

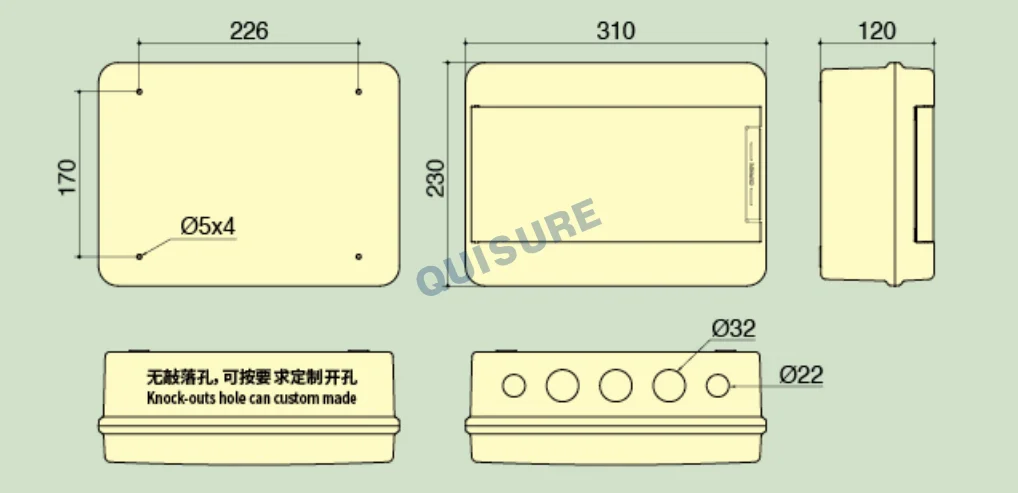

| VDB-C-1514C | 14-way | 230 × 310 × 120 |
| VDB-C-1516C | 16-way | 230 × 352 × 120 |

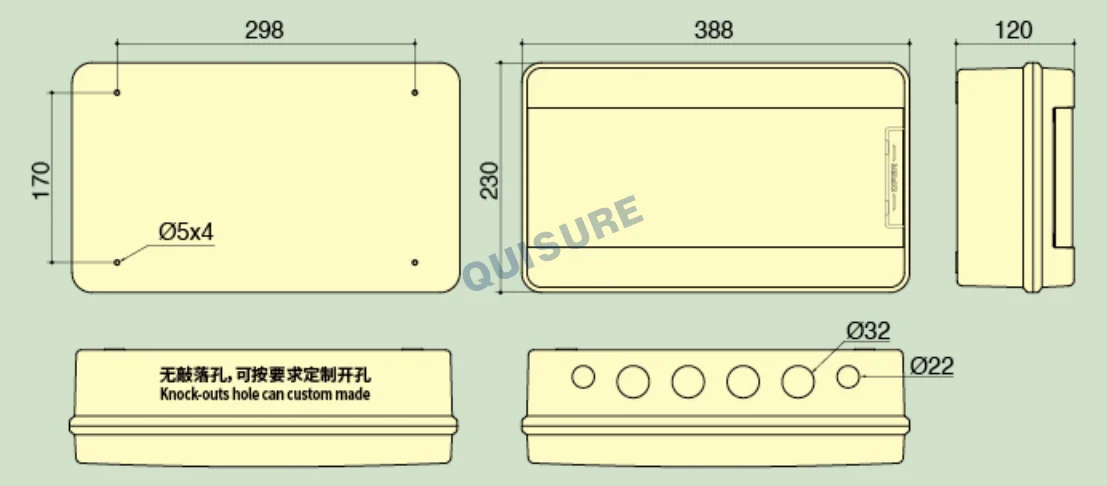

| VDB-C-1518C | 18-way | 230 × 388 × 120 |
| VDB-C-1524C | 24-way | 393 × 280 × 120 |
| VDB-C-1528C | 28-way | 393 × 310 × 120 |
| VDB-C-1532C | 32-way | 393 × 352 × 120 |
| VDB-C-1536C | 36-way | 393 × 388 × 120 |
VDB-C-1504C

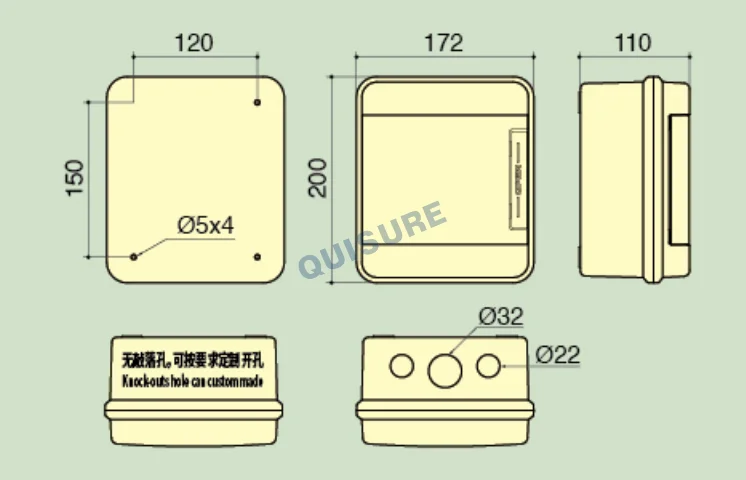

VDB-C-1506C
<

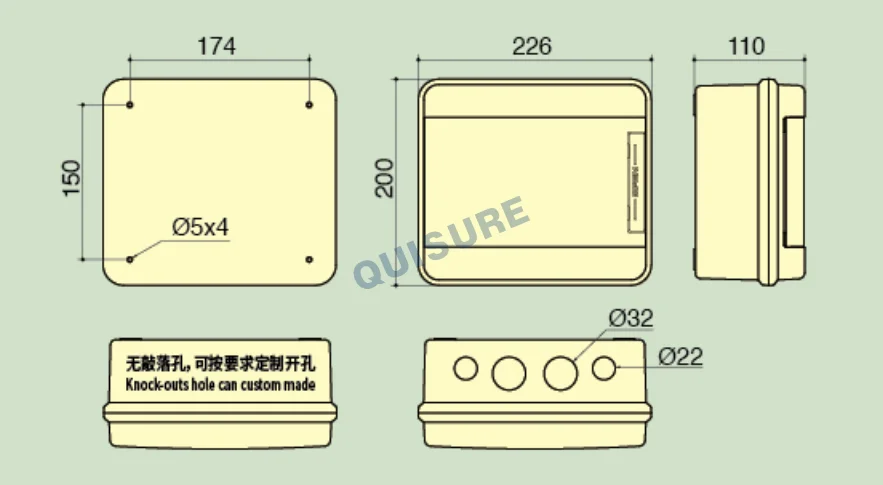

VDB-C-1509C
<
VDB-C-1512C
<
VDB-C-1514C
<

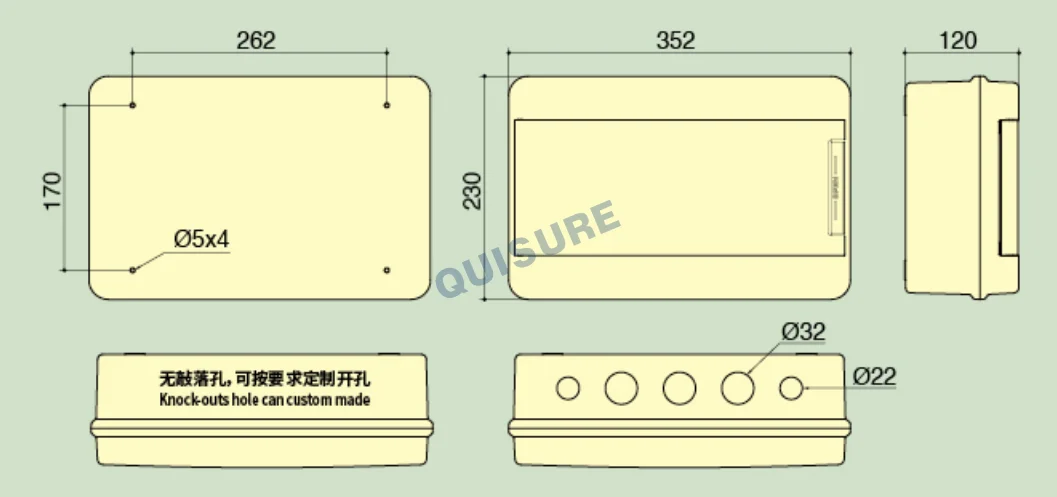

VDB-C-1516C
<
VDB-C-1518C
<

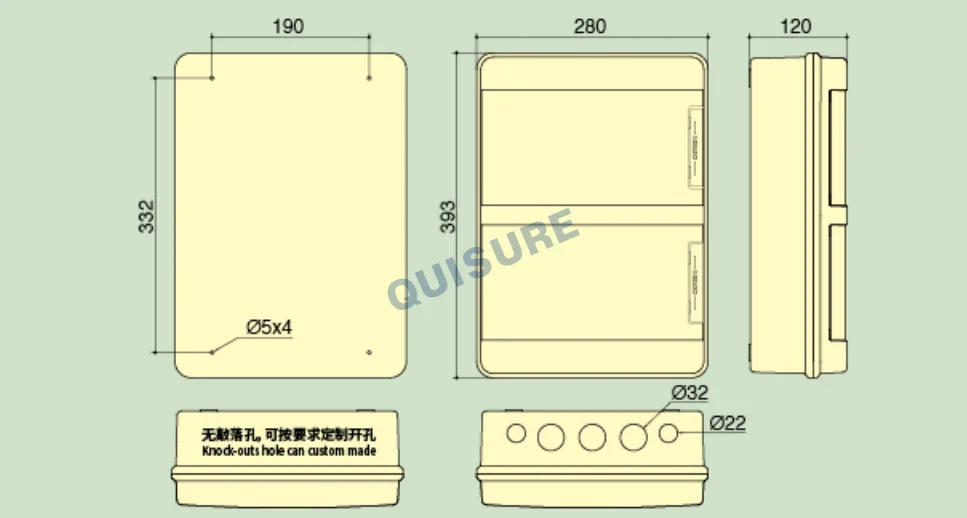

VDB-C-1524C
<

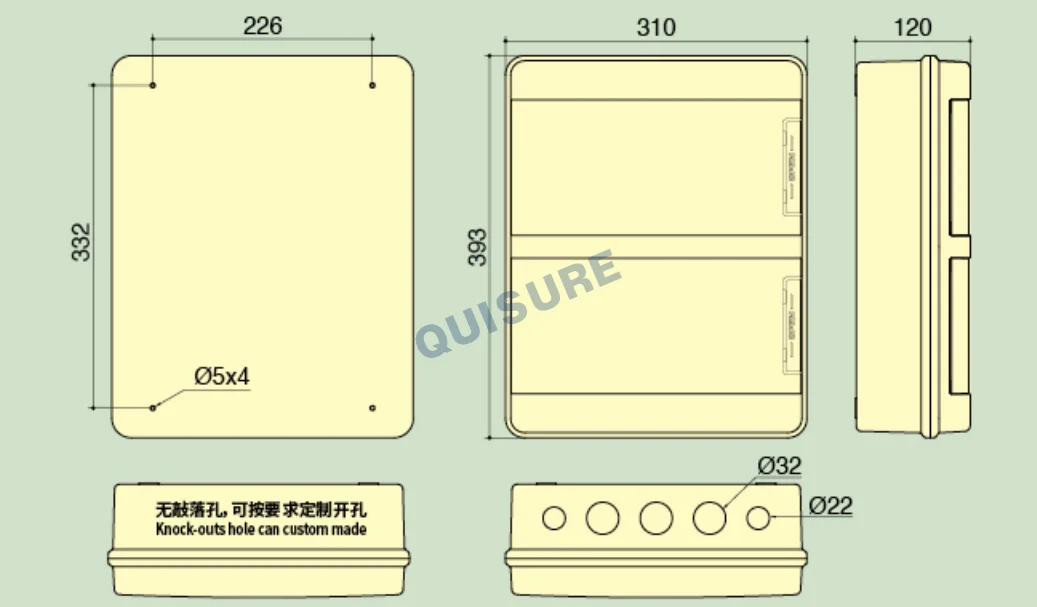

VDB-C-1528C
<

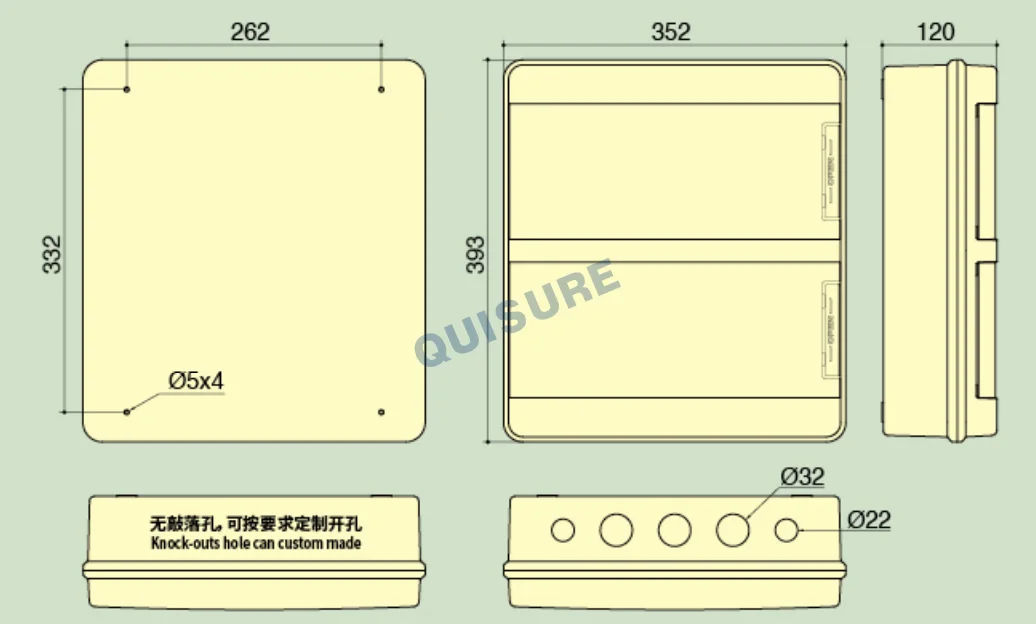

VDB-C-1532C
<

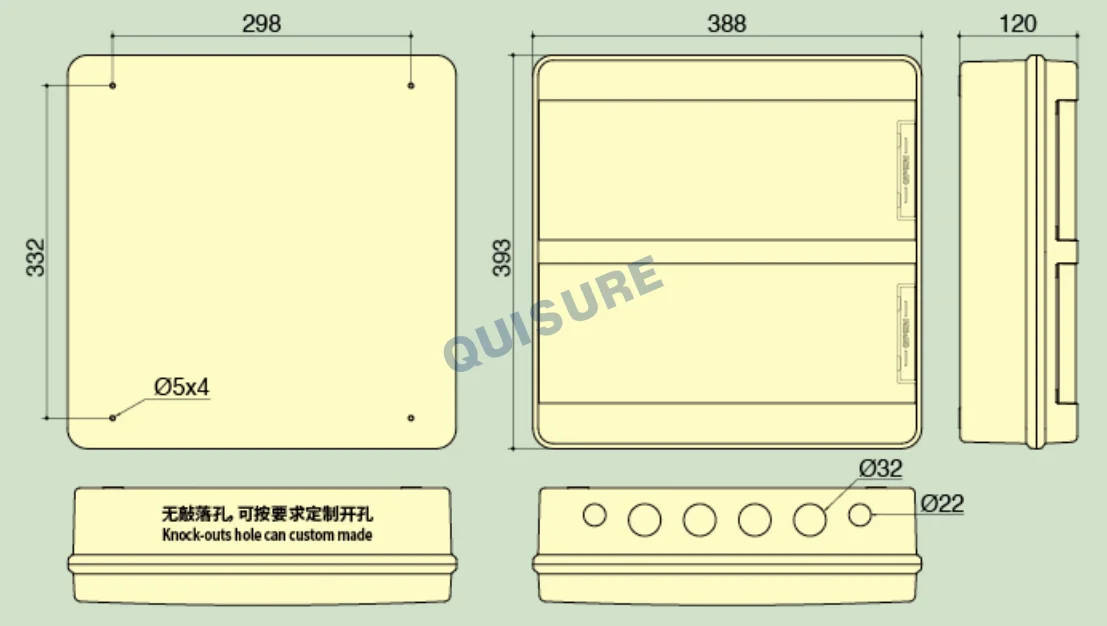

VDB-C-1536C
<
