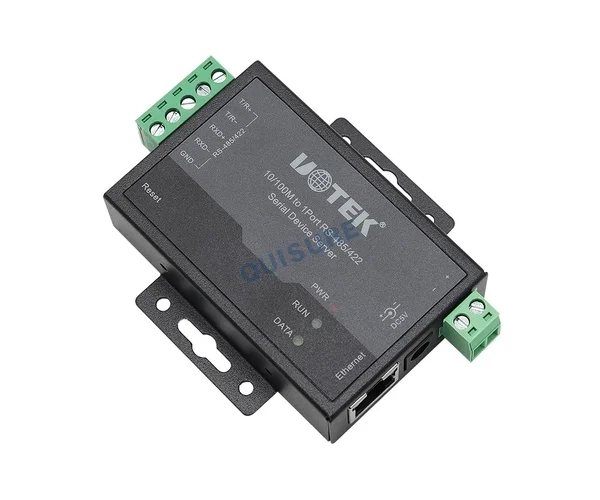

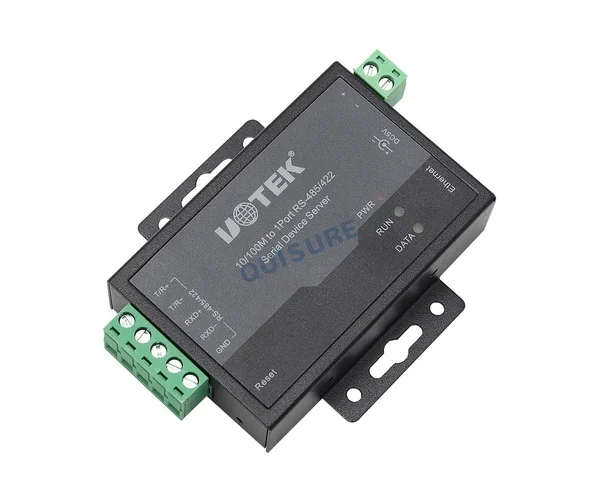

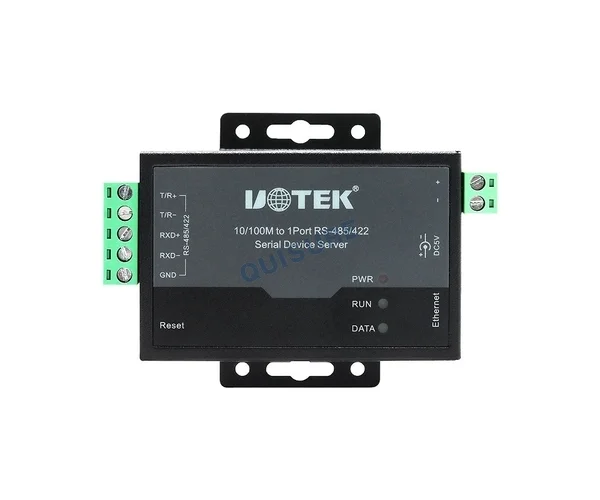

UT-6801BMT, Serial Server, UTEK

1 port RS-485/422,1 port 10/100M RJ-45

LED indicator: PWR, RUN, DATA

Protocol: ARP, IP, ICMP, UDP, TCP, HTTP, DHCP, MODBUS

Power input: 5-12VDC

Max. input power consumption: 0.5W

Baud rate: 300-921,600bps

Operating temp: -40~85°C

Features

Supports 1 RS-485/422 serial port for remote control
Supports 1 10/100Base-T(x) Ethernet port
Supports Reset button for restoring factory settings
RS485/RS422 port provides T/R+, T/R-, RXD+, RXD-
Supports MCP, VCOM virtual serial port
Supports ±4KV ESD protection for serial port, 1.5KVAC isolation protection for Ethernet port
Supports heartbeat and registration packet functions
Supports Web firmware upgrade

Interface
Power Interface	1×DC jack, 1×2Pin 5.08 terminal, with reverse polarity protection
Ethernet Interface	1×RJ45, 1×10/100Base-T(x)
Serial Interface	1×5Pin 5.08 terminal
LED Indicators	PWR (Power), RUN (Operation), DATA (Serial indicator)
Button	1×Factory Reset button
Power Requirement
Input Voltage	DC 5–12V
Power Consumption
Max. Power Input	0.5W
Mechanical Characteristics
Enclosure	IP30 protection rating
Net Weight	136g
Installation	Wall-mount installation
Dimensions (L×W×H)	79mm×72mm×21mm (excluding mounting)
Transmission Distance
RS-485/422	1200m
Operating Environment
Storage Temperature	-40~85℃
Operating Temperature	-40~85℃
Relative Humidity	5%~95% (Non-condensing)
Supported Protocols
Protocols	ARP, IP, ICMP, UDP, TCP, HTTP, DHCP, MODBUS
Operating Mode
Mode	VCOM, MCP, TCP Server, TCP Client, UDP Client, Modbus TCP Server, Modbus TCP Client
Serial Parameters
Interface Type	RS-485, RS-422
Baud Rate	300–921600bps
Parity	None, Odd, Even
Data Bits	5, 6, 7, 8
Stop Bits	1, 2
Certifications
EMC	EN 55032/24
EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC61000-4-2 ESD ±4KV contact, ±8KV air
	IEC61000-4-3 RS 3V/m
	IEC61000-4-4 EFT Power 1KV, Signal 0.5KV
	IEC61000-4-6 CS 3V/m
