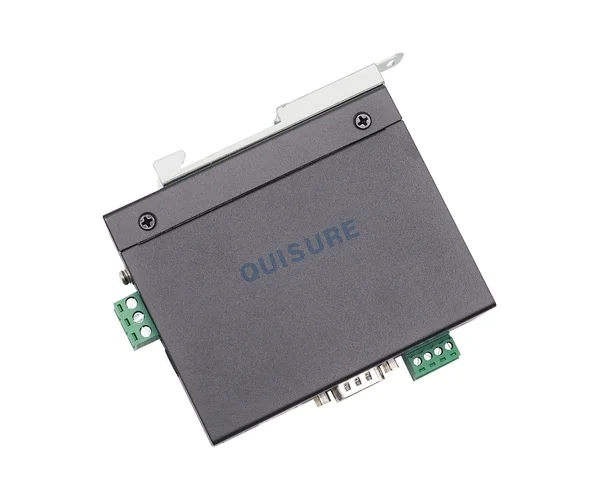

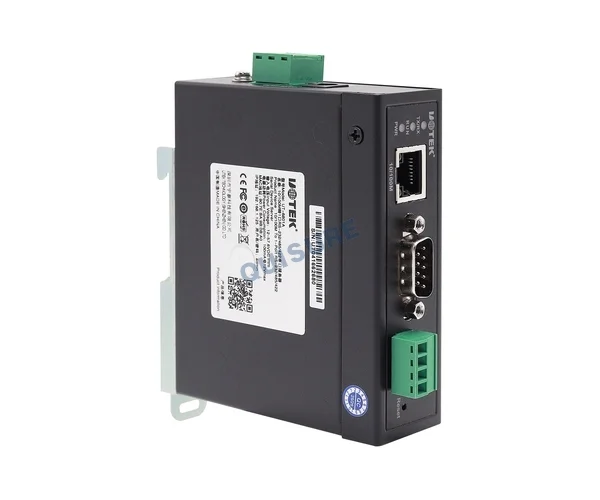

UT-6801A, Serial Server, UTEK
1 port RS-232/485/422,1 port 10/100M RJ-45
LED indicator: PWR, RUN, DATA
Protocol: ARP, IP, ICMP, UDP, TCP, HTTP, DHCP, MODBUS
Working mode: VCOM, MCP, TCP Server, TCP Client, UDP Client,
Modbus TCP Server, Modbus TCP Client
Power input: 12-48VDC
Max. input power consumption: 1.2W
Baud rate:: 300-921,600bps
Operating temp: -40~85°C
Features
- Supports 1 RS-232/485/422 serial port for remote control
- Supports 1 10/100Base-T(x) Ethernet port
- Supports Reset button for restoring factory settings
- RS232 port provides 5 signals: RXD, TXD, RTS, CTS, GND
- RS485/RS422 port provides T/R+, T/R-, R+, R-
- Supports MCP, VCOM virtual serial ports
- Supports ±6KV ESD protection for serial port and 1.5KVAC isolation for Ethernet port
- Supports MODBUS master/slave multiple connections
- Supports Web configuration (real-time effective) and VistaComs PC configuration tool
- Supports heartbeat and registration packet functions
- Supports Web firmware upgrade
Specifications
|
Interface |
|
|
Power Interface |
1×DC jack, 1×3Pin 5.08 terminal block, with reverse polarity protection |
|
Ethernet Interface |
1×RJ45, 1×10/100Base-T(x) |
|
Serial Interface |
1×DB9 male (RS232), 1×4Pin 3.81 terminal (RS485/RS422) three-in-one |
|
LED Indicators |
PWR (Power), RUN (Operation), DATA1 (Serial indicator) |
|
Button |
1×Factory Reset button |
|
Power Requirement |
|
|
Input Voltage |
DC 12–48V |
|
Power Consumption |
|
|
Max. Power Input |
1.2W |
|
Mechanical Characteristics |
|
|
Enclosure |
IP30 protection rating |
|
Net Weight |
248g |
|
Installation |
DIN-rail mounting |
|
Dimensions (L×W×H) |
100mm×80mm×30mm (excluding mounting) |
|
Transmission Distance |
|
|
RS-232 |
15m |
|
RS-485/422 |
1200m |
|
Operating Environment |
|
|
Storage Temperature |
-40~85℃ |
|
Operating Temperature |
-40~85℃ |
|
Relative Humidity |
5%~95% (Non-condensing) |
|
Supported Protocols |
|
|
Protocols |
ARP, IP, ICMP, UDP, TCP, HTTP, DHCP, MODBUS, etc. |
|
Operating Mode |
|
|
Mode |
VCOM, MCP, TCP Server, TCP Client, UDP Client, Modbus TCP Server, Modbus TCP Client |
|
Serial Parameters |
|
|
Interface Type |
RS-232, RS-485, RS-422 |
|
Baud Rate |
300–921600bps |
|
Parity |
None, Odd, Even |
|
Data Bits |
5, 6, 7, 8 |
|
Stop Bits |
1, 2 |
|
Certifications |
|
|
EMC |
EN 55032/24 |
|
EMI |
CISPR 32, FCC Part 15B Class A |
|
EMS |
IEC61000-4-2 ESD ±6KV contact, ±8KV air IEC61000-4-3 RS 3V/m IEC61000-4-4 EFT Power 2KV, Signal 1KV IEC61000-4-5 Surge Power 2KV, Signal 1KV IEC61000-4-6 CS 3V/m |
