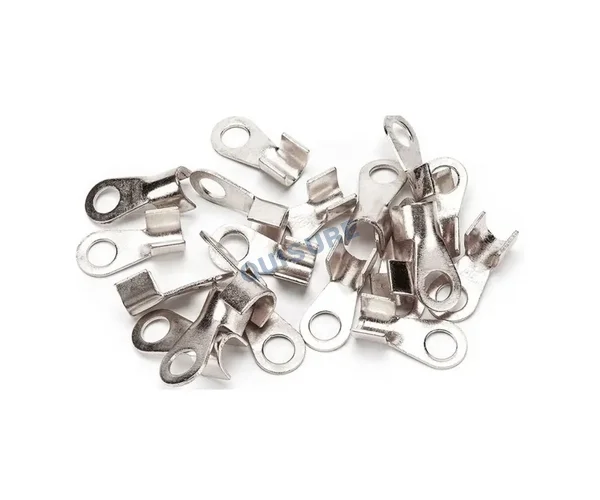

OT Series Open-Type Crimp Terminal, QuiSure
Material: Pure copper, tin-plated
Structure: Open-type crimp
Stud size: 4.9 ~ 16.2 mm
Tube inner diameter: 4 ~ 21 mm
Overall length: 14.5 ~ 20 mm
Features
- Pure copper with tin-plated surface, high conductivity and corrosion resistance.
- Open structure, convenient installation and flexible wiring.
- Complete specifications to meet different current requirements.
- Stable crimping performance, reliable connection and long service life.
Technical parameters
Model | Φ(mm) Mounting Hole | L (mm) Overall Length | H (mm) Height | R (mm) Radius | R1 (mm) Radius | A (mm) Thickness |
OT-10A | 4.9 | 14.5 | 6 | 4.5 | 2 | 0.8 |
OT-20A | 6.2 | 17 | 7 | 5.5 | 2.5 | 1 |
OT-30A | 6.2 | 19 | 8.2 | 5.8 | 3.2 | 1.2 |
OT-40A | 6.2 | 19.5 | 9 | 6.2 | 3.5 | 1.2 |
OT-50A | 6.2 | 21.5 | 9 | 6.5 | 3.5 | 1.2 |
OT-60A | 8.2 | 23.5 | 10 | 6.5 | 3.5 | 1.2 |
OT-80A | 8.2 | 25 | 11 | 8 | 4.5 | 1.5 |
OT-100A | 8.2 | 29 | 12 | 8.5 | 5 | 1.5 |
OT-150A | 10.2 | 31 | 12 | 9 | 5.5 | 1.6 |
OT-200A | 10.2 | 33 | 14 | 10 | 6 | 1.7 |
OT-250A | 10.2 | 36 | 15.5 | 10.5 | 6.5 | 2 |
OT-300A | 12.2 | 40 | 16 | 11.5 | 7 | 2 |
OT-400A | 12.2 | 43 | 18 | 13 | 8 | 2.2 |
OT-500A | 14.2 | 46 | 20 | 14.5 | 8.5 | 2.4 |
OT-600A | 16.2 | 20 | 22 | 16 | 10.5 | 2.8 |
