XK-B Series Plastic's Boxes, APT

Degree of protection: IP65

Material: ABS (general), PC polycarbonate (custom-made)

Temperature range: -40℃～80℃（ABS） -50℃～120℃（PC）

Fire retardant rating: V0（ABS） V2（PC）

Product Description

Technical Parameters:

Seal ring	Silicone sponge rubber
Connection between the cover and the base	Four M6 nylon screws
Enclosure installation	There are two elliptical holes (≥Ø 4.2) at the bottom of the base designed for enclosure installation (installation hole dimension and hole pitch dimension line are engraved outside the base)
Internal component installation	Components will be directly installed on the cabinet cover; there are two fixing pins with holes at the bottom of the base, suitable for ST4.8X9.5-F self-tapping screw installation.
Material	ABS (general)	PC (customized)
Temperature range	-40 ℃ ~ +70 ℃	-50 ℃ ~ +115 ℃
Flame retardant rating	V₀	V₂
Protection class	IP65	IP65

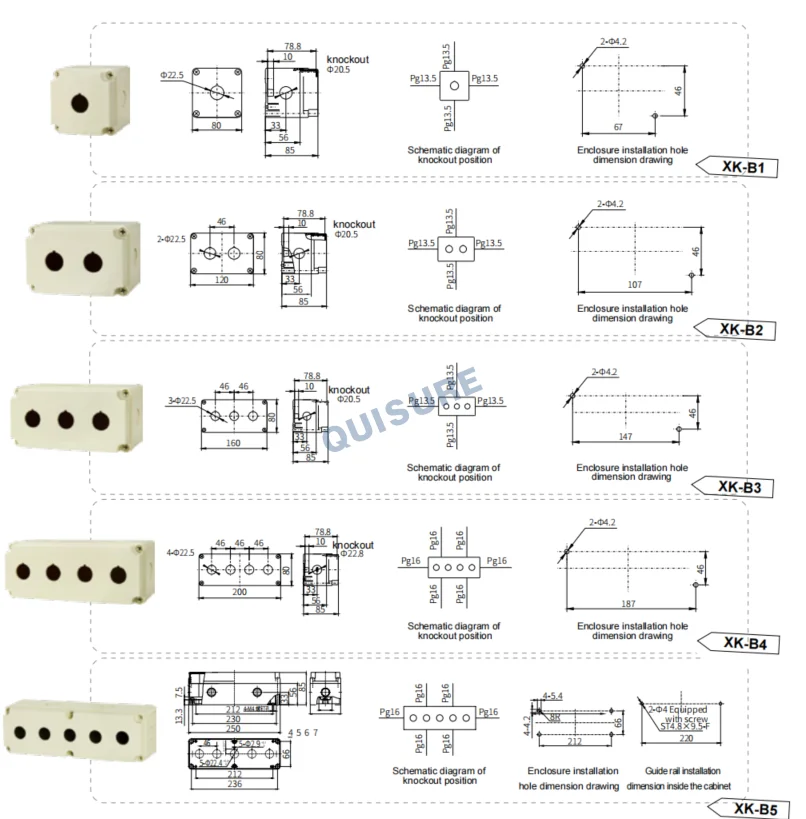

Outline and installation dimension
